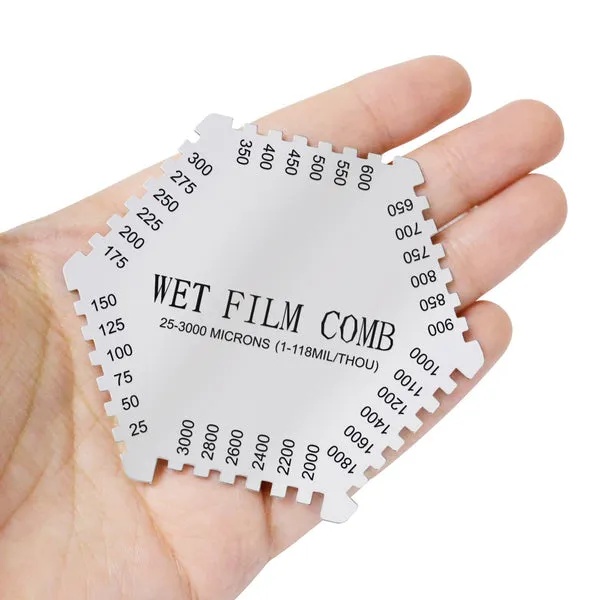

Wet Film Combs Micron Micrometer 25-3000µm, 1-118Mil Dual Scale

The Wet Film Comb Micrometer is an indispensable tool for accurately measuring the thickness of wet coatings, including paint, enamel, lacquer, adhesives, architectural coatings, varnish, and more. This versatile instrument is ideal for use in the chemical industry and other applications requiring precise coating measurements on smooth surfaces.

Complying with the standards GB/T1764-79, GB/T134522-92, and ISO2808-74, this dual-scale comb provides a measuring range of 25–3000µm (1–118mil), ensuring versatility for various coating applications.

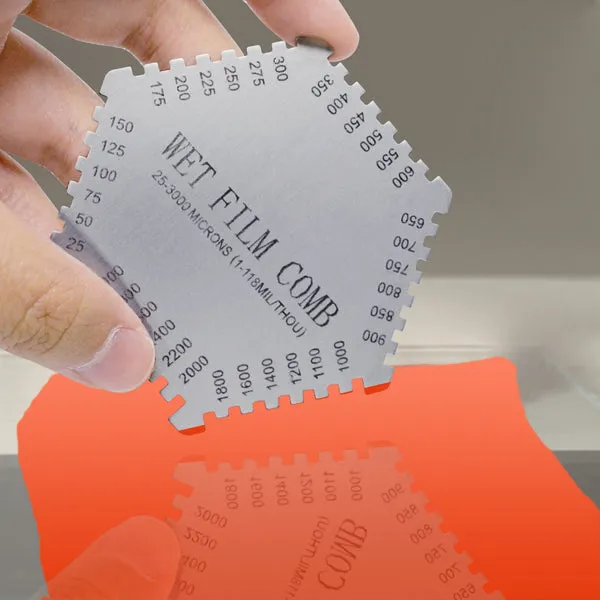

Measuring Procedure:

• Select the appropriate comb based on the approximate known thickness of the coating.
• Hold the comb perpendicular to the coated surface.
• Press the comb into the coating until it stands squarely on the substrate.
• The wet film thickness is determined by the highest coated step and the next (higher) uncoated step.

Specifications:

• Measuring Range: 25–3000μm (1–118mil)
• Values (μm): 25, 50, 75, 100, 125, 150, 175, 200, 225, 250, 275, 300, 350, 400, 450, 500, 550, 600, 650, 700, 750, 800, 850, 900, 1000, 1100, 1200, 1400, 1600, 1800, 2000, 2200, 2400, 2600, 2800, 3000
• Values (mil): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 31, 33, 35, 39, 43, 47, 55, 63, 71, 79, 87, 94, 102, 110, 118
