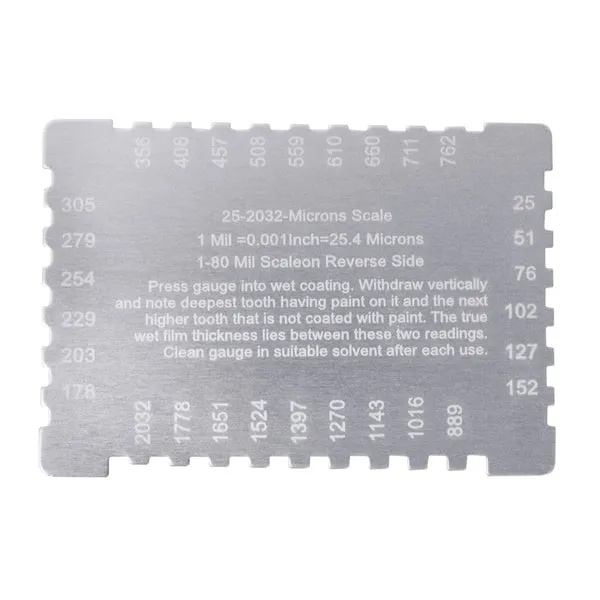

Wet Film Comb with 25-2032µm Microns and 1-80Mil Dual Scale

The Wet Film Comb is an essential tool for measuring the thickness of wet coatings such as paint, enamel, lacquer, adhesives, architectural coatings, varnish, and more. It is widely used in various industries, including chemical and color coatings, to ensure the correct application thickness on smooth surfaces.

This dual-scale comb adheres to the standards GB/T1764-79, GB/T134522-92, and ISO2808-74, offering precise measurement in both microns (25–2032µm) and mils (1–80mil). It is a reliable instrument for quality control and ensuring coating consistency.

Measuring Procedure:

• Select the appropriate comb based on the approximate known thickness of the coating.
• Hold the comb perpendicular to the coated surface.
• Press the comb into the coating until it stands squarely on the substrate.
• The wet film thickness is between the highest coated step and the next (higher) uncoated step.
• Clean the comb thoroughly after use to maintain accuracy.

Specifications:

• Measuring Range: 25–2032µm (1–80mil)
• Values (µm): 25, 51, 75, 102, 127, 152, 178, 203, 229, 254, 279, 305, 356, 406, 457, 508, 559, 610, 660, 711, 762, 889, 1016, 1143, 1270, 1397, 1524, 1651, 1778, 2032
• Values (mil): 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12, 14, 16, 18, 20, 22, 24, 26, 28, 30, 35, 40, 45, 50, 55, 60, 65, 70, 80
