Wall Detector Stud Finder for Positioning Hole and AC Live Cable Wires

The detector can be used to detect metals (iron and nonferrous metals), wood beams, and live cables buried in walls, ceilings, and floors, which are made of conventional concrete, ceramic tiles, wood panels, etc.

Features

• Center hole design for easy marking of the detected area
• 3 color indicator (Red, Yellow, and Green)
• Type C charging port with light charging indicator while charging and fully charged
• Battery strength indicator
• Buzzer alarm that can be turned off and on
• Automatic shutdown

Specifications

Maximum detection depth

• Metal Detection Mode
• Iron Metal: 12cm (4.72in)
• Non-Ferrous Metal (Copper): 10cm (3.93in)
• AC Live Wire/Cable Detection Mode
• Alternating Current: 5cm (1.97in)
• Single-strand copper wire (≥4mm²): 4cm (1.57in)
• Wood Detection Mode (Foreign body generally refers to wood material)
• Exact mode: 2cm (0.79in)
• Deep mode: 3.8cm (1.50in)

(Please note that the detection results can be influenced by various factors, including the material, size, and surface condition of the detected object. Furthermore, if the cable is not active, detection accuracy may be compromised.)

Working Humidity

• In Metal Mode: 0~85%RH
• In Foreign Body Mode: 0~60%RH
• In AC Mode: 0~30%RH

Other Specifications

• Operating Temperature: -10~50°C (14~122°F)
• Storage Temperature: -20~70°C (-4~158°F)
• Power Source: 3.7V 300mAH battery
• Continuous working time: About 2 hours

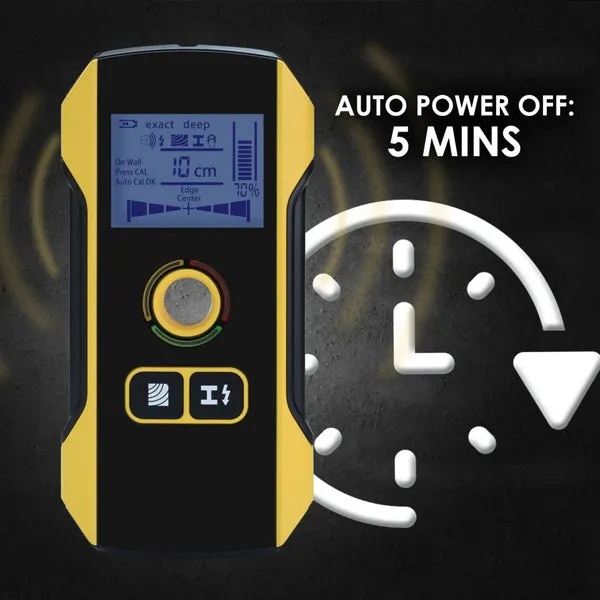

• Auto Power off: About 5min of no operation
• Dimension: 138 x 68 x 22mm (5.43 x 2.68 x 0.87in)
• Weight: approx. 122gms
