Vibration Meter with Piezoelectric Sensor for Displacement, Velocity, and Acceleration

This compact Vibration Tester is highly portable, lightweight, and convenient for use in various applications. It is specifically designed for measuring periodic motion, checking imbalance, and detecting deflection in rotating machinery. Its rugged construction ensures durability, making it suitable for long-term usage in industrial environments.

Features

• Simultaneously displays displacement, velocity, and acceleration parameters
• Compliant with ISO 2954 for periodic measurements, detecting out-of-balance, misalignment, and other mechanical faults in rotating machines

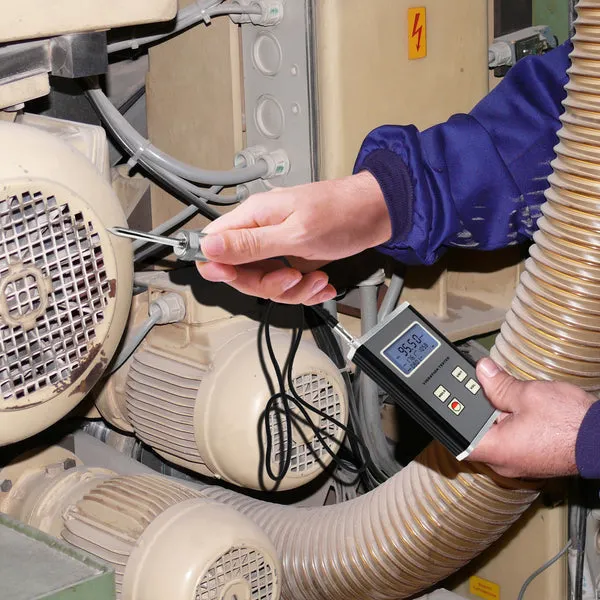

• Specially designed for easy on-site vibration measurement of rotating machinery for quality control, commissioning, and predictive maintenance
• Equipped with a high-quality accelerometer for accurate and repeatable measurements
• Bearing condition monitoring function included
• Digital LCD display with backlight for clear visibility
• Lightweight and easy to operate
• Wide frequency range (10Hz~10kHz) in acceleration mode
• Automatic power shut-off feature to conserve energy
• AC output socket for headphones and recording (Headphones not included)
• PC connectivity for statistics and printing via optional RS232C cable and software (not included)

Specifications

• Display: 4-digit LCD with backlight
• Sensor: Piezoelectric Transducer
• Accuracy: 5% of reading + 2 digits
• Measurement Range:
• Displacement: 0.001~4.000mm (Equivalent Peak-to-Peak: 0.04~160.0 mil)
• Acceleration: 0.1~400.0m/s² (Equivalent Peak: 0.3~1312ft/s²; 0.0~40g)
• Velocity: 0.01~400.0mm/s (True RMS: 0.004~16.00 inch/s)
• Frequency Range:
• Displacement: 10Hz~1kHz
• Acceleration: 10Hz~10kHz
• Velocity: 10Hz~1kHz
• Metric/Imperial Conversion: Supported
• Analogue Output: AC output 0~2.0V peak full scale (load resistance: above 10kΩ)
• PC Interface: RS232C (cable and software not included)
• Power Off: Manual or automatic power off enabled by user
• Operating Conditions:
• Temperature: 0~50°C
• Humidity: <90% RH
• Power Supply: 2 x 1.5V AA batteries
• Dimensions: 130 x 76 x 32mm
• Weight: 340g (excluding battery)
