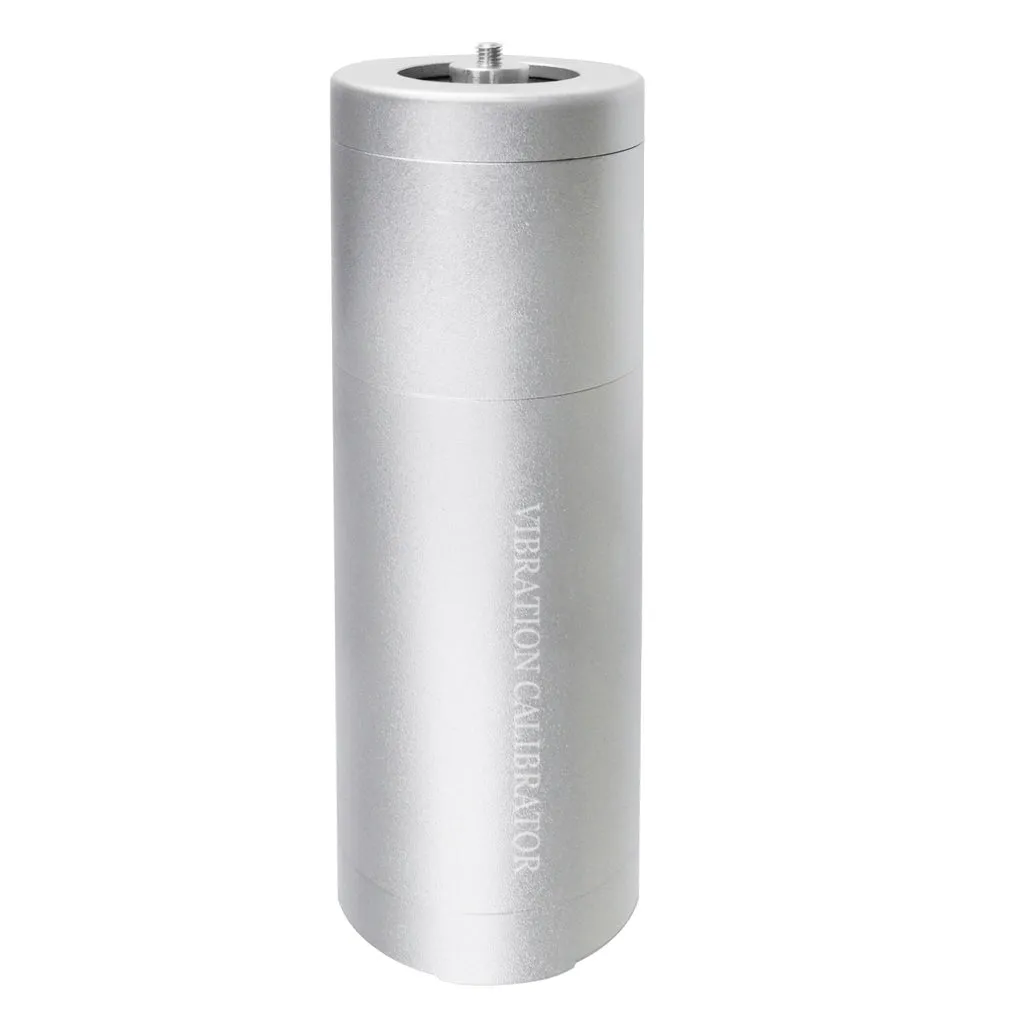

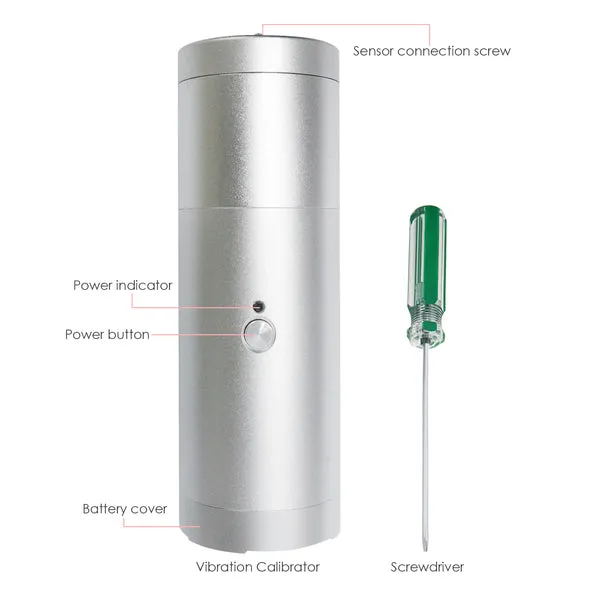

Vibration Calibrator Handheld Shaker with 159.2Hz Frequency

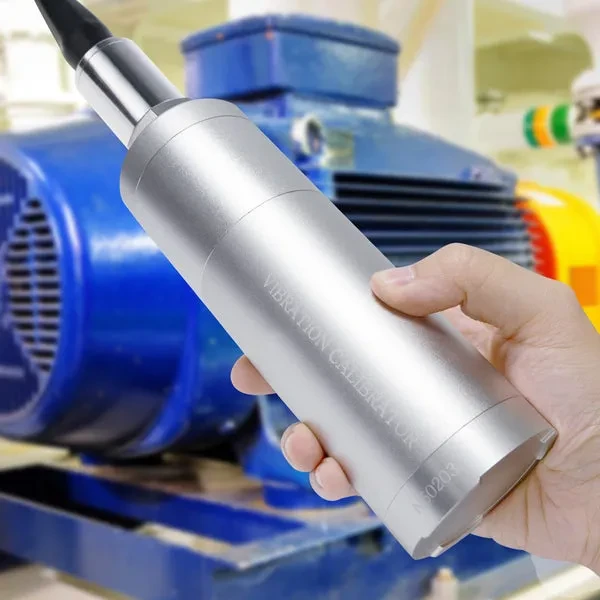

The Vibration Calibrator is a compact and portable handheld shaker, ideal for quick and reliable checking of accelerometers, vibration monitoring systems, and recording systems. It generates a known and controlled RMS vibration, making it perfect for verifying the accuracy of accelerometers weighing up to 150g.

Features

• CE-compliant and user-friendly design
• Lightweight and easy to carry

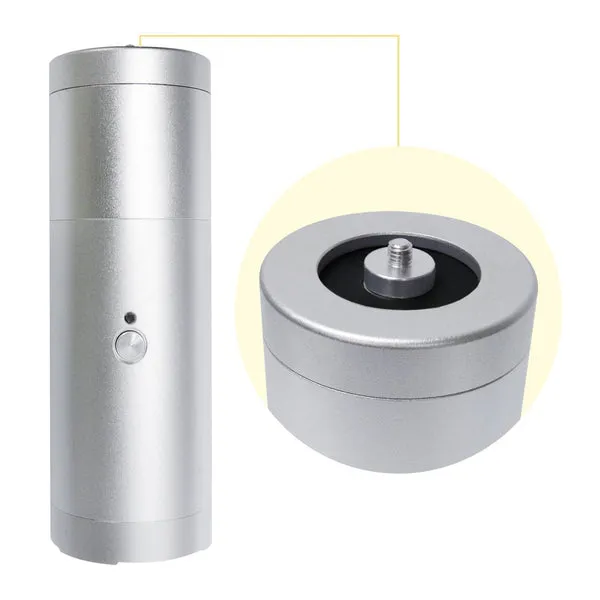

• Capable of driving vibration sensors up to 150g
• Supports vibration acceleration, velocity, and displacement measurements

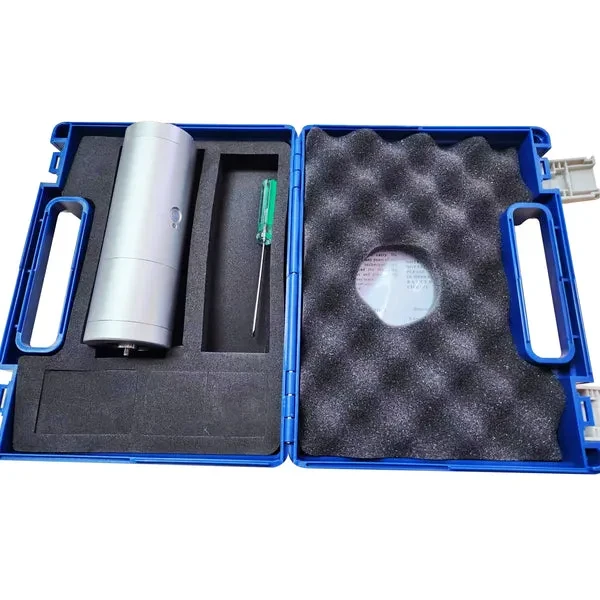

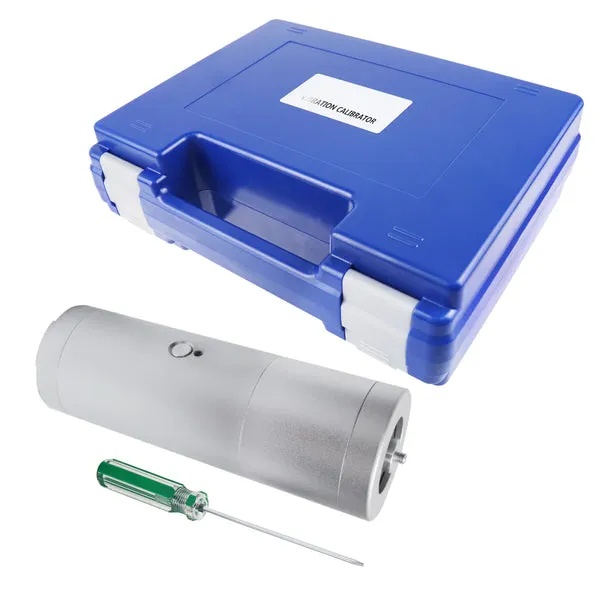

• Supplied with a carrying case for convenient handling and safe transport

Specifications

• Operating Frequency: 159.2Hz ±0.5%
• Acceleration Output: 14.14m/s² (Peak) ±3%
• Velocity Output: 10mm/s (RMS) ±3%
• Displacement Output: 28µm (Peak-Peak) ±4%
• Transverse Output: <5%
• Distortion: <3%
• Maximum Load: 150g
• Operating Temperature: -10~40°C
• Operating Humidity: 85% RH (non-condensing)
• Ramp-Up Time: <3 seconds

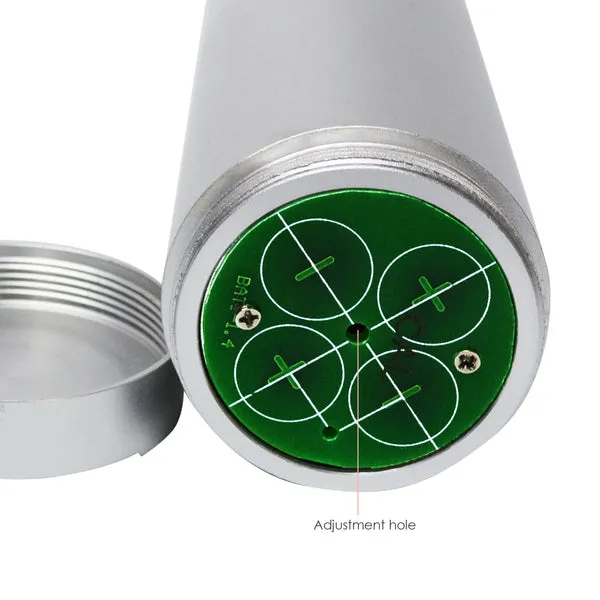

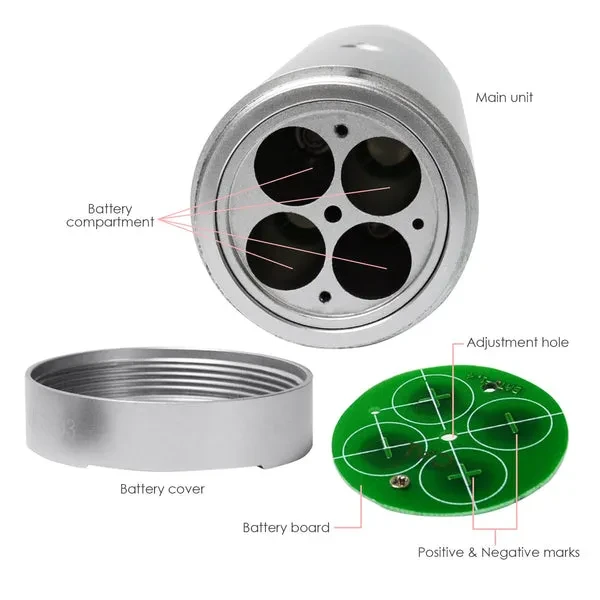

• Power Supply: 4 x 1.5V AA batteries

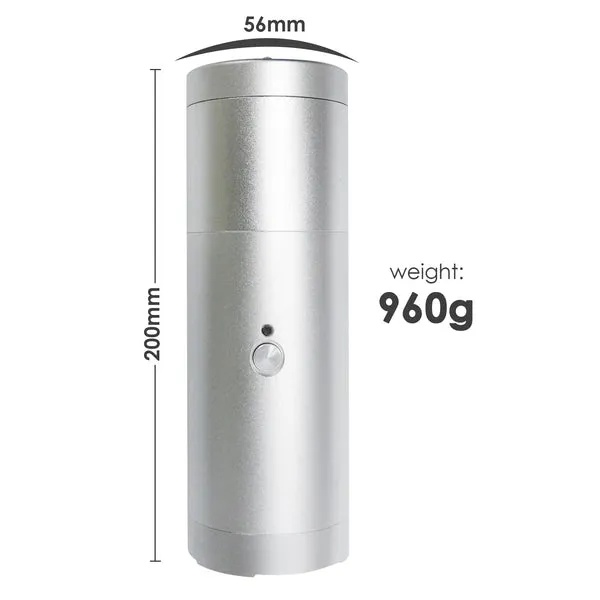

• Size: 56 x 200 mm
• Weight: 960g (including battery)
