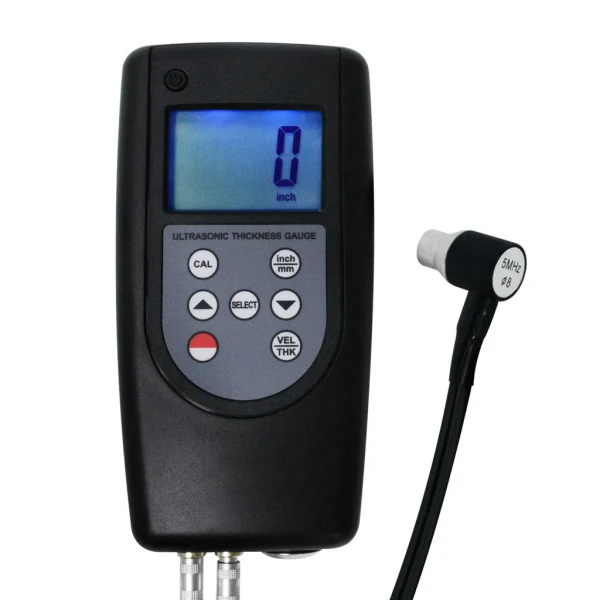

Ultrasonic Thickness Meter (0.75~400mm) Gauge Tester

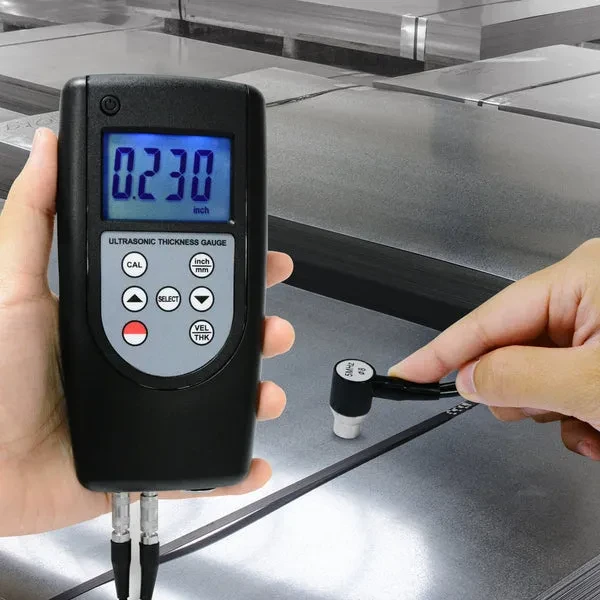

The ultrasonic thickness meter is a reliable tool for measuring thickness and detecting corrosion in various industrial applications. It’s designed for use in industries like petroleum, shipbuilding, power stations, and machine manufacturing, where it plays a crucial role in assessing the integrity of pressure vessels, chemical equipment, boilers, and oil storage tanks.

Features

• Incorporates the latest high-performance and low-power-consumption microprocessor technology
• Coupling symbol indication during measurement

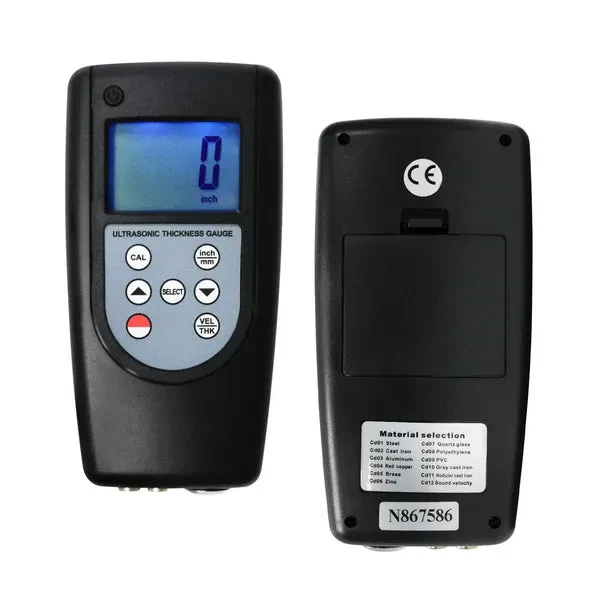

• Automatically stores material codes and sound velocity values for ease of use

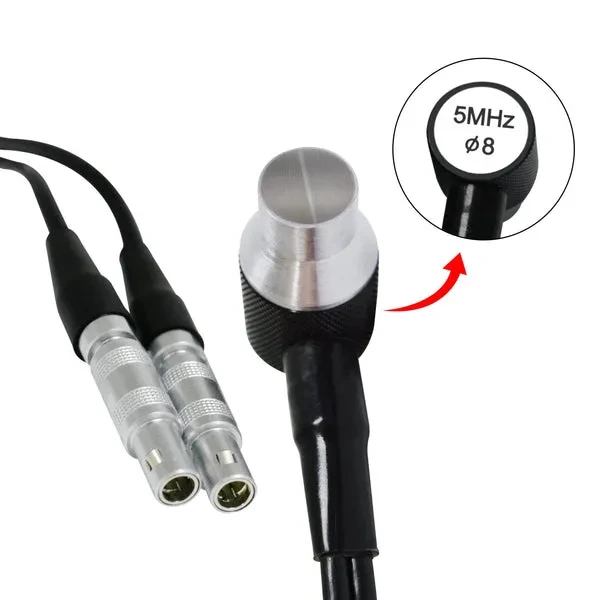

• High power emission and broad receiving sensitivity, allowing it to match probes of different frequencies
• Capable of measuring rough surfaces and cast iron, applicable in a wide range of industries

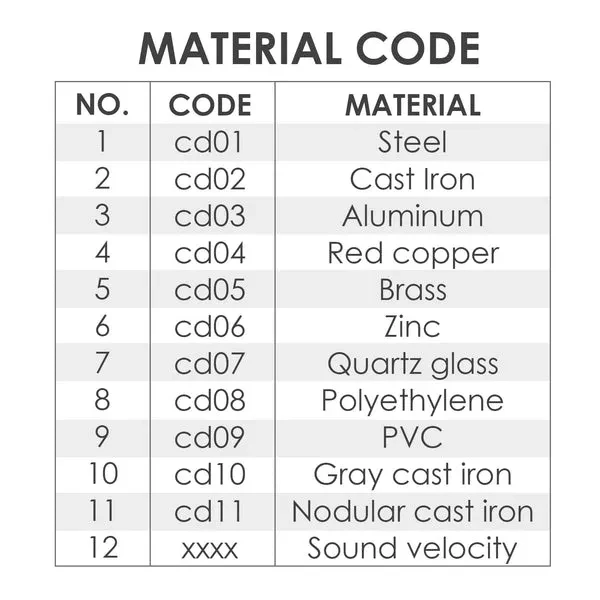

• Measures the thickness of various materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron
• Bidirectional measurement: thickness is measurable with known velocity, and velocity is measurable with known thickness
• Utilizes exclusive MICRO-COMPUTER LSI circuit and crystal time base for high accuracy and fast measurement
• Automatic power-off function to conserve battery life
• Battery strength indicator for monitoring power levels
• USB data output for PC connectivity (cable and software not included)
• Bluetooth data output option available (adapter and software not included)

Specifications

• Display: LCD
• Operating Principle: Ultrasonic
• Measuring Range: 0.75~400mm (45# steel) depending on the probe

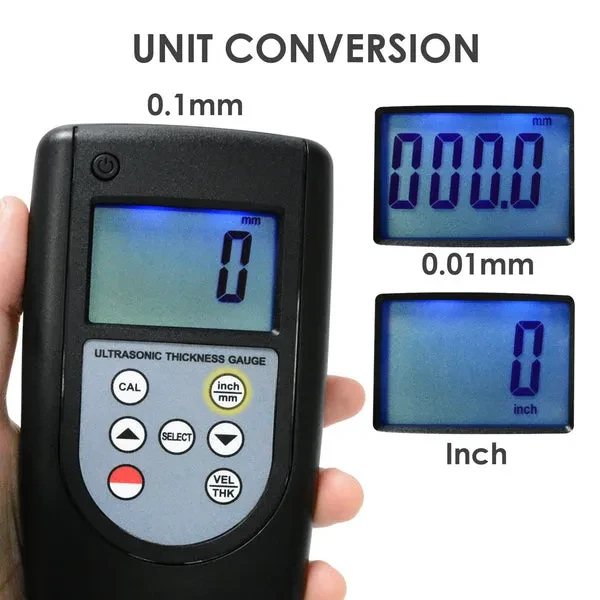

• Resolution: 0.1mm / 0.01mm / 0.001 inch
• Accuracy: ±(0.5%n + 0.1)
• Lower Limit of Pipes: Φ15×2.0mm, Φ20×3.0mm (determined by transducer)

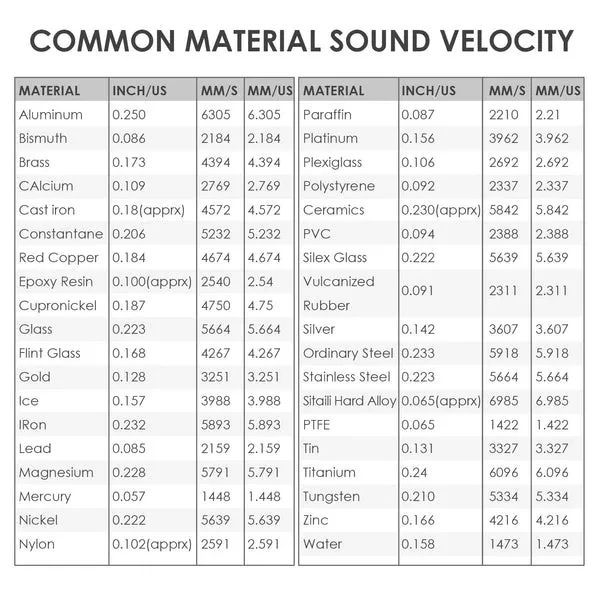

• Sound Velocity: 1000~9999 m/s
• Operating Conditions:
  • Temperature: 0~40°C
  • Humidity: <80% RH
• Power Supply: 4 x 1.5V AAA batteries

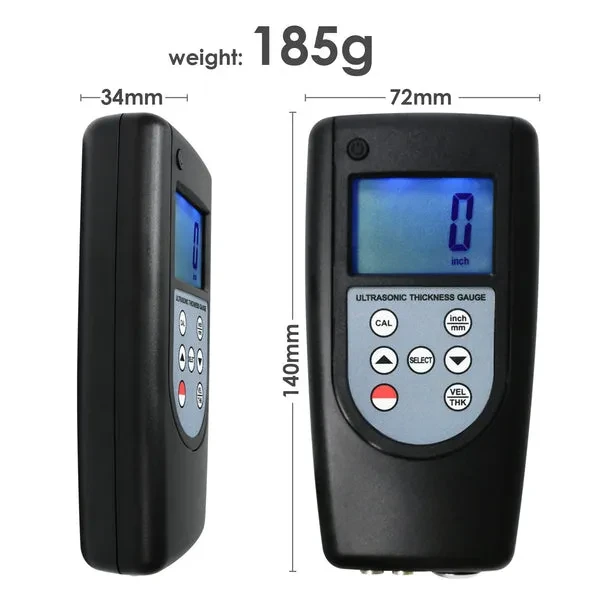

• Dimensions: 140 x 72 x 34mm
• Weight: approx. 185g (batteries excluded)
