Ultrasonic Thickness Gauge for Steel, Aluminum, and Glass Fiber

This Ultrasonic Thickness Gauge is designed to accurately measure the thickness of metal and other good conductors or materials using ultrasonic technology. It can also measure the thickness of concrete slabs by leveraging the distribution characteristics of the electromagnetic field. This portable and convenient instrument provides precise measurements, making it an essential tool for various applications.

Features

• Measurement Range: 0.75-500mm
• Working Principle: Ultrasonic (Pulse-Echo)
• Capable of measuring metal thickness covered with a coating (2-25mm)
• Internal Memory for up to 100,000 data sets
• Advanced Auto Probe Zero Calibration
• Data storage for later analysis
• Easy calibration anytime and anywhere
• Threshold Limit Alarm Function
• Accuracy: 0.1/0.01mm to 0.01/0.001 inch
• Probe Connection / Coupling Indicator
• Extra-long standby time: 200 hours
• Icon-style menu for easy navigation
• Multiple data display modes
• Scroll bars indicate different functions
• Supports up to 1000 files with 1000 data points per file
• Statistic Function:
  • Online statistics: Max, Min, Standard Deviation
  • Document statistics: Max, Min, Average, Mean Square Error

Specifications

• Principle: Ultrasonic (Pulse-Echo/Echo-Echo)
• Measuring Range:
  • Normal: 0.75-40mm
  • Coating: 2-25mm
• Resolution: 0.1mm (>100mm) / 0.01mm (<100mm)
• Accuracy: ±(0.5%H+0.01)mm

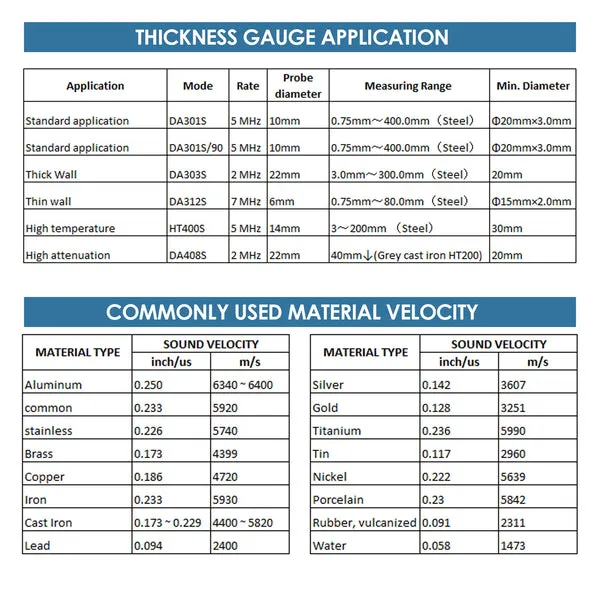

• Velocity: 1000~9999m/s
• Calibration:
  • Auto Sound-Velocity-Calibration
  • Auto Probe Zeroing Calibration
• Pulse: 150V Negative Pulse
• Receiver Gain: High/Low/Auto
• Bandwidth: 0.5-15MHz
• Indicators:
  • Probe Connection Indicator
  • Coupling Indicator
• Display: LCD, High-Contrast 128×64
• Thickness Logging: 1000 data sets/group, linear
• Update Rate:
  • Single Point: 5 times/s
  • Scan Mode: 25 times/s
• Input/Output:
  • Probe Cable: LEMO 00 (C5) x2
  • Communication: USB
• Languages: Chinese / English
• Units: mm/inch
• Measurement Result Display: Online Statistic/Velocity
• Alarm: Threshold Acousto-optical Alarm
• Memory: 1000 groups of files
• USB Storage: Convenient to read thickness values
• Operating Environment:
  • Temperature: -20°C~70°C
  • Humidity: 5%~90%
• Power Source: 4 x 1.5V AAA batteries (200 hours working time)
• Dimensions: 165×82×30 mm
• Weight: 250g
