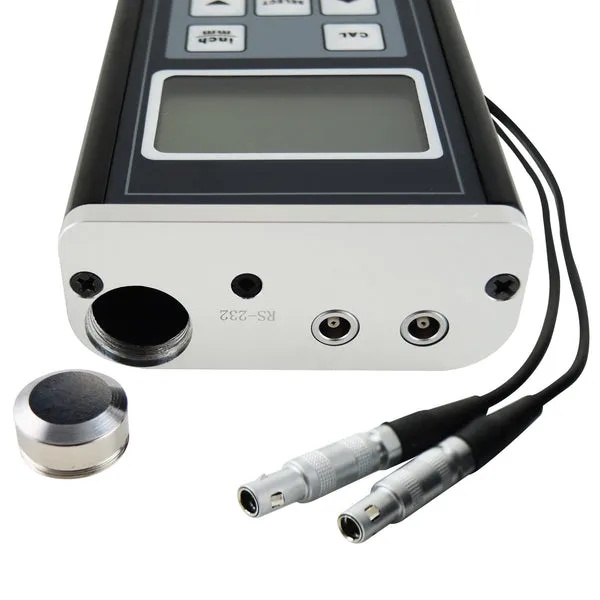

Ultrasonic Thickness Gauge for Measuring Aluminum, Steel, Cast Iron, and Pipe

This handheld ultrasonic thickness gauge features a robust metal case and offers a test range from 0.9 to 400mm. It’s ideal for measuring thickness and detecting corrosion in various industrial applications, including pressure vessels, chemical equipment, boilers, oil storage tanks, and more. This gauge is widely used in industries such as petroleum, shipbuilding, power stations, and machine manufacturing. It utilizes the latest high-performance and low-power consumption microprocessor technology, making it suitable for measuring the thickness of materials like steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron.

Features

• Equipped with exclusive Micro-computer LSI circuit and crystal time base for high accuracy measurements
• High power emission and broad receiving sensitivity, allowing compatibility with probes of different frequencies
• Capable of measuring rough surfaces, including cast iron
• Bidirectional measurement: thickness is measurable with known velocity, and velocity is measurable with known thickness
• Automatic memory of material codes and sound velocity values for convenient usage
• Automatic power-off function to conserve battery life
• PC connectivity for data statistics and printing via RS232C interface (cable and software not included)
• CE marked, conforming to essential health and safety requirements of European Directives

Specifications

• Display: Digital 4-digit LCD
• Operating Principle: Ultrasonic
• Range: 0.9~400mm (45# steel)
• Resolution: 0.1mm / 0.01mm / 0.001 inch
• Accuracy: ±1 (0.5%n + 0.1)
• Sound Velocity: 1000~9000 m/s
• Power Off: Auto and manual power off
• Battery Indicator: Low battery
• Power Supply: 2 x 1.5V AA (UM-3) batteries (not included)
• Operating Conditions:
  • Temperature: 0~40°C
  • Humidity: <80% RH
• Case Material: Aluminum alloy
• Dimensions: 130 x 76 x 32mm
• Weight: Approx. 340g (excluding batteries)
