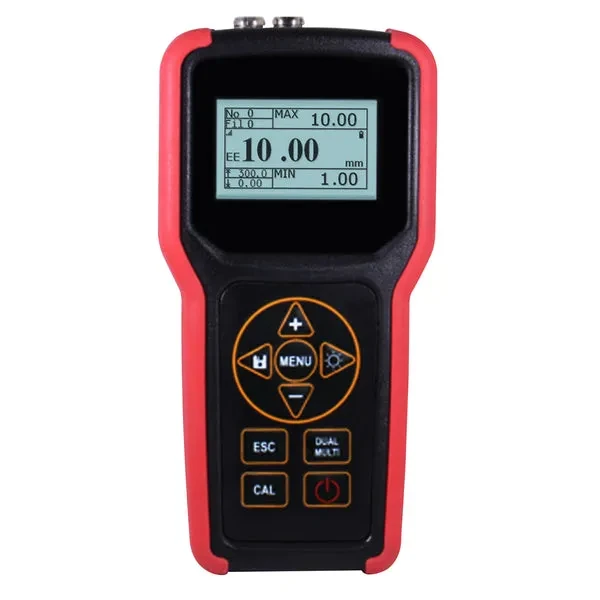

Ultrasonic Gauge for Metal Thickness Measurement

This Ultrasonic Thickness Gauge from the Upad X Series is an excellent choice for measuring the thickness of various materials, including steel, cast steel, aluminum, plastic, glass, and other good conductors of ultrasound. It features advanced Auto Probe Zero Calibration and Echo-Echo mode, providing more accurate measurements and improving production efficiency.

Features

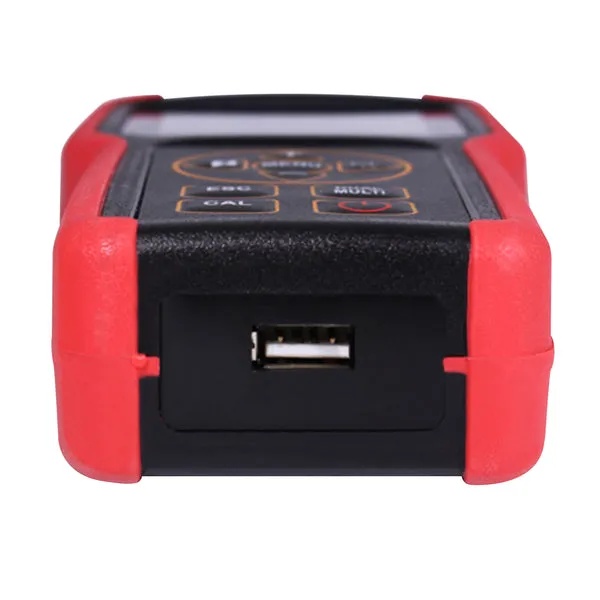

• USB for storage – plug and play
• Convenient to read thickness values
• Massive data memory: stores up to 100,000 data points
• 1000 data sets
• Statistic function
• Online statistics: Max, Min, Standard Deviation
• Document statistics: Max, Min, Average, Mean Square Error

Specifications

• Working Principle: Ultrasonic (ultrasonic pulse echo / echo echo)
• Detection Range:
  • P-E mode: 0.75-500mm
  • E-E mode Coat: 1-2mm
  • Undercoats: 2-25mm
• Velocity: 1000~9999m/s, Preset for 5 common materials
• Resolution: 0.1mm (>100mm) / 0.01mm (<100mm)

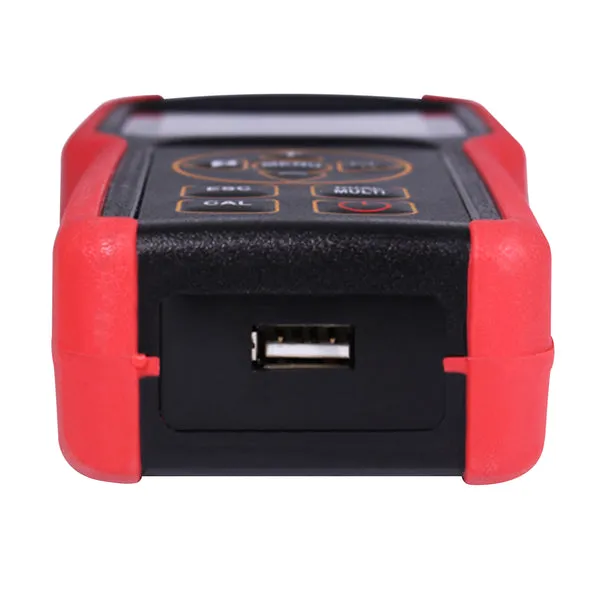

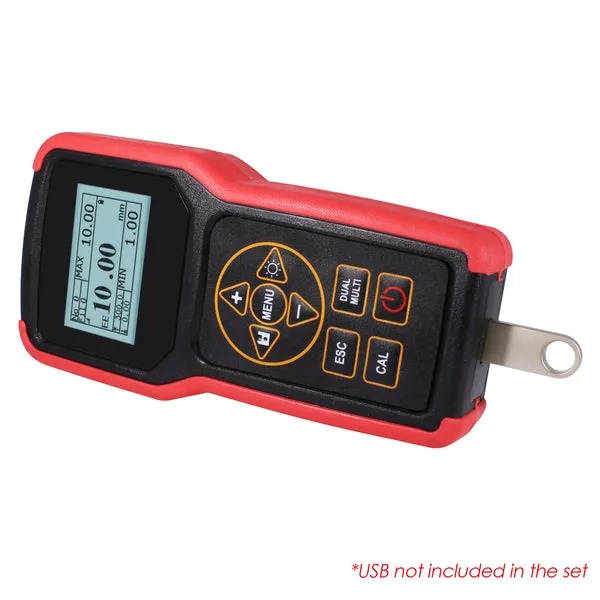

• USB Storage: Allows connection for convenient reading of thickness values
• Indicator: ±(0.5%H+0.01)mm
• Velocity Route Correction: Automatic

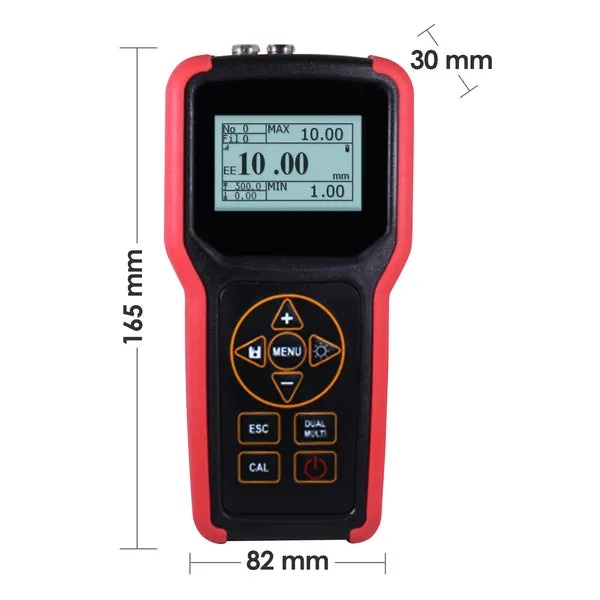

• Appearance Size: 165x82x30 mm
• Weight: 250g (including battery)
• Gain: High / low / automatic
• Refresh Rate:
  • Single point mode: 5 times/second
  • Scan mode: 25 times/second
