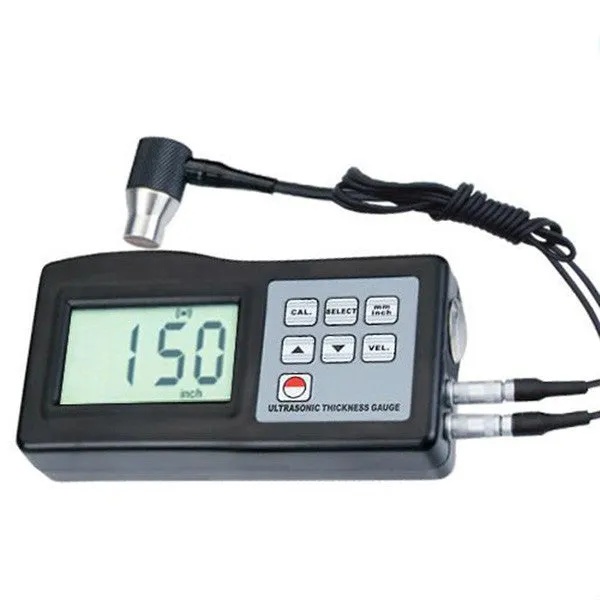

Ultrasonic Digital Thickness Meter for Metal and Non-Metal (1.00-200.00mm)

This handheld ultrasonic thickness gauge is designed to measure the thickness of both metallic and non-metallic materials, including aluminum, titanium, plastics, ceramics, glass, rubber, and other good ultrasonic wave conductors. It offers one of the widest measurement ranges available, from 1.0 to 200.00 mm, with high accuracy. Equipped with high power emission and broad receiving sensitivity, this gauge can adapt to different probe frequencies, making it suitable for measuring rough surfaces and even cast iron.

Features

• CE approved, conforming to European health and safety directives
• Measures ultra-thin materials from 1 mm thickness
• Uses a microcomputer LSI circuit and crystal time base for high accuracy
• Capable of measuring the thickness of metal pipes
• High power emission and broad receiving sensitivity allow compatibility with various probe frequencies, facilitating measurement of rough surfaces, including cast iron
• Applicable to a wide range of materials: steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, nodular cast iron, and more
• Instant digital results displayed clearly on an easy-to-read LCD screen with no guessing or errors

Specifications

• Operating Principle: Ultrasonic
• Display: 4 digits, 10 mm LCD
• Measuring Method: Ultrasonic pulse echo
• Measuring Range: 1.0–200.00 mm (0.039–7.87 inches)
• Resolution: 0.1 mm / 0.001 inch
• Accuracy: ±(0.5% of reading + 0.1 mm)
• Sound Velocity: 500 – 9000 m/s
• Diameter of Sensor: 8 mm (0.31 inches)
• Length of Sensor: 90 cm (35 inches)
• Weight of Sensor: Approx. 40 g
