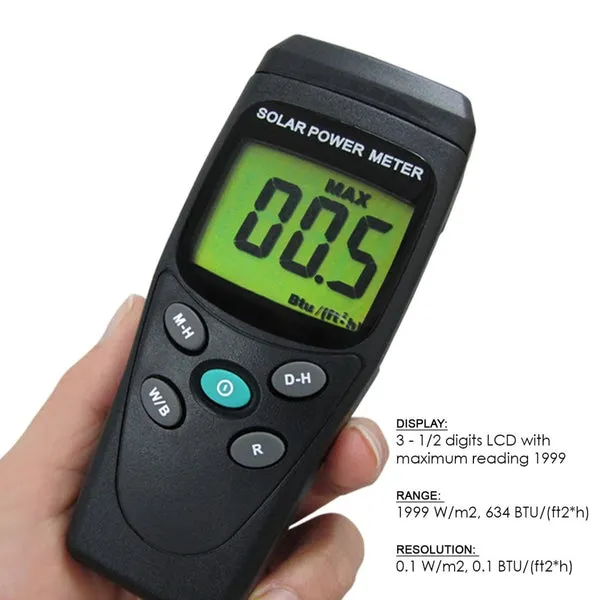

Solar Power Meter for Radiation Energy Measurement (BTU/(ft2*h) / W/m2)

The Solar Power Meter is a highly precise device designed to measure the power per unit area of incident solar radiation. Equipped with a high-precision light sensor, it provides accurate and fast measurements with just a simple power-on, making it one of the best easy-to-read handheld meters. This device is ideal for measuring the solar characteristics of glass, film, or other transparent materials.

Features

• High precision measurement of all visible light sources
• Selectable units: W/m² or BTU/(ft²*h)
• Stable for prolonged use
• Measures car headlight light intensity
• Simple and convenient to use with clear data display
• EMC compliant, tested for compatibility according to EN61326 (1997) + A1 (1998) + A2 (2001)

Specifications

• Display: 3-1/2 digit LCD with maximum reading 1999
• Range: 1999 W/m², 634 BTU/(ft²*h)
• Resolution: 0.1 W/m², 0.1 BTU/(ft²*h)
• Accuracy: ±10 W/m² [±3 BTU/(ft²*h)] or ±5%, whichever is greater in sunlight
• Temperature-induced error: ±0.38 W/m²/°C [±0.12 BTU/(ft²*h)/°C] from 25°C
• Overload Indication: LCD displays “OL”
• Sampling Time: approx. 0.25 seconds
• Battery: 1 x 9V Battery (included)
• Battery Life: approx. 100 hours
• Operating Temperature: 5 ~ 40°C (41 ~ 104°F)
• Operating Humidity: < 80% R.H.
• Storage Temperature: -10 ~ 60°C (14 ~ 140°F)
• Storage Humidity: < 70% R.H.
• Dimensions: approx. 132 (L) x 60 (W) x 38 (H) mm (5.19 x 2.36 x 1.49 inch)
• Weight: approx. 150g (5.3 oz)
