Durometer, Hardness Meter, Instruments

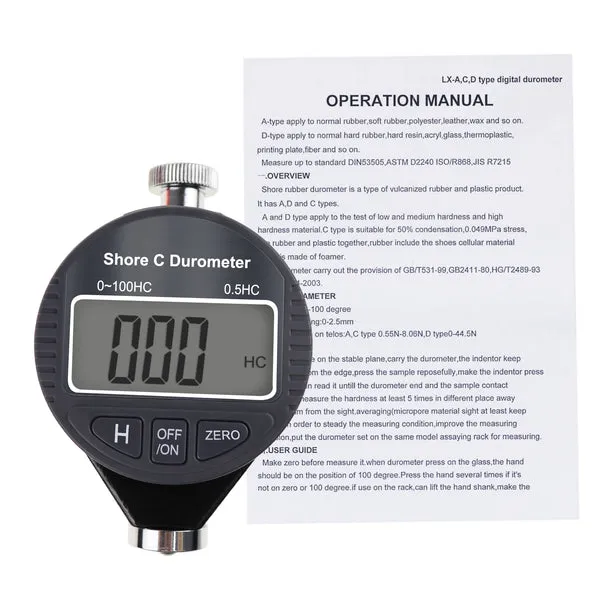

Shore C Digital Hardness Meter for Soft Rubber, 0~100HC
Availability:
In stock
$110.29 $132.48
In stock
This Shore C Digital Hardness Tester measures the hardness of soft rubber, printer rollers, and other elastomer materials.
Features
- Wide measuring range with high resolution and ease of operation
- Hold Function, holds measured value during the test
- Zero setting feature
- Dial Scale: 1-100HC
- High-grade probe with 0~2.5mm pointer journey
- Compact, lightweight, and easily transportable
- 35º included angle with 0.5HC resolution
- Ultra-accurate reading with no guessing errors
- Large, easy-to-read LCD
- Battery operated
- Conforms to ISO 868-1986 & ISO 7619 international standards
- Complies with GB/T 531.1-2008 standard
- Maintenance-free digital display
- CE Marked, conforming to European health & safety requirements
Specifications
- Resolution: 0.5HC
- Force: 0.55~8.06N
- Outside pressure: 1kg
- Pressure needle top cone angle: 30°
- Needle length: 2.5mm
- Sharp cone point: φ0.1mm diameter
- Dial Scale: 0~100HC
- Accuracy: ±1HC
- On/Off Switch
- Power supply: 1 x 1.5V cell battery
