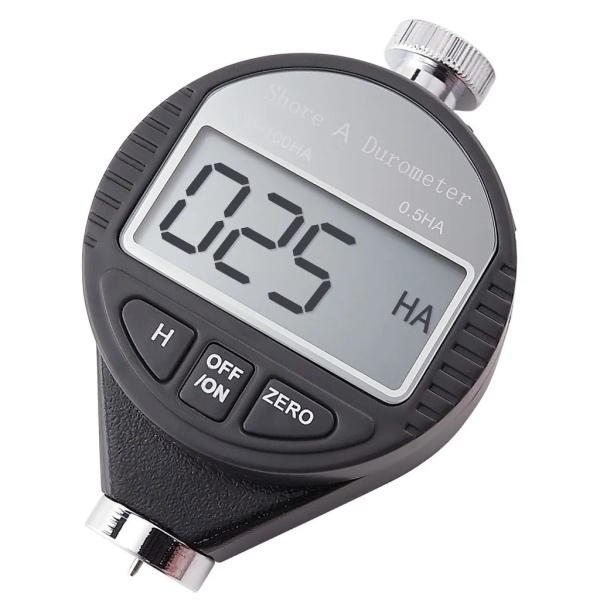

Shore A Digital Hardness Meter Durometer (0~100HA) for Rubber and Tire

This Shore A Digital Hardness Tester is designed to measure the hardness of rubber and plastics with precision and reliability. Ideal for testing the medium penetration hardness of materials such as rubber, plastic, leather, multi-grease, wax, and more, this tester ensures accurate and repeatable results.

Note: For optimal measurement results, it is recommended to use sample test probes with a minimum thickness of 6mm. If the sample is less than 6mm, additional layers can be added (up to 3 layers). For values above 90 HA, it is suggested to use a type D durometer.

Features

• Wide measuring range with high resolution and ease of operation
• Hold Function, holds measured value in test
• Zero setting
• Dial Scale is 1-100HA
• High-grade probe with 0-2.5mm Pointer journey
• Small in dimension, lightweight, and can easily be transported
• 35º included angle with 0.5HA resolution
• Delivers ultra-accurate reading with no guessing error

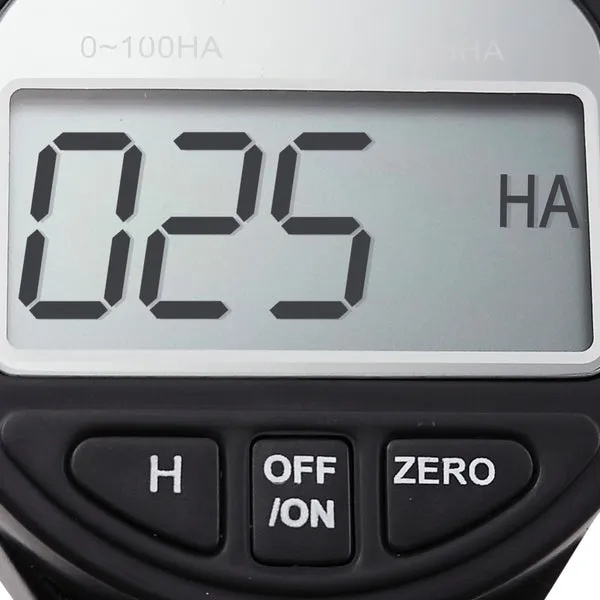

• Easy-to-read large LCD display
• Battery operated
• Passed and conforms with ISO 868-1986 & ISO 7619 international standards
• Complies with GB/T 531.1-2008 standard
• Maintenance-free digital display
• CE Marking, conforms with European health & safety requirements

Specifications

• Resolution: 0.5HA
• Total measure force: 8.1N
• Outside pressure: 1kg
• Pressure needle top cone angle: 35°
• Needle length: 2.5mm
• Flat cone point: φ0.79mm diameter
• Dial Scale: 0~100HA
• On/Off Switch
