Separate Surface Roughness Tester Profilometer (Ra, Rq, Rz, Rt)

This small, lightweight, and easy-to-use surface tester measures multiple parameters such as Ra, Rz, Rq, and Rt. It features four wave filtering methods: RC, PC-RC, GAUSS, and D-P. For enhanced functionality, you can connect the tester to a computer for statistics, printing, and analysis by adding the optional USB cable and CD software interface to your purchase.

Application: Widely used in production sites to measure the surface roughness of various machinery-processed parts and calculate corresponding parameters based on selected measuring conditions.

Features

• Supports four standards: ISO, DIN, ANSI, and JIS
• Highly sophisticated inductance sensor
• Manual or automatic shutdown
• Separated sensor allows easy measurement of hard-to-reach areas
• Can memorize 7 groups of measurement results and conditions for later use or download to PC
• Metric / Imperial Conversion
• Battery strength indicator
• USB data output for PC connection (cable and software not included in the set)
• Bluetooth data output option (adapter and software not included in the set)

Specifications

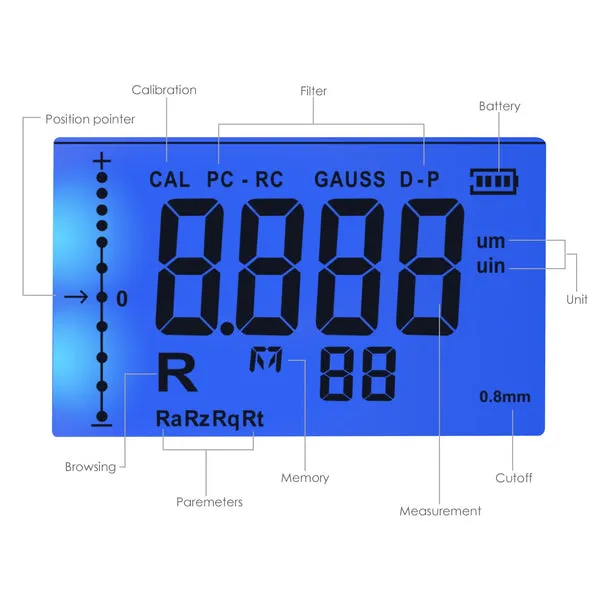

• Display: 4 digits, 10 mm LCD with blue backlight
• Standards: GB/T6062, ISO4287, DIN4768, JIS B, ANSI46.1
• Measuring Range:
  • Ra, Rq: 0.025~10µm / 1.000~400.0µinch
  • Rz, Rt: 0.020~100µm / 0.780~4000µinch
• Accuracy: ≤±10%
• Fluctuation of Display Value: ≤6%
• Resolution:
  • 0.001µm if reading <10µm
  • 0.01µm if reading <100µm
  • 0.1µm if reading >100µm
• Sensor:
  • Test Principle: Inductance type
  • Radius of Probe Pin: 10µm
  • Material of Probe Pin: Diamond
  • Measurement Force of Probe: 16mN (1.6gf)
  • Probe Angle: 90°
  • Vertical Radius of Guiding Head: 48mm
  • Maximum Driving Stroke: 17.5mm / 0.7inch
  • Cutoff Length (l): 0.25mm / 0.8mm / 2.5mm
• Driving Speed:
  • When Sampling Length = 0.25mm, Vt is 0.135 mm/s
  • When Sampling Length = 0.8mm, Vt is 0.5 mm/s
  • When Sampling Length = 2.5mm, Vt is 1 mm/s
  • When Returning, Vt is 1 mm/s
• Profile Digital Filter: Filtered RC, PC-RC, GAUSS, and Non-Filtered D-P
• Evaluation Length: 1~5 cut-off optional
• Data Memorize: 7 Groups
• Operating Environment: 0~50°C, <80% RH
• Power Supply: 4 x 1.5V AAA Size Battery
• Size: 149 x 67 x 29mm (Main Unit), 185 x 56 x 47mm (Measuring Base)
• Weight: 485g
