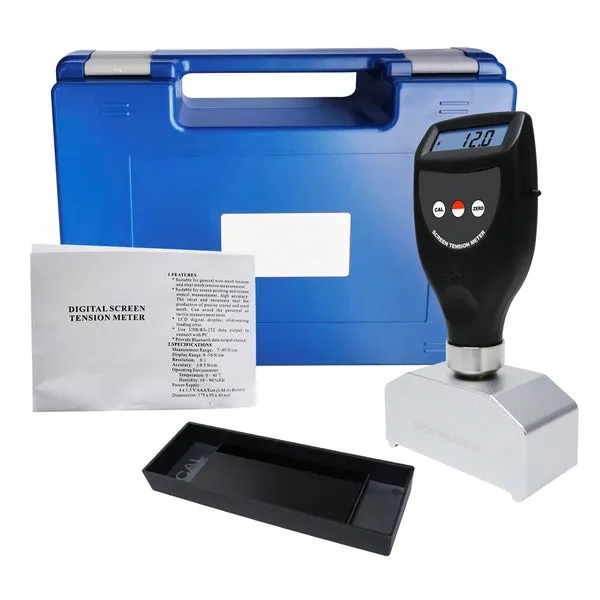

Screen Tension Tester with 7~40N/cm Range for Steel Mesh

The Digital Screen Tension Meter is designed to eliminate human and tactile measurement errors with its advanced LCD digital display, ensuring precise and error-free readings. Ideal for measuring wire and steel mesh tension, this meter is crucial for screen printing and screen stencil production quality assurance, as well as for the production of precise screens and steel meshes.

Features

• Suitable for measuring tension in general wire mesh and steel mesh
• Essential for quality assurance in screen printing and screen stencil production
• Easy-to-read LCD digital display
• High accuracy with auto or manual power off function
• Tension units in N/cm or Kg/cm
• Battery strength indicator
• USB data output to connect with PC (cable and software not included)
• Bluetooth data output option (adapter and software not included)

Specifications

• Measuring Range: 7~40N/cm
• Display Range: 0~50N/cm
• Resolution: 0.1
• Fiducial Error: 5%
• Operating Temperature: 0~40°C
• Humidity: 10~90% RH
• Power Supply: 4 x 1.5V AAA Size (UM-4) Battery
• Dimensions: 175 x 95 x 40 mm (6.9 x 3.7 x 1.6 inches)
• Weight: 490g / 1.08 lbs (excluding batteries)
