Professional Wiring Locator & Buried Wire Detector

This underground Wire Locator is used to locate the path of non-energized wires behind walls and underground. It can also locate specific circuit breakers, pinpoint wires before drilling, and verify dig sites underground. The effective range is up to 3 feet deep and up to 1000 feet in length.

Features

• Designed to locate the path of non-energized wires behind walls and underground.
• Tracking underground, Buried Wires and other hidden-wires.
• Locating Alarm, Sound & Computer Wires and locating Hidden Receptacles.
• Measuring Depth and locating Circuit Breakers.
• Determining Which Receptacles are on Specific Circuits.

Specifications

Transmitter:

• Tone frequency: 900Hz
• The Max length distance: 1000 feet
• The Max depth distance: 3 feet
• The Max. working current: Less than 70mA
• Tone mode: 1 Tone
• Max. signal voltage: 15Vp-p
• Signal display: Signal tone, Antenna
• Voltage protection: AC 60V/DC 42V
• Dimensions (LxWxD): `49 x 135 x 33mm

Receiver:

• Frequency: 900kHz
• The Max. working current: Less than 70mA
• Earphone jack: 1
• Dimensions (LxWxD): 43 x 168 x 27mm

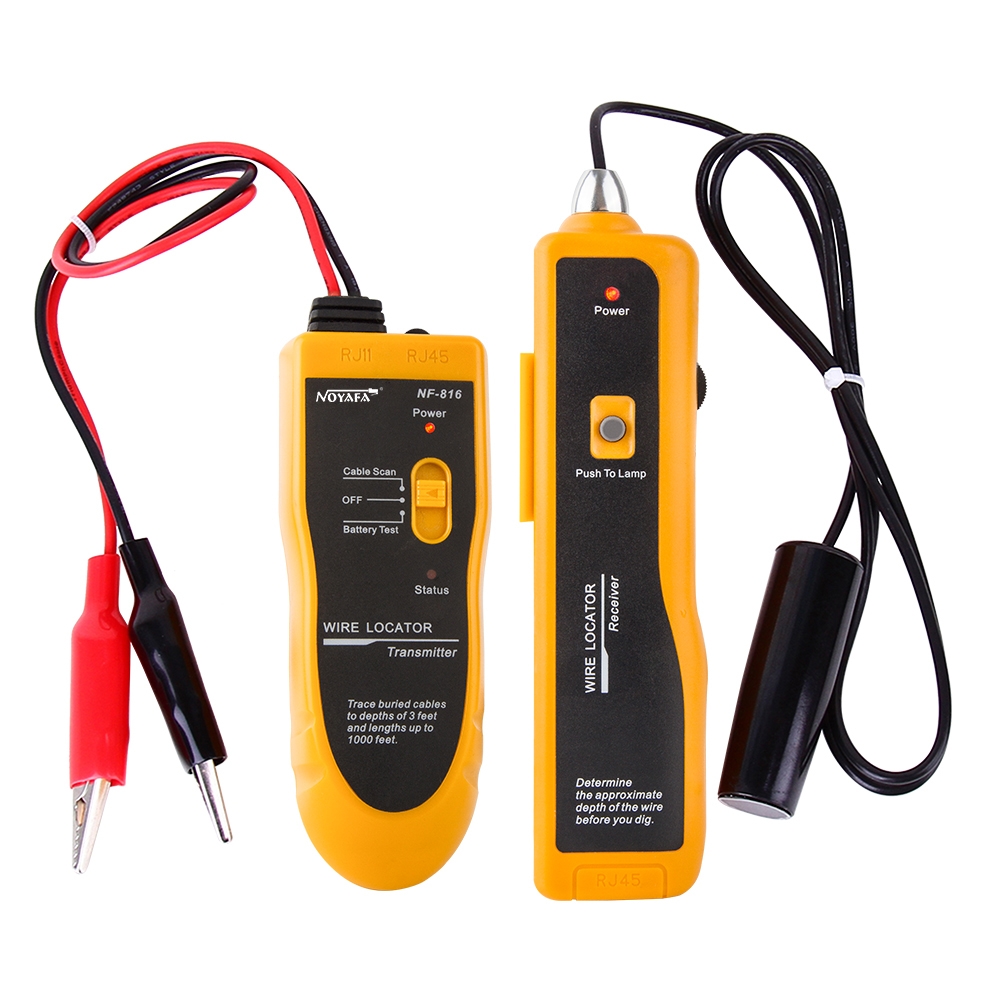

Set Includes

1 x Emitter
1 X Receiver
1 x Earphone
1 x Kit bag
1 x Instruction Manual
