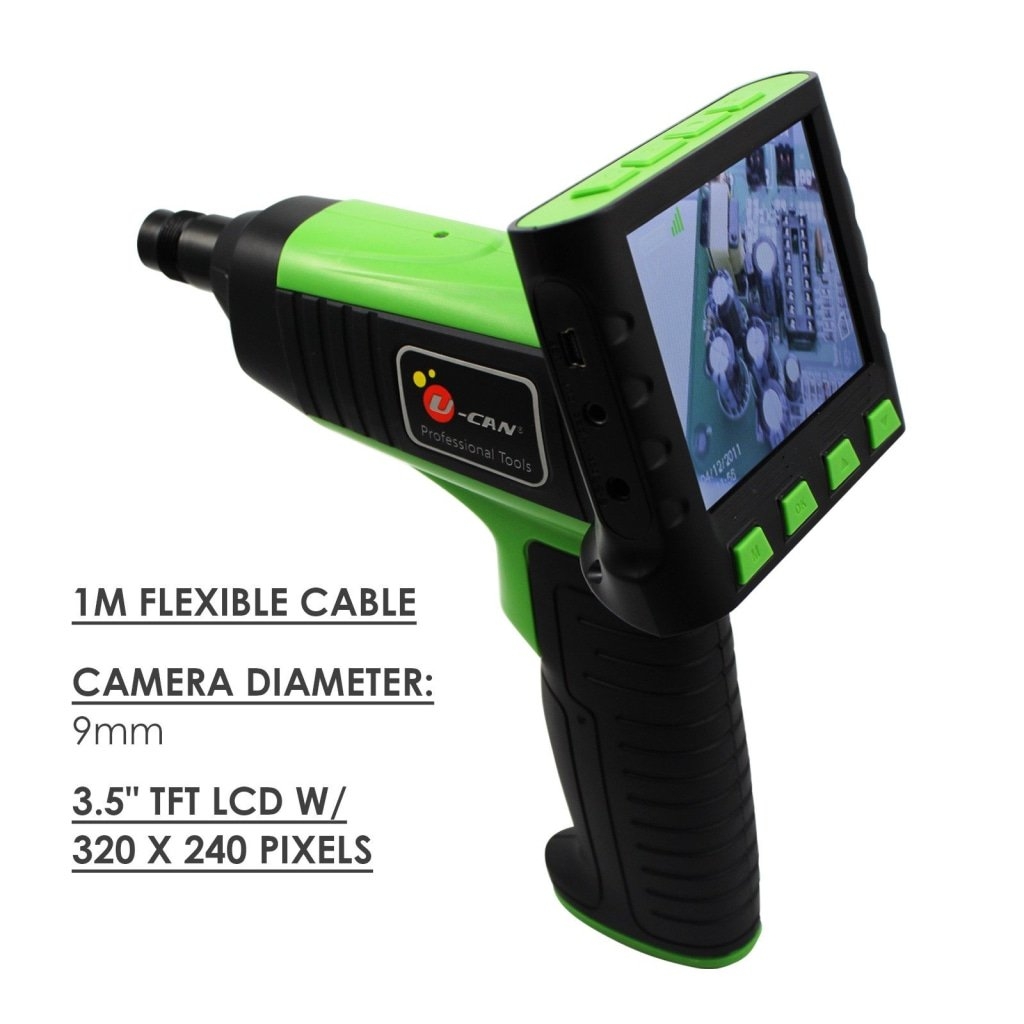

Professional Wireless Industrial Endoscope w/ 3.5″ LCD

This Large 3.5″ Colour LCD Wireless Video Inspection Camera with USB uses opto-electronic technology to investigate hard-to-reach areas. The LCD receiver is detachable and can transmit the video signal between the camera grip and the receiver within 10m.

 Specifications

• Camera

• Diameter: 9mm
• Imaging Sensor: 1/13 inch CMOS
• Pixel Pitch : 0.219 x 0.219mm
• Transmission Frequency: 2468MHz (2.468Ghz)
• Minimum illumination: 0 Lux
• Modulation Mode: FM
• Bandwidth: 18MHz
• Unobstructed Effective Range: 10m
• Waterproof Capacity: IP67

• Monitor

• LCD Screen Type: 3.5″ TFT LCD
• Screen Resolution : 320 x 240
• Video System: PAL/NTSC
• Transmission Frequency: 2.468GHZ (2468MHz)
• Exterior Supply Voltage: 6V(DC)
• Consumption Current (Max): 490mA
• Video Output Level: 0.9 ~ 1.3V at 75ω(ohm)
• Capacity of Micro SD Card Slot: Support Micro SD Card up to 32GB
• Picture/Video File Resolution: 640 x 480

• Operating Temperature: -10~50°C / -14~122°F
• Operating Humidity: 15~85%RH
• Color: Green & Black
• Weight:

• Main Unit: 200g
• Monitor: 153g

• Dimension:

• Main Unit: 170 x 52 x 163mm (excluding Flexible Tube)

• Monitor: 100 x 38 x 83mm

 Set includes

• 1 x 3.5″ LCD Inspection Camera (main unit)
• 1 x 1M Flexible Cable with 9mm Waterproof Camera Head
• 1 x 3.5″ Color LCD Monitor (Receiver)
• 1 x 2GB micro SD Card/TF Card
• 1 x Video Cable
• 1 x USB cable
• 1 x Magnet Tip
• 1 x Hook Tip
• 1 x Mirror Tip
• 2 x Screws
• 1 x Screwdriver
• 1 x Tip Holder
• 1 x Instruction Manual
