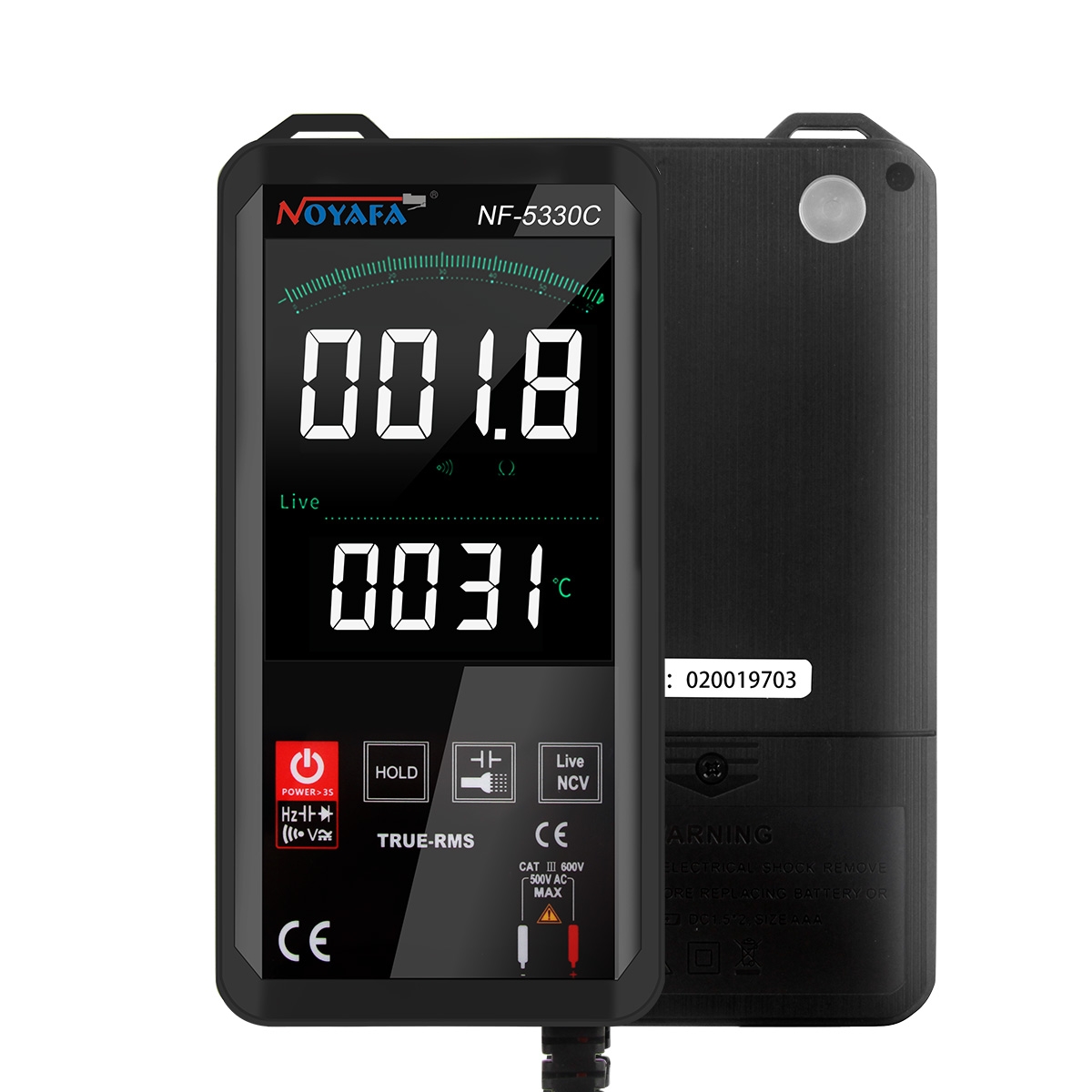

Professional Digital Multimeter w/ HD Colour Touch Screen & NCV Lighting Functions

This is a compact and easy to use multimeter measuring DC and AC voltage, resistance, diode and continuity with a large and vibrant next-generation LCD screen. It is easy to operate and is an ideal measurement tool for the beginner through professional.

Features

• Recognise and measure based on the input AC or DC current/resistance
• Manually switch and measure DC voltage and AC voltage, capacitance, NDV, diode, continuity test, live wire judgment, frequency measurement and true RMS
• Stable performance, high precision, high reliability, clear reading and overload protection
• Large screen LCD display

Specifications

• Display mode: triple display LCD; main display, sub display, analog bar
• Measurement method: double integral A/D conversion
• Maximum display: 5999 (3 5/6) bit automatic polarity display
• Sampling rate: about 3 times per second
• Working environment：(0～40)℃, relative humidity＜80%
• Sampling rate: about 3 times per second
• Overload protection: 1000V DC or 750V AC peak. Validity Measurement: frequency response 50Hz-1kHz
• Input impedance: 10MΩ Value: automatically switched between 6V/60V/600V/1000V
