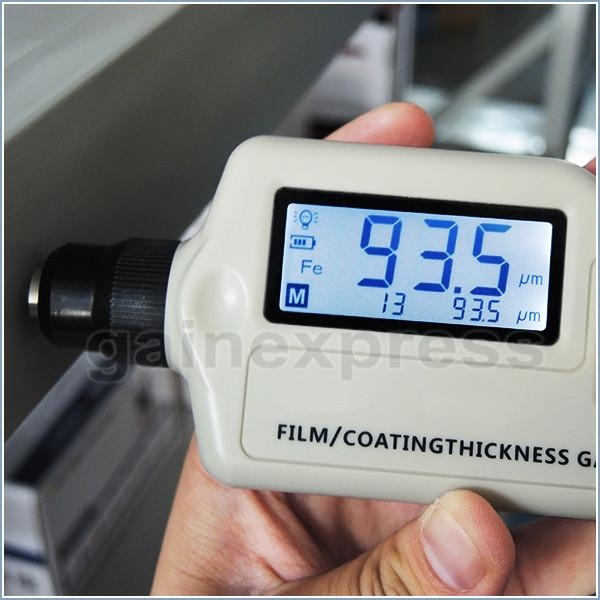

Portable Non Destructive Coating Thickness Gauge Meter 1800um Magnetic Induction

This portable Film/Coating Thickness Gauge Meter adopts magnetic induction techniques for measurement. The compact design performs fast, precise and non-destructive digital coating measurements and plating on steel magnetic conductors.

It is widely used in manufacturing, workshop, chemistry or quality control fields.

Features

• LCD display measurement value and status
• Use Hi-sensibility sensor for precise measurement
• 0 point, 2 point and basic, three different calibration modes easy to perform a quick system calibration
• Single, Continuous and Difference measuring mode
• Data record, recall and delete function
• Data analysis : Average, Maximum, Minimum, Standard, and measure times
• Beep sounds indication
• Metric/Imperic unit selection
• Low Battery indication
• Auto power off
• Backlight LCD
• Simple, compact structure and portable design

Specifications

• Measurement Range: 0~1800µm

• Resolution : 0.1/1µm
• Accuracy : ±(3%H+1)

• ( H = Nominal Transformation ratio )

• Conditional of Objective material:

• Suitable for measure about non-magnetic coating magnetic conductor base material

• The minimum curvature radius
• Convex : 2mm / Concave : 11mm
• Minimum Sample diameter : 12mm
• Minimum Substrate thickness : 0.5mm

• Operation current : Around 14mA
• Operation Temperature : 0~40°C
• Operation Humidity : 10~95% RH
• LCD backlight function : 7 secretary
• Low battery indication : 7.0v / 2V
• Product size : 67 x 30 x 187mm
• Weight : 147g

Set includes

• 1 x Digital Coating Thickness Tester
• 6 x Iron base material for calibration
• 1 x Instruction Manual
• 1 x Carrying Case
• Standard Packaging Box
