Portable Auto Ranging Digital Deluxe Lux and light Meter with Data Logging and PC Interface, 0-200000 Lux

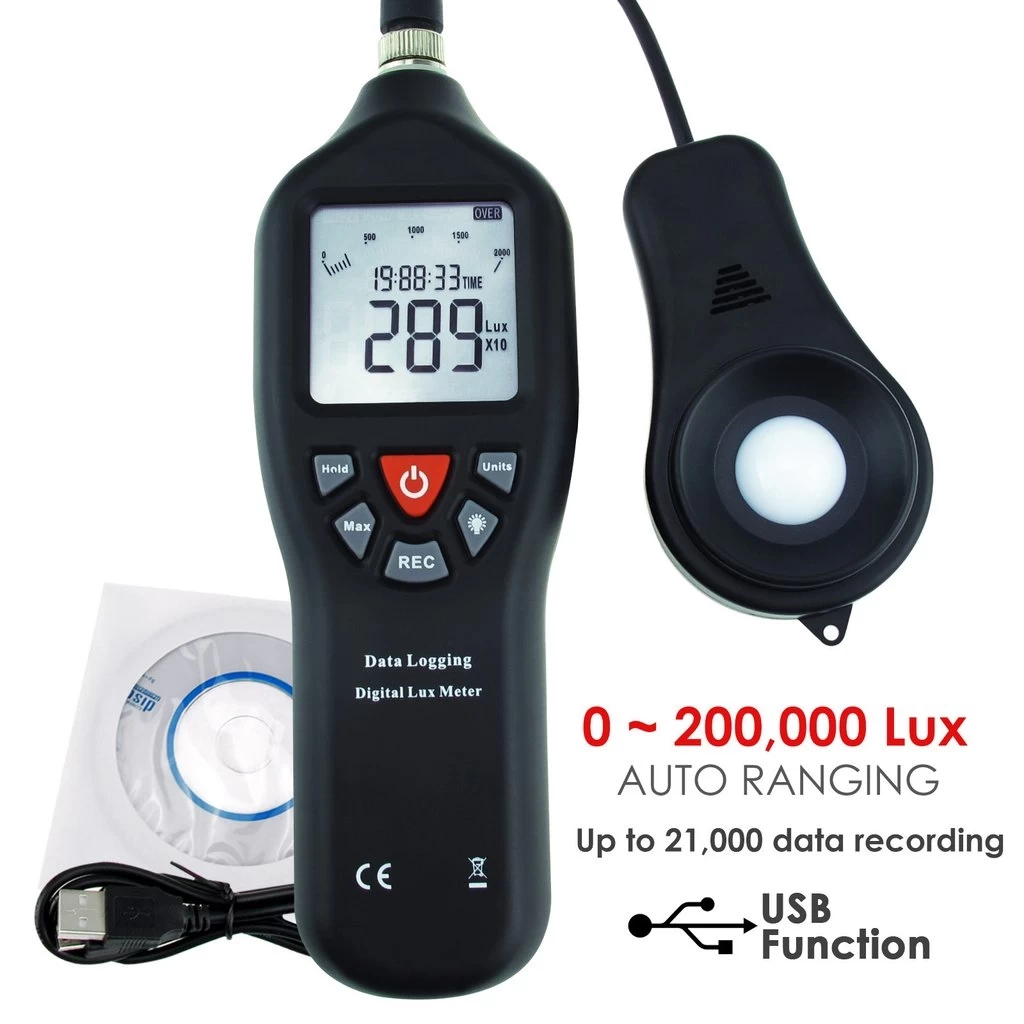

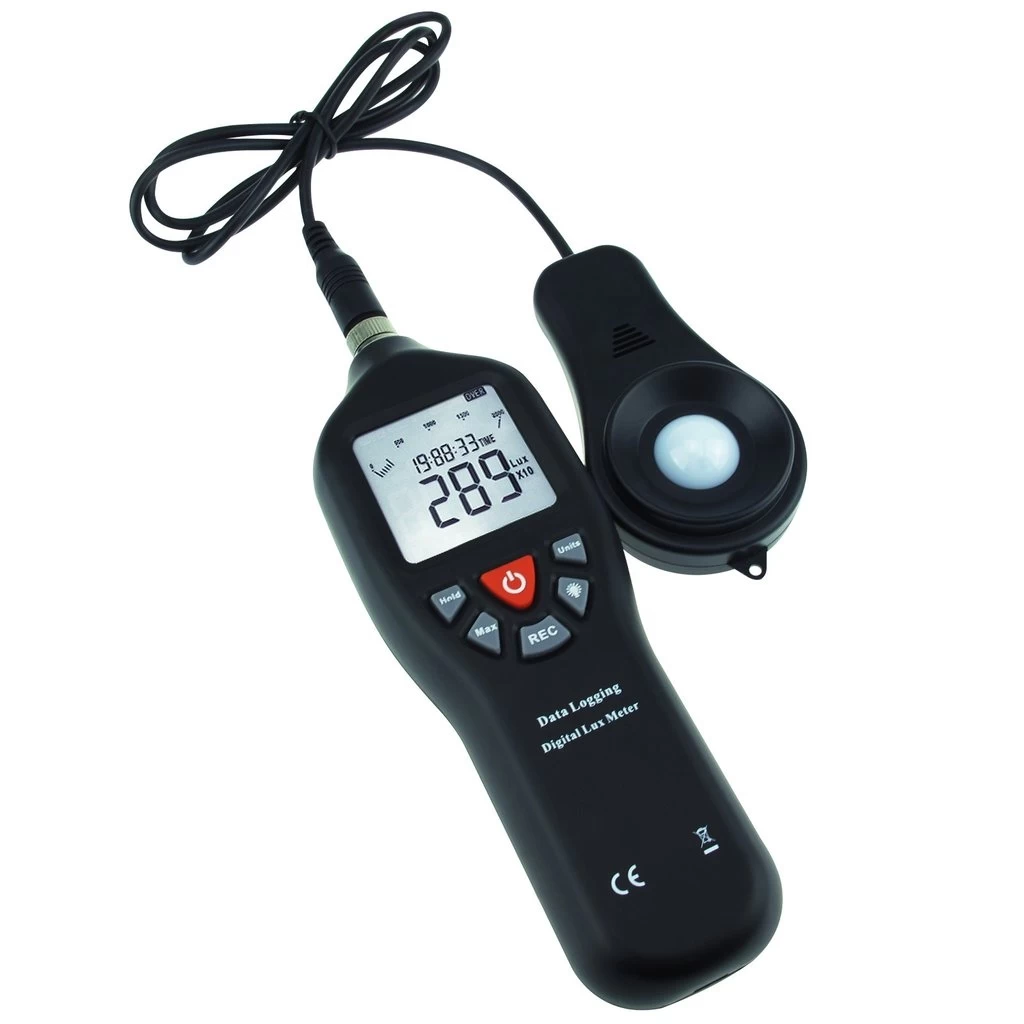

Portable Digital Lux Meter with PC Interface

Brightness and light intensity are critical for accurate exposure in photography and ensuring appropriate lighting in various environments. Don’t risk your next job with inferior testing equipment. Whether you’re assessing common areas for safe lighting levels or testing designs for compliance, our Portable Digital Lux Meter gets the job done.

This advanced light meter can measure up to 200,000 lux and is used to evaluate luminance—the amount of light falling on a surface. It is ideal for light intensity measurement, engineering, quality control, or illness prevention treatment in diverse settings, including hospitals, factories, schools, offices, transportation routes, and homes.

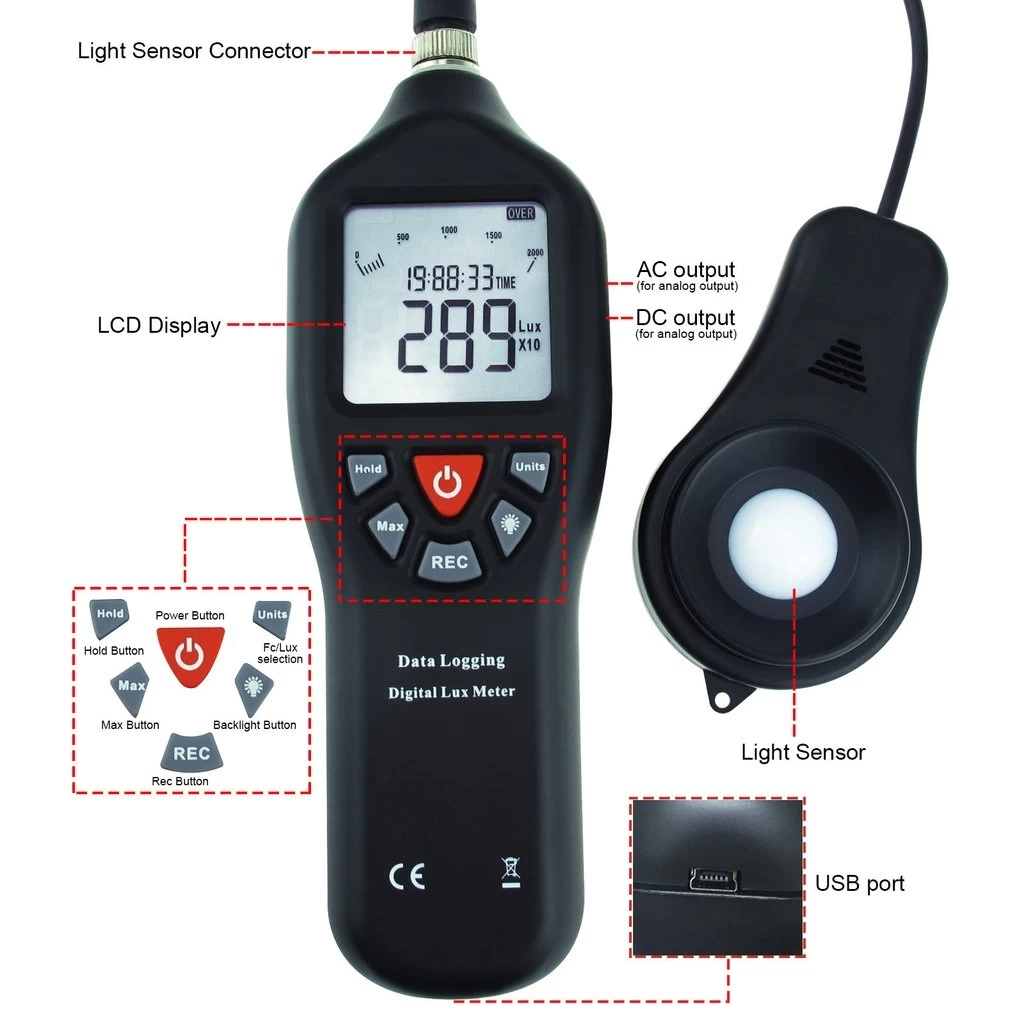

Features

• Auto ranging for ease of use

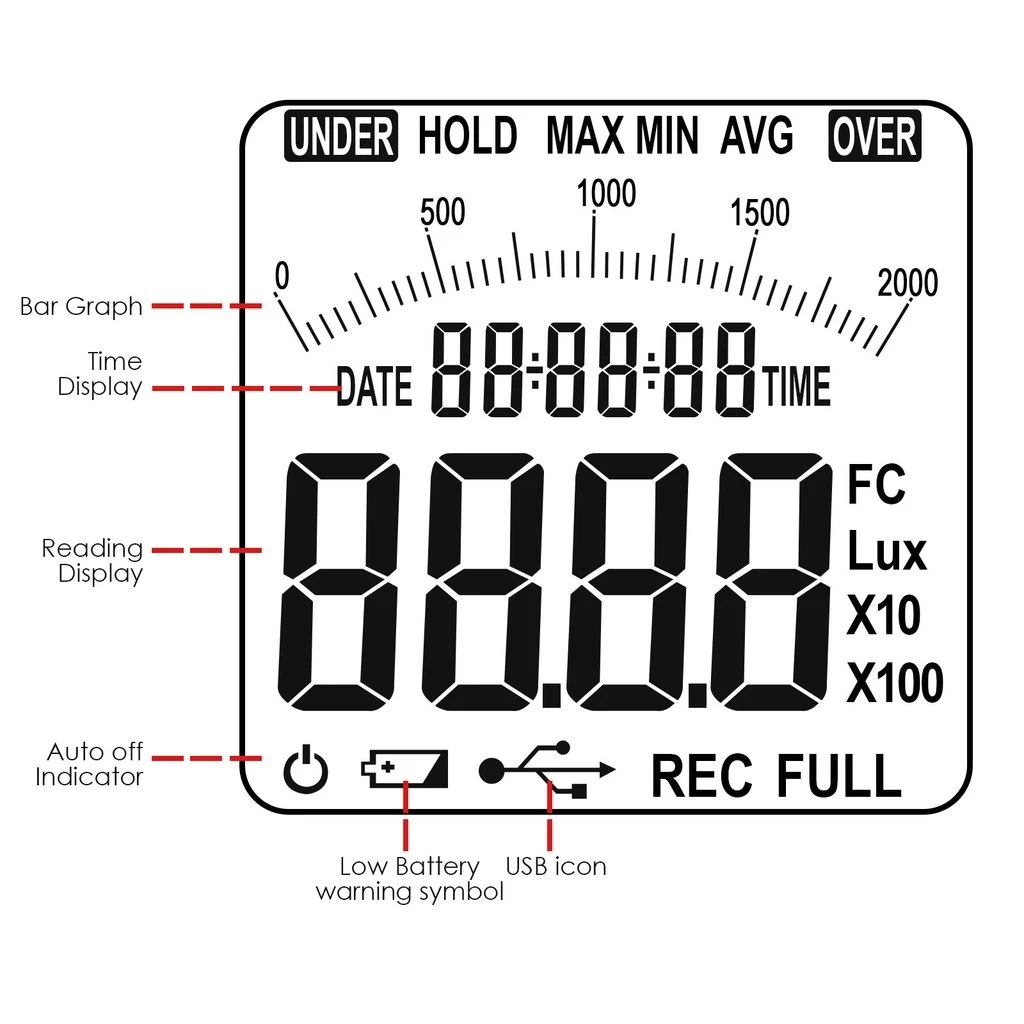

• Large display with backlight for clear visibility
• 21,000 reading internal memory with data record function
• Data logging function for tracking measurements
• Switchable between Lux and Foot Candle (Fc) units
• Data hold function for capturing readings
• High accuracy for reliable results
• Min/Max/Avg function for comprehensive data analysis

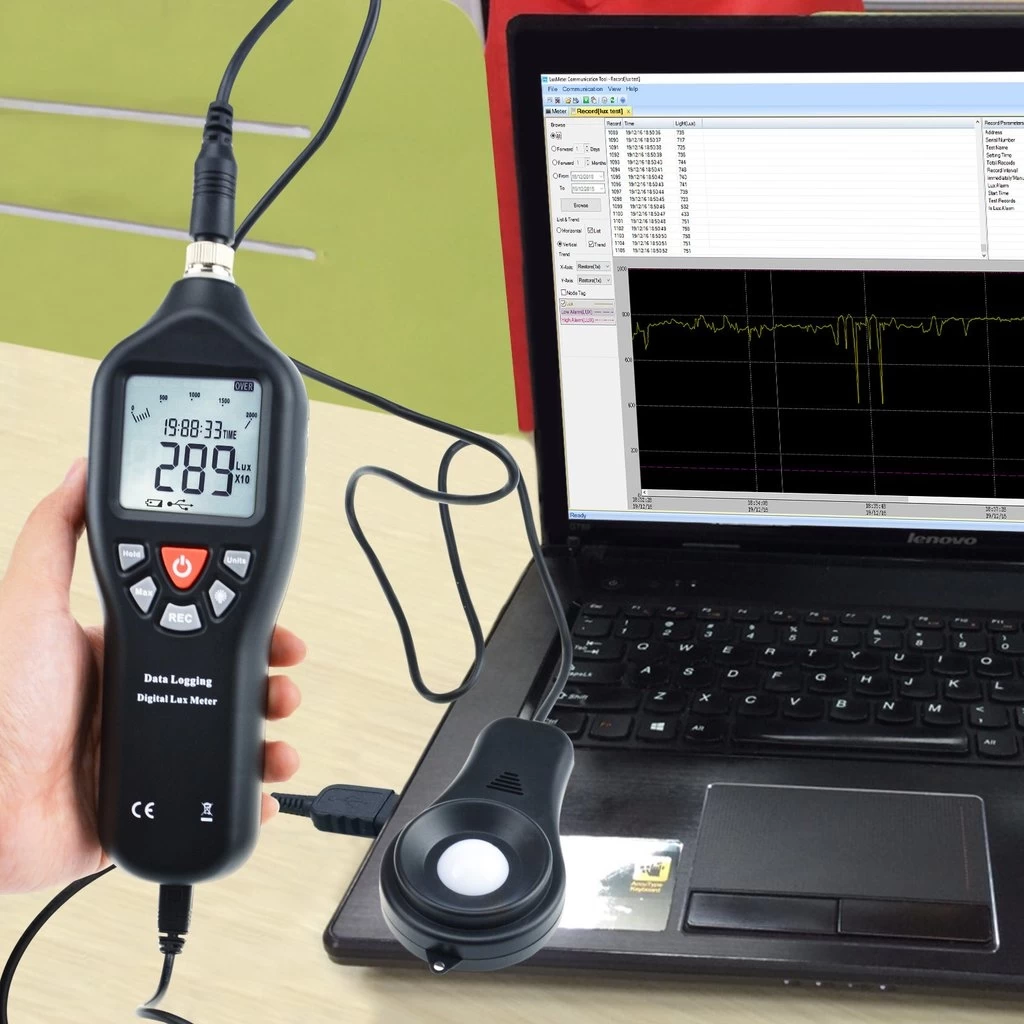

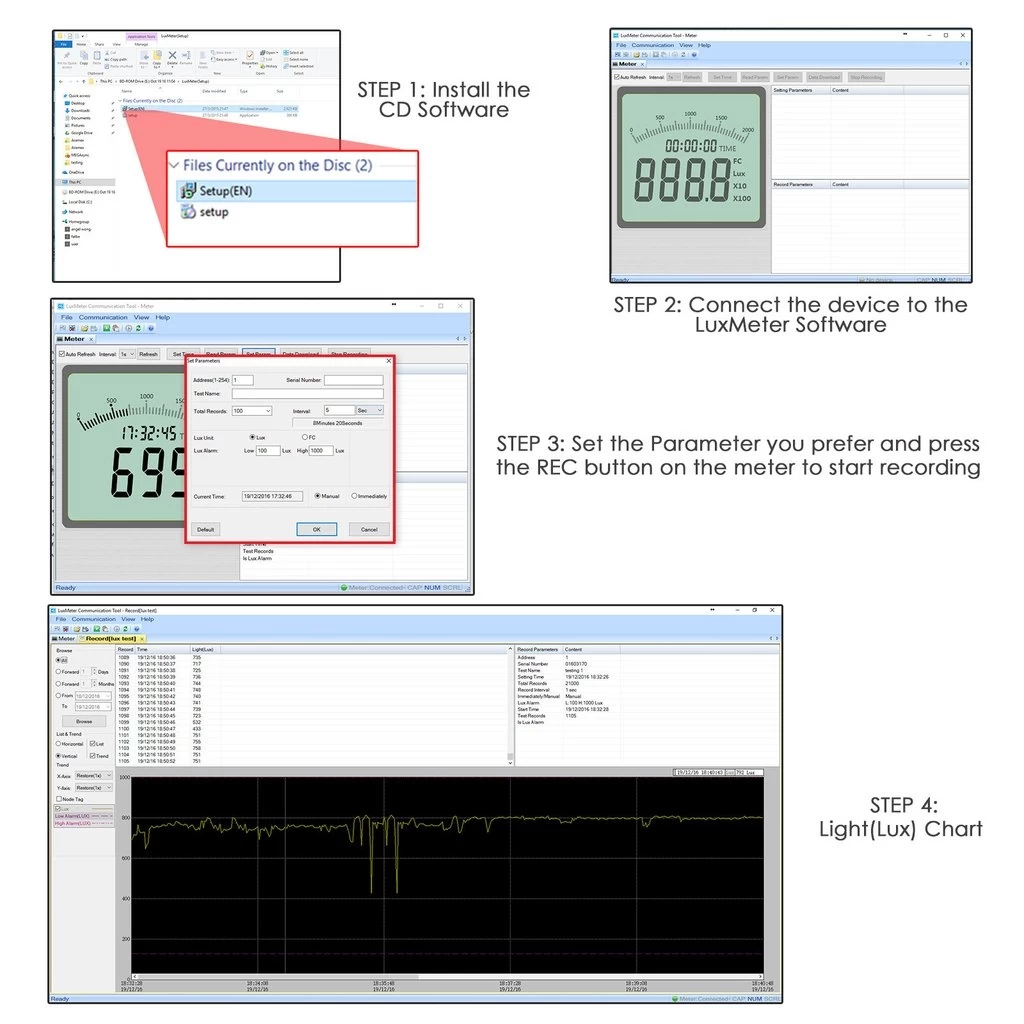

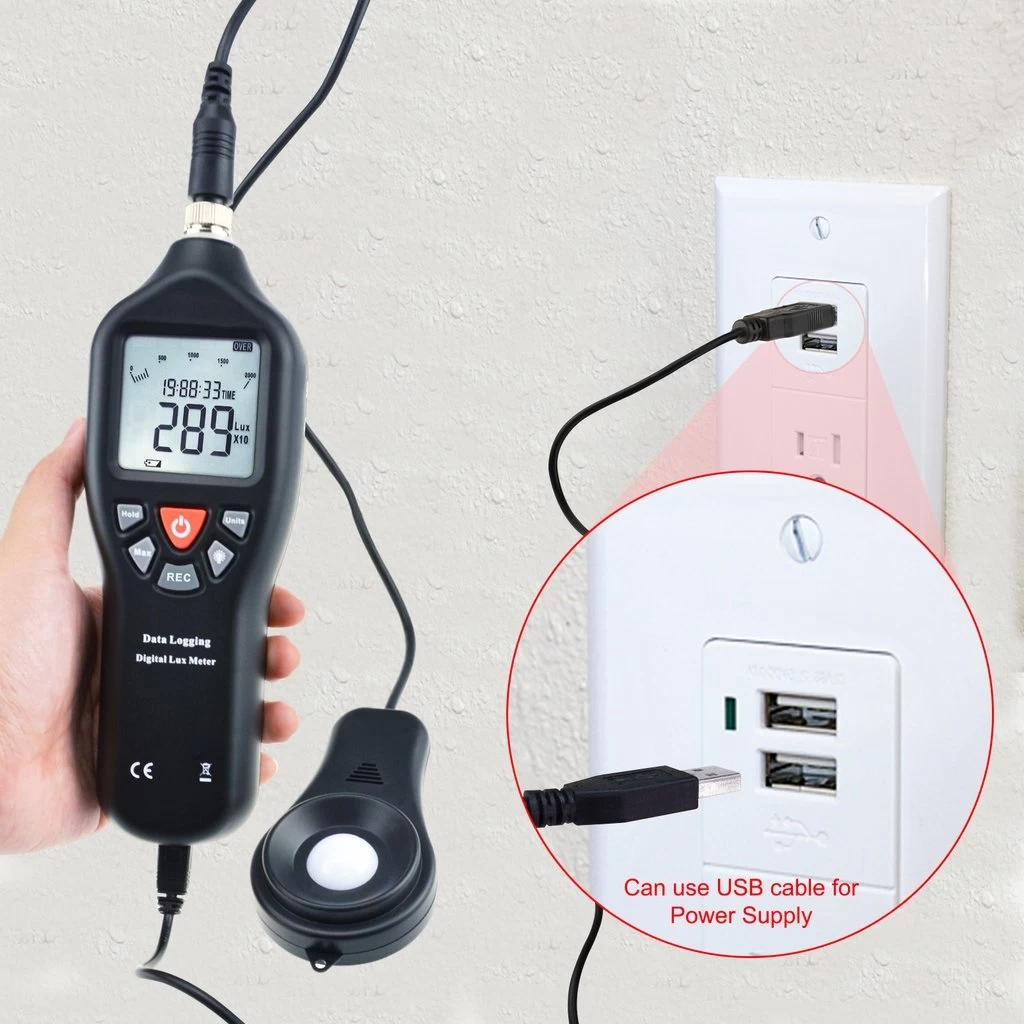

• PC interface for data transfer and advanced settings

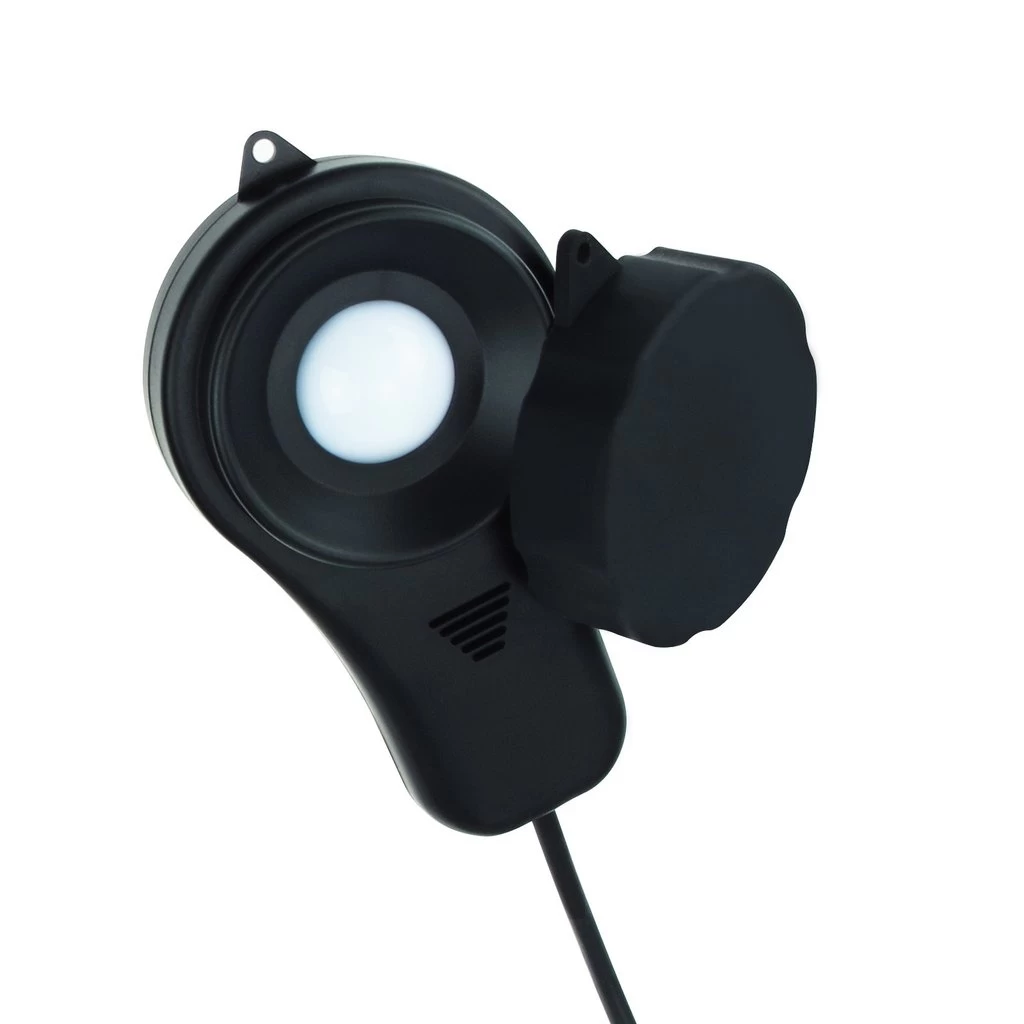

• Detachable sensor for flexible measurement positioning
• Time and date display for recording conditions
• Low power consumption for extended battery life
• Auto OFF function with disable option during recording
• Hi/Low alarm settings for immediate alerts

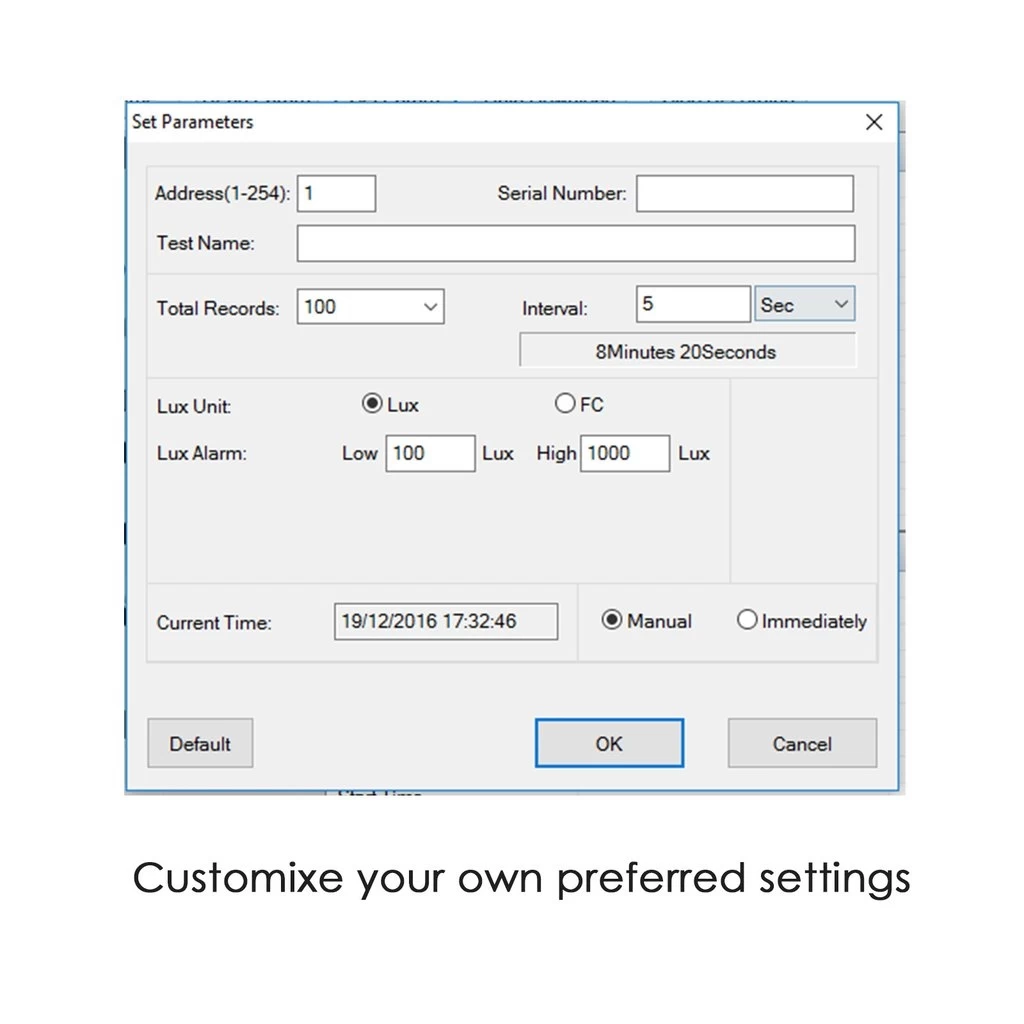

• Adjustable over/under alert threshold via computer interface
• Bar graph display for visual representation of light levels

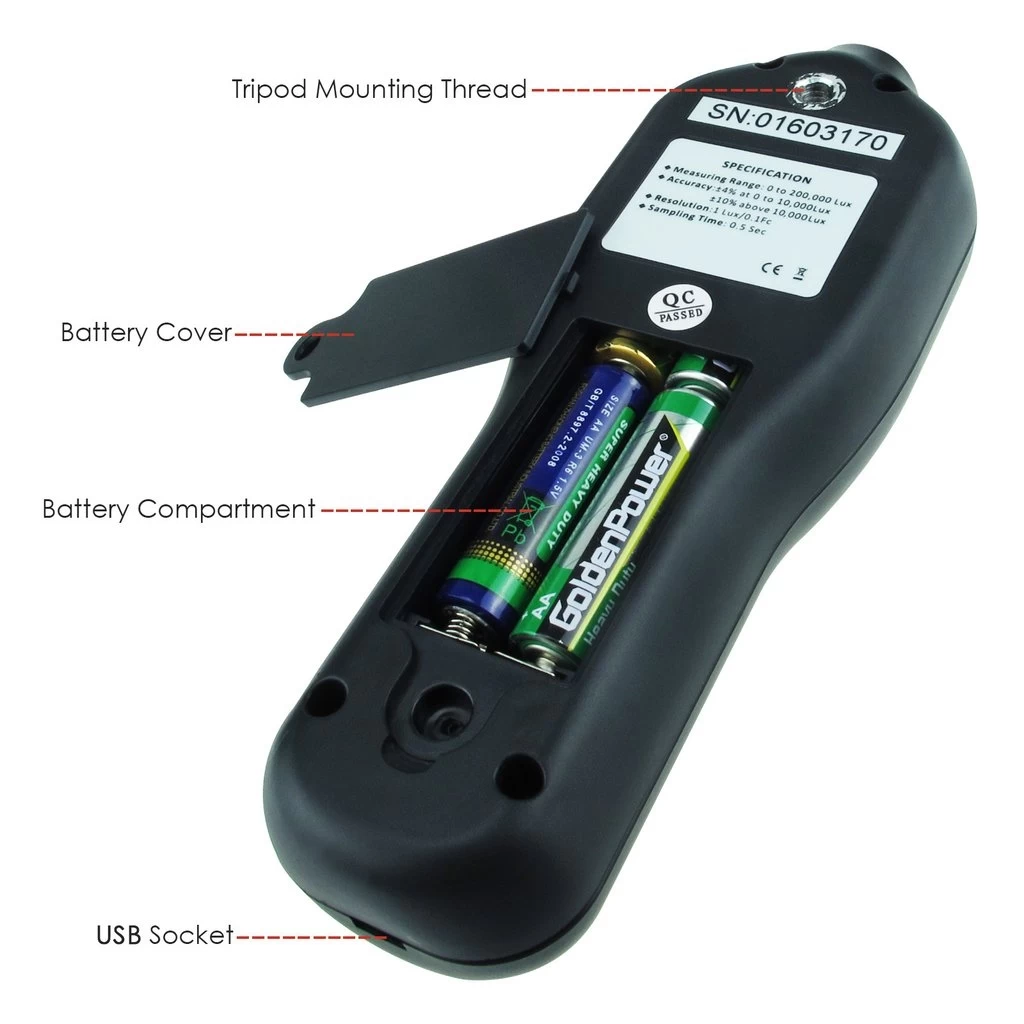

• Tripod mount thread (tripod not included)
• CE Certified and RoHS Compliant for safety and environmental standards

Usage & Applications

• Precise measurements across multiple light ranges, suitable for workplaces, labs, schools, environmental studies, optics, and real estate inspections.
• Ideal for architecture professionals, light designers, or cinematographers.
• Useful for indoor and outdoor gardeners to ensure proper light levels for plant growth.
• Measure luminance for various applications, including illumination control, weather observation, metallurgy, industry inspection, and agriculture research.
• Monitor building and security light levels with confidence.
• Applicable for any situation requiring measurement or recording of illumination.

Specifications

• Measurement Range: 0 ~ 200,000 Lux (0.1 ~ 18,581 Fc), switchable
• Accuracy: ±4% (0 ~ 10,000 Lux); ±10% ±5% rdg (above 10,000 Lux)
• Resolution: 1 Lux / 0.1 Fc
• Sampling Time: 0.5 seconds
• Analogy Bar Graph: 0 ~ 2,000 (x 10 or x 100)
• AC Signal Output: 4 Vrms / full bar graph, output impedance approx. 600 ohms
• DC Signal Output: 33 mV/dB
• Record Interval: 1 ~ 60 sec / 1 ~ 60 min / 1 ~ 24 hrs
• Windows Compatibility: Windows 10, 8, 7, Vista, and XP (not compatible with Mac OS)
• Operating Environment: Temperature: 0 ~ 50 °C (32 ~ 122 °F), Humidity: 10 ~ 90% RH
• Storage Environment: Temperature: -10 ~ 60 °C (14 ~ 140 °F), Humidity: 10 ~ 75% RH
• Item Weight: 290 g
• Product Dimensions: 24 x 6.5 x 3.5 cm (with 1 meter extended detachable sensor)
