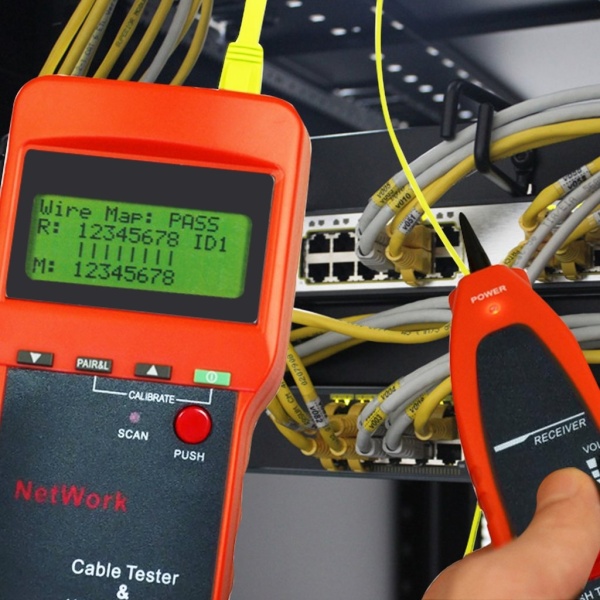

Multipurpose Network LAN Cable Tester & Wire Tracker

This tester is a multipurpose network cable length tester with three significant functions: hunting, wire sorting and circuit status testing with reliable accuracy. Widely applicable to computer network and other metal wire circuits and other fields. A highly recommended tool for technicians in installing and maintaining weak current systems such as communication lines, comprehensive wiring circuits, etc.

Features

• Audio probing and cable tracing function
• Check wiring error in 5E, 6E, coaxial cable such as open circuit, short circuit, jumper wire, reverse connection or cross-talk interference
• Locate the wiring or connection error
• Measure cable length and determine the distance of open circuit and short circuit
• Dynamically calibrate cable length and make length measurement as accurate as 97%
• Directly find the RJ45 cable
• Measuring network line-break
• Measure twisted-pair length
• Auto power-off function
• Simple and easy use. Big LCD screen to display test result clear
• Portable unit with long battery life (standby 50 hours)
• Automatically time-delay shut off
• Measure length and pair with or without the far-end recognizer
• Locate cable and there are 8 far-end passive (remote identifier) test jacks [1D1-ID8]
• (Note: only 1 ID1 is included in the set )
• Far-end recognizer (remote identification) with prompting voice
• Self-checking function
• Automatically compensate for any change in battery capacity or ambient temperature
• Single board computer software watchdog design with reliable operation

Specifications

• Display: Special 4 x 16 character big screen LCD lattice(valid visual field 61.6 x 25.2mm)
• Type of Cable Tested

• STP/UTP twin twisted cable
• Coaxial cable (RJ45-to-BNC converter is not included in the set)

• Type of cable detected

• 5E & 6E
• Coaxial cable (RJ45-to-BNC converter is not included in the set)
• Other metal wires

• Tester Port

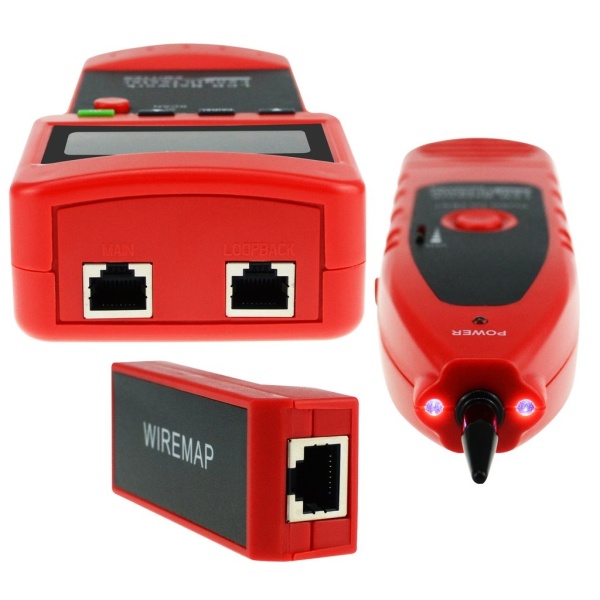

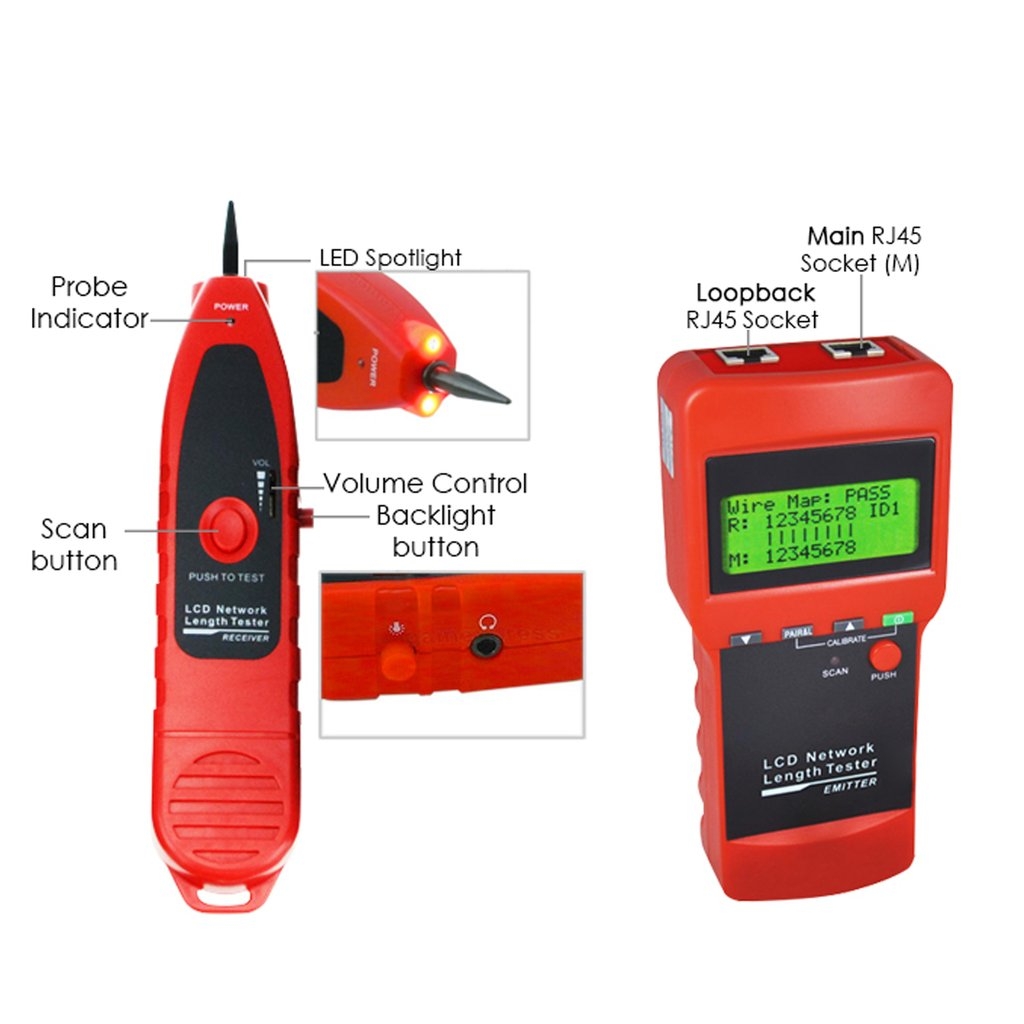

• Tester RJ45 master port (L), tester LOOPBACK RJ45 port (R)

• Length Measurement of Twin Twisted Cable

• Scope: 1~350M ( 3 ~ 200ft)
• Calibration accuracy: 3% (±0.5M or ±1.5ft) (calibrating cable > 5M)
• Shipment accuracy: 5% (±0.5 M or ±1.5 ft) (AMP, AT&T Class 5 cable)
• Display: M (meter) or ft. (feet)

• Length Calibration

• User can set calibration factor by themselves with a given length cable
• Length of calibrating cable is more than 5M

• Wire Sequence and Locating Cable Error: Check errors such as

• Open circuit
• Short circuit
• Reverse connection
• Cross-over or cross-talk interference

• Locating Cable: 8 Remote identifier test jacks (ID1 to ID8) (Note: only one ID1 is included in set)
• Automatic Time-delay Shut Off Time: if idle for 30 minutes

• Overall dimension

• Main tester: 180 x 80 x 40mm
• Receiver: 218 x 46 x 29mm

• Remote Identifier: 77 x 31 x 21mm

Set includes

• 1 x Main Tester (Emitter)
• 1 x Receiver
• 1 x Recognizer (Remote Identifier)

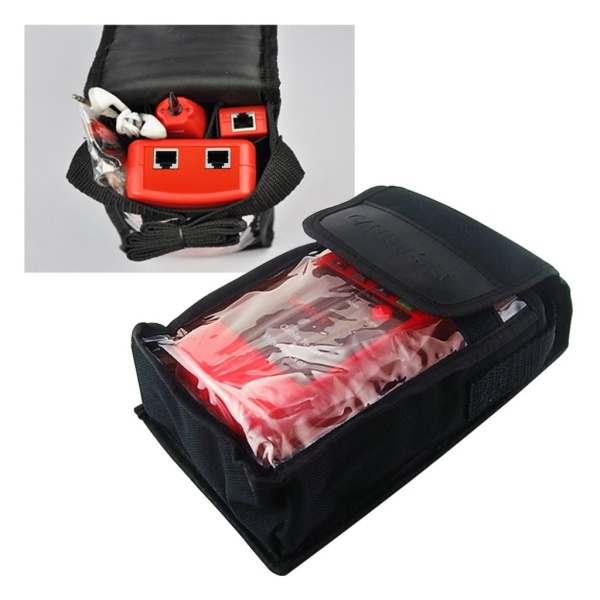

• 1 x Toolkit Bag
• 1 x RJ45-to-Alligator Clip
• 1 x RJ45-to-RJ45 Cable
• 1 x Earphone
• 1 x English User Manual
• Coloured Packaging Box
