Industrial Video Inspection Endoscope w/ 3.5″ LCD

This 3.5″ TFT LCD Industrial Endoscope comes with a 10mm camera head. The image on the screen can be flipped and rotated by 180°. It has a horizontal viewing angle of 54°. In addition, you can inspect the area under water, gaps and holes effortlessly with the IP67 rated waterproof level metal tube and camera head.

The standard Flexible 1m (3.3ft) cable allows you to explore and discover conveniently.

Features

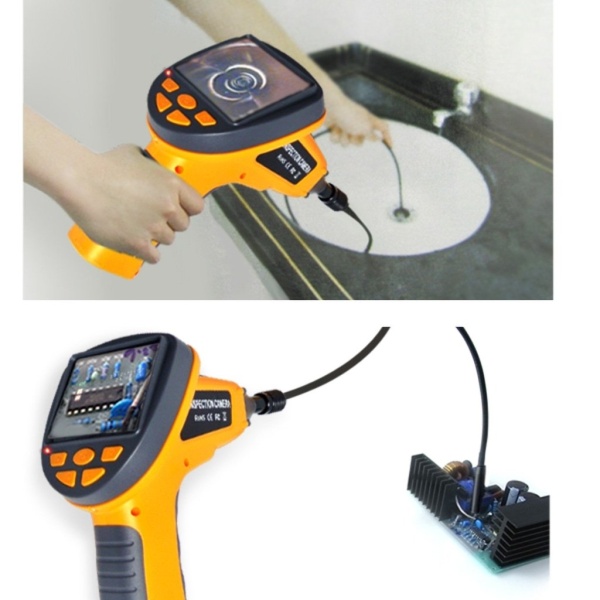

• Allows visual inspection, specially in areas that are hard to reach

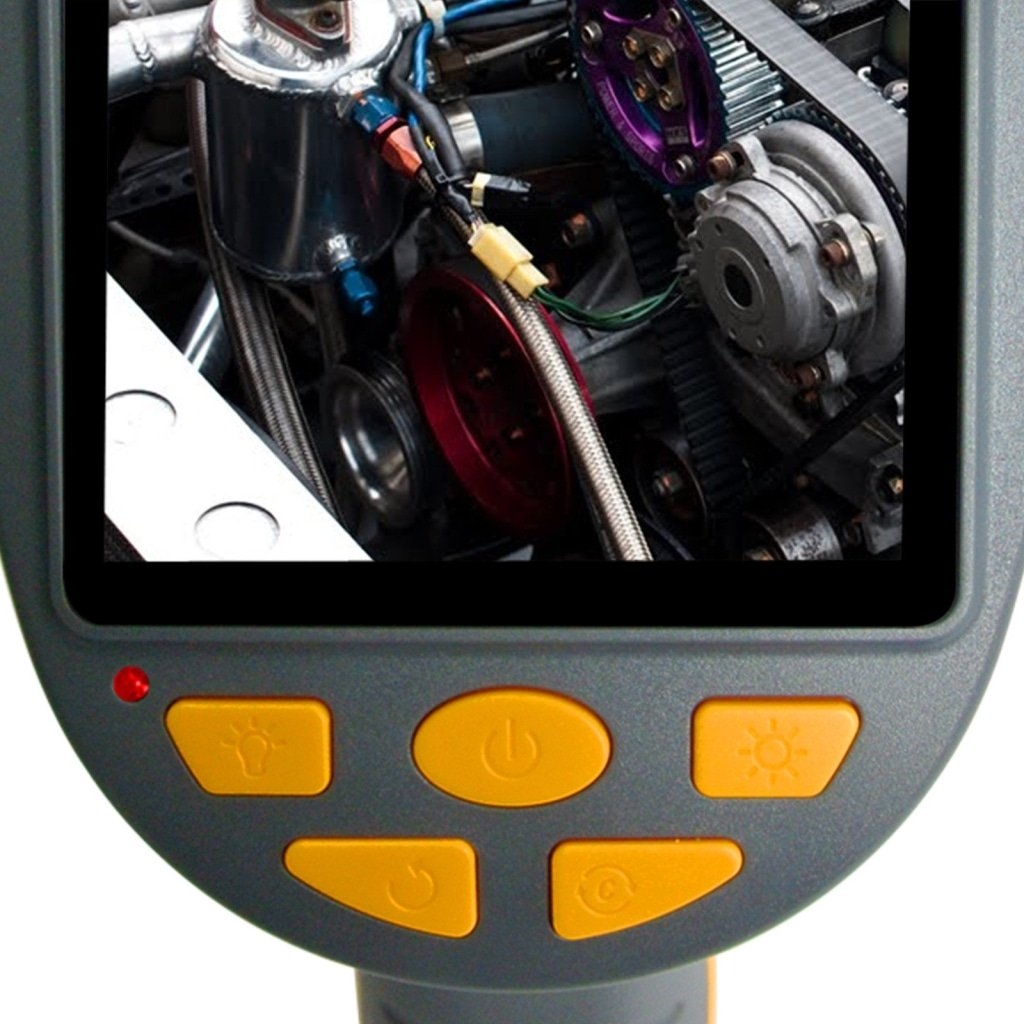

• 3.5″TFT LCD Monitor
• Camera Lens Diameter : 10mm
• Allows 180° image rotation and flip.
• Allows for easy surveying of small, hard-to-reach places
• Ergonomically advanced design, flexible and convenient to use
• Display resolution : 320 x 240 pixels
• Adjustable LCD screen brightness and contrast control
• Adjustable camera head brightness
• Allows colour exchange , screen can be transformed to black and white
• With IP67 waterproof level rating
• Comes with hook and magnet tips

Specifications

3.5″ LCD monitor

• Display screen : 320 x 240 pixels
• Display contrast adjustable (6 levels)
• Image Rotation Control : 180° and flip

• Video Format : RGB
• Cable Camera

• Diameter : 10mm
• Pixel : 640*480
• Sensor : Optical format CMOS image sensor
• Focus distance : 30 ~ 80mm
• White Balance : Automatic
• Distortion : <3.7%
• Housing Material : Aluminum
• Field of View (FOV) : 54°

• Light

• built-in 4 x LED
• adjustable brightness (6 levels)
• 0 Lux

• 8000hrs. lamp life

• Flexible Cable Length : 1 meter cable length
• Min.Bending Radius : 10cm in diameter
• Operating Temperature : -20 ~ 60°C (-4 ~ 140°F)
• Storage Temperature : -20 ~ 70°C (-4 ~ 158°F)
• Relative Humidity : 15 ~ 85%RH
• Waterproof Rating : IP67 (insertion tube and tip)
• Hazardous Environments : Not rated for use in hazardous environments
• Working Temperature Range : -10 ~ 50°C
• Storage Temperature Range : 0 ~ 40°C

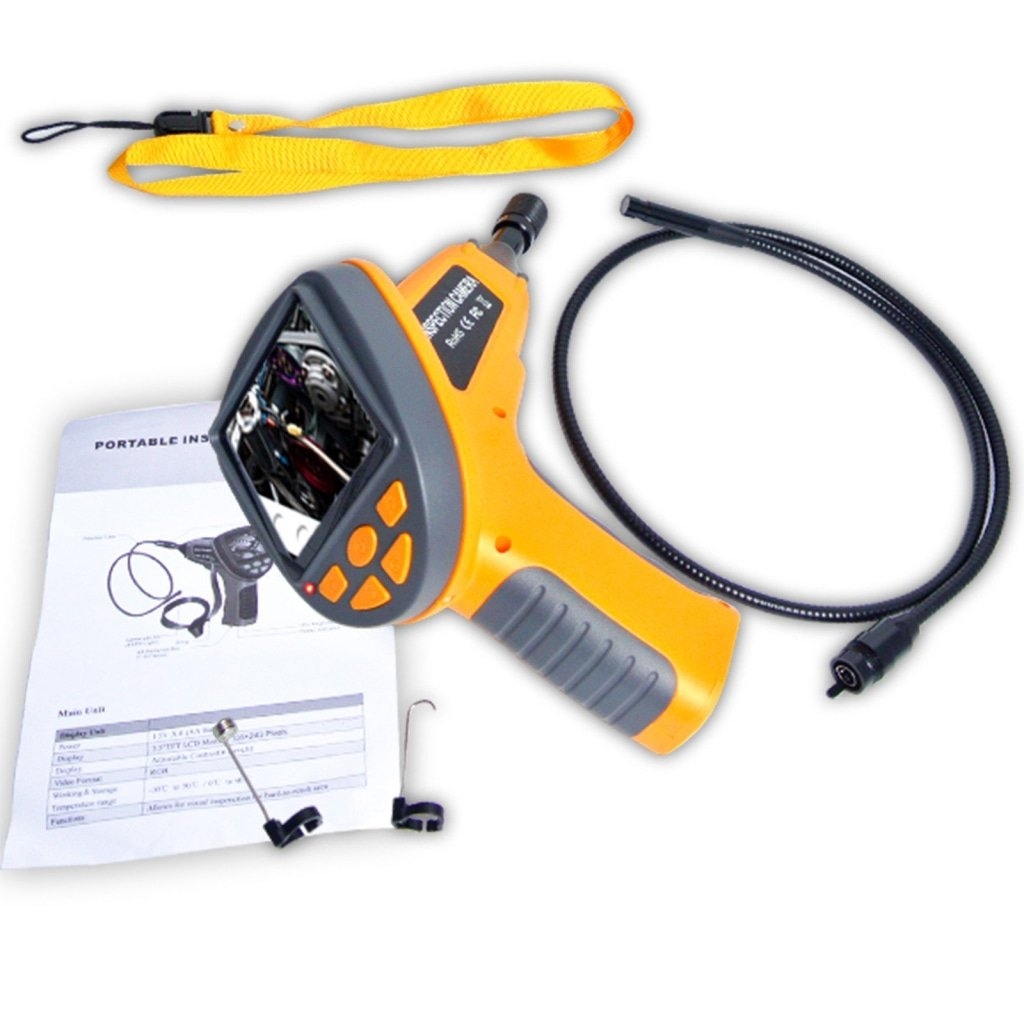

Set includes

• 1 x 3.5″ TFT LCD Endoscope / Borescope
• 1 x Standard 1M Cable w/ 10mm diameter
• 1 x Hand-strap

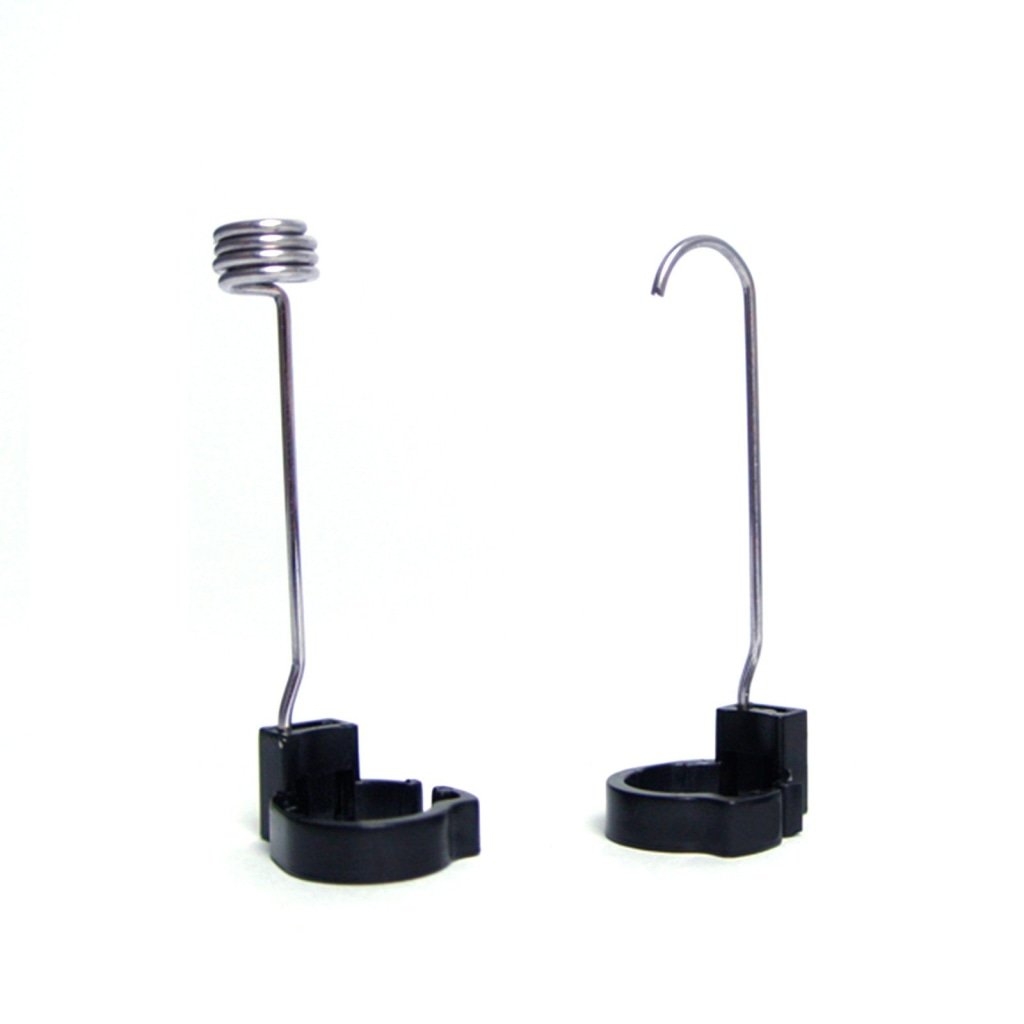

• 1 x Magnet Tip
• 1 x Hook Tip
• 1 x User’s Manual

(Recommended length of extension cables that can be attached to this item is 10 meters long)
