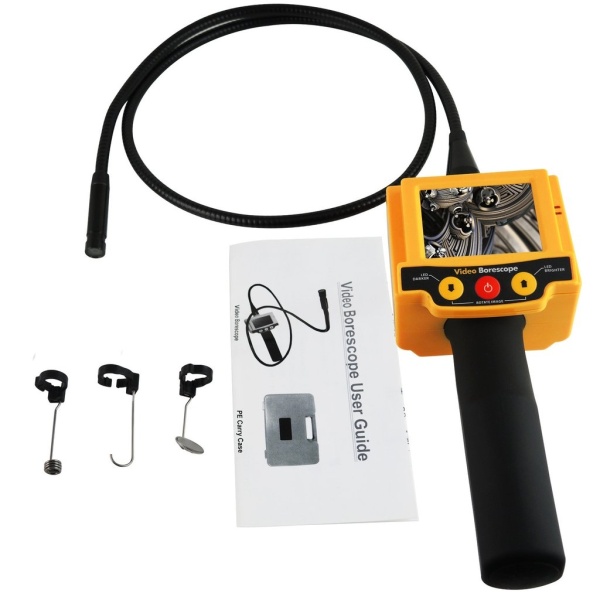

Industrial Video Borescope w/ Water Resistant Camera Head & LCD

2.4″ TFT LCD Video Borescope with 10mm camera tube diameter and two adjustable LED lights for viewing hard to reach areas. It has water-resistant camera head (IP67) and coloured monitor with 320 x 234 pixel resolution. The image can be rotated by 180° for a more detailed inspection. It has an LED power and battery indicator.

Wide range of application includes: Check car engine, Industrial field, Petrochemical Machinery, Gas pipes, Pest control, HVAC inspection, Aircraft inspection and more.

Features

• Glare-free close-ups and wide range field of view
• 6.8mm PE covered metal probe with ABS handle
• Water-resistant Camera Head
• Two white LED lights with brightness control
• F# 2.8 Lens with 54° Viewable Angle and 3~6cm focal distance
• 2.4″ TFT LCD Color Monitor with 320×234 pixels resolution
• High-resolution image, optical system, stable performance and easy to operate
• Allows 180° image rotation
• With Protective Rubber Housing, serves as a shock absorber when accidentally dropped
• High visibility colour LCD display
• Built-in high power adjustable LED’s light
• Lightweight, ergonomic design
• Fit for hard-to-reach distant inspection
• Shaft can be exposed to water, IP67 water level

Specifications

• LCD: 2.4″ TFT with 320 x 234 Pixels Resolution
• Lens sensor resolution: 640 x 480 Pixels
• Sensitivity: 1.8V (Lux.sec)
• Colour Mosaic: RGB Bayer pattern
• White Comparison: Automatic
• Exposure to light: Automatic
• Camera Illumination: 2 LED, white
• Lens: F# 2.8
• Viewable angle: 54°
• Focal distance: 3~6cm
• Outer diameter: 10.0mm
• IP67 water-resistant
• Probe Metal Tube Length: 88.0 ±2.0cm
• Metal Tube diameter: 6.8mm
• Minimum Bending radius: 4.5cm
• Ambient/Operation Temperature: 0 ~ 45°C
• Total Length of the device: 114.0 ±2.0cm
• Weight (excluding accessories): approx. 340gms

Set Includes

• 1 x Video Borescope with built-in probe
• 1 x Hook tip
• 1 x Mirror tip
• 1 x Magnet tip
• 1 x User’s Manual
