Handheld Wireless Professional Window Tint Meter

This Window Tint Meter is a handheld device that measures the amount of light that passes through a window.

It is used to measure the transmittance of light or haze of all kinds of transparent, translucent samples with a parallel plane (such as automobile manufacturing, aerospace, glass products, plastic sheeting, etc). You can also use it to determine the turbidity or clarity of liquid samples (water, drinks, etc).

Features

• Designed in accordance with GB 2410-80, ASTM D1033-61, JIS k7105-81 and other standards
• Wide measurement range
• Digital display with high resolution
• Solid structure, small volume, lightweight, exquisite, easy to carry
• Single / Continuous measuring mode
• Can set a 10-minute auto power-off function
• Zero Calibration
• Wireless design and User friendly
• One key calibration
• Measure the transmittance of ultraviolet light, visible light, and infrared light
• Use USB data output to connect with PC (cable and software not included in the set)

Specifications

• Display: 10mm LCD
• Resolution: 0.1
• Accuracy: ≤ 2%
• Range: 0~100% Light Transmission
• Wavelength: 550 Nanometers
• Interface: USB RS-232C
• Sample Thickness: ≤ 18mm / 0.7inch
• Light Source: LED
• Operating Temperature: 0~50°C
• Operating Humidity: < 90% RH
• Time of Testing: 4 seconds max
• Effects From Stray Light: Not Affected by Stray Light
• Lamp Life: 10 Years

• Size

• Main Unit: 141 x 65 x 38 mm
• Light Emitter: 70 x 62 x 52 mm

• Weight: 290g

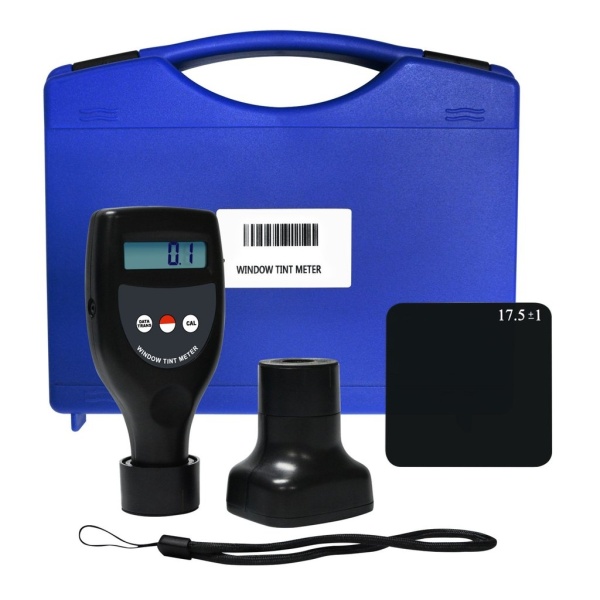

Set Includes

• 1 x Window Tint Meter
• 1 x Light Emitter
• 1 x Testing Block
• 1 x Instruction Manual

• Optional RS232 Software CD & Cable
