Digital EMF / RF / ELF Triple Axis Gauss Meter 50Hz-3.5GHz

Broadband EMF/RF Field Strength Meter

This broadband EMF/RF field strength meter is designed for monitoring high-frequency radiation, with a measurement range from 50MHz to 3.50GHz. It accurately measures the electromagnetic field value of radio frequencies and performs non-directional (isotropic) measurements using a three-channel sensor. The device’s high sensitivity allows for precise electric field measurements in TEM cells and absorber rooms, making it ideal for applications requiring reliable electromagnetic monitoring.

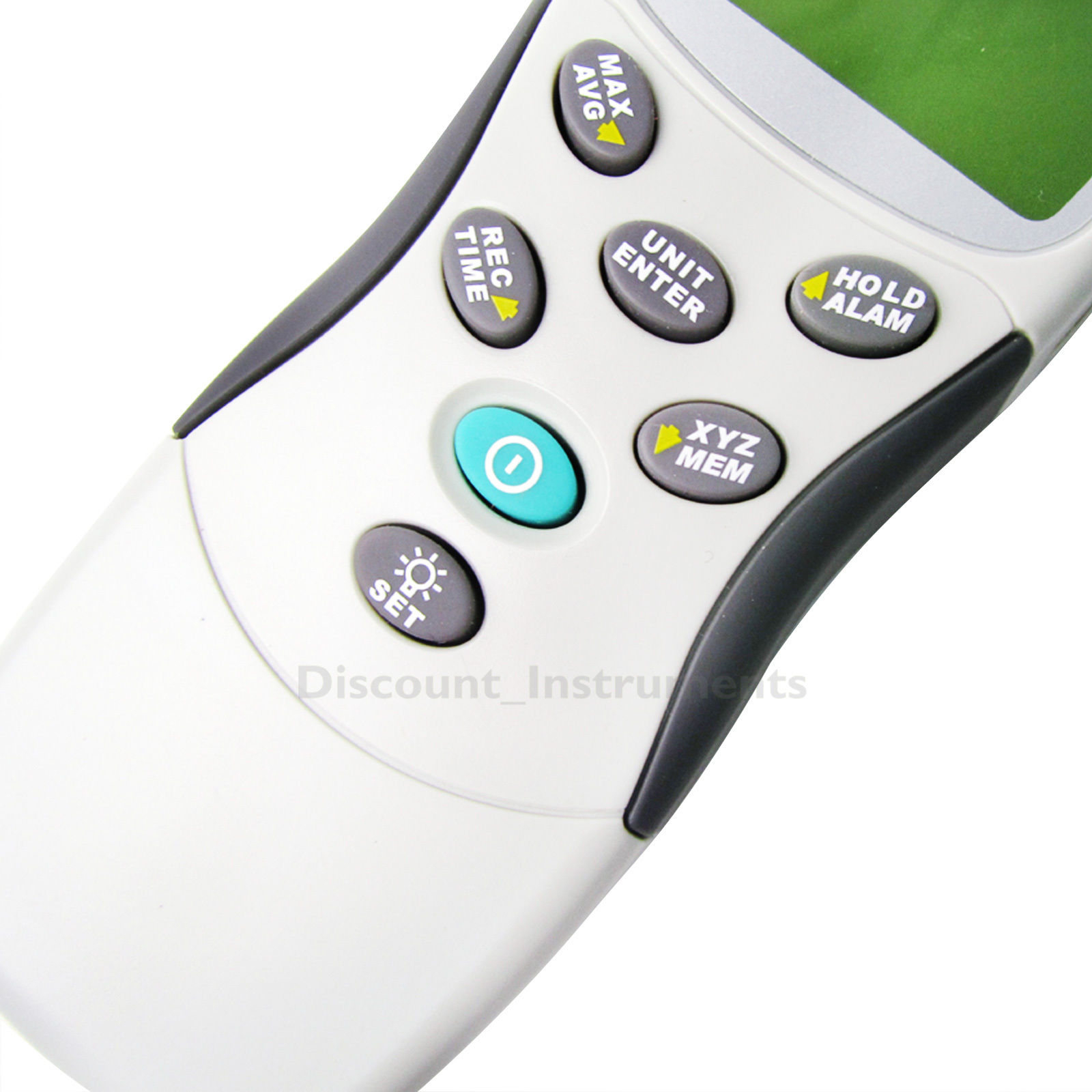

The meter features configurable alarm thresholds, memory functions, overload, low battery indicators, and an adjustable auto power-off setting. The user-friendly interface ensures easy and safe operation, with the ability to display instantaneous, maximum, or average measured values.

This versatile instrument is suitable for detecting artificial electromagnetic pollution in various environments, including radio broadcasting, TV transmitters, industrial, business, and home settings, where EMF fields can impact daily life even when imperceptible to the senses.

Applications

• High-frequency RF electromagnetic wave field strength measurement
• Mobile phone base station antenna radiation monitoring
• Wireless communication applications (CW, TDWA, GSM, DECT)
• RF power measurement for transmitters
• Wi-Fi detection and installation
• Spy camera and wireless bug detection
• Cellular/cordless phone radiation safety measurement
• Bluetooth monitoring
• Microwave oven leakage detection
• Personal environment EMF safety
• High dynamic range with 3-channel digital processing

Features

• 50MHz to 3.50GHz frequency range
• Isotropic, non-directional measurement with three-channel sensor
• High dynamic range via three-channel digital processing
• Configurable alarm thresholds and memory functions
• User-friendly, safe, and easy to use
• Low battery and overload indicators
• Adjustable auto power-off

Specifications

• Measurement Range: 38mV to 11V/m
• Display: 3-3/4 digit LCD, maximum reading 3999
• Frequency Range: 50MHz to 3.5GHz
• Measurement Units: mV/m, V/m, µA/m, mA/m, µW/m², mW/m², µW/cm²
• Display Resolution: 0.1mV/m, 0.1µA/m, 0.001µW/m², 0.001µW/cm²
• Directional Characteristic: Isotropic, Triaxial
• Setting Time: Typically 2 seconds (0-90% of measurement value)
• Measurement Range Selection: One continuous range
• Data Memory: 200 sets, manual recall
• Display Modes: Instantaneous, maximum, average, or maximum average value
• Alarm Function: Adjustable threshold with ON/OFF setting
• Calibration Factor: Adjustable
• Sampling Time: 1.5 times per second
• Operating Environment:
  • Temperature: 0 ~ 50°C (32 ~ 122°F)
  • Humidity: Max. 80% RH
• Battery Life: Approx. 50 hours
• Weight: 180g
• Dimensions: 220 x 60 x 60mm (including round ball diameter)
