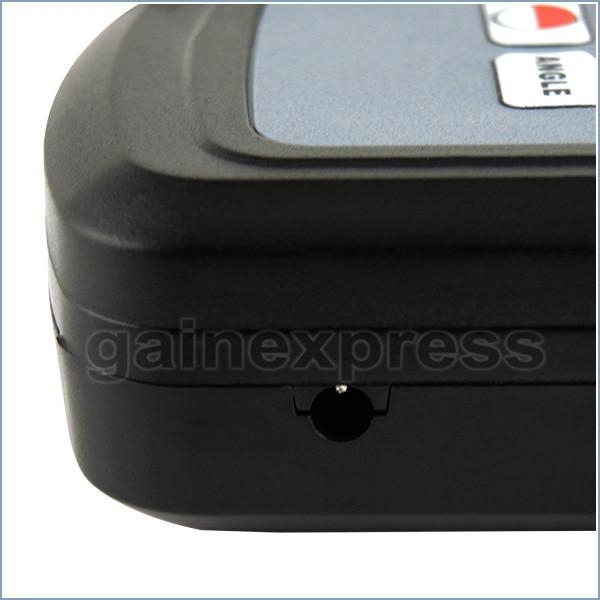

Compact & Portable Handheld 20 & 60 Degree Gloss Meter w/ 0.1 ~ 200 GU range and onboard Memory

This Compact and portable Gloss Meter is used to measure the specular reflection gloss of a surface. It has 20° and 60° measuring angles and is capable of saving up to 254 data points. Incredibly flexible to use with its separate probe this is an ideal tool for any measuring situation.

Widely used in floor maintenance, Surface Cleaning quality Control, Stone and tile gloss measurement, Checking printed materials, Quality control of paint and ink, Polished metal surface, measurement(chrome plating) inspection of paint protection and waxing, Auto-body paint inspection, surface inspection of plastic moldings, evaluation of detergents and washers, Checking masonry and building exteriors.

Features

• Flexible use with its separate probe
• Store up to 254 groups of data with measurement conditions
• Memory Recall function
• Can communicate with a pc by optional RS232C cable and software (not included in the set)
• Factory calibrated
• Auto power off to conserve battery when idle for 30 minutes

Specifications

• Display: 4 digits backlit LCD
• Measuring Geometry: 20° & 60°
• Range: 0.1 ~ 200 gloss unit (against reference standard)
• Resolution: 0.1 gloss unit
• Accuracy: ±1.0 gloss unit (against reference standard)
• Repeatability: ±0.5 GU (0…99.9)
• Measuring Area: 7 x 14mm ellipse
• Data memorized: 254 groups
• Data output: RS 232 C serial interface
• Working Condition:

• Temperature range: 0~40°C
• Humidity: up to 85%

• Dimension

• Main Unit: 146 x 67 x 28mm
• Sensor: 58 x 28 x 108mm

• Weight: about 300g

Set Includes

• 1 x Digital Gloss Meter
• 1 x External Probe
• 1 x Operation Manual
• 1 x Holder with calibration standard
• 1 x Optic Cleaning Cloth
• Carrying Case

• Optional RS232 Software CD & Cable
