Cable Continuity Tester & Wire Tracker w/ POE Tester

This device is a new generation cable tester offering digital and analog signalling all in one network toner and probe. It has three modes for options to track cables like digital mode, analog mode and PoE mode. That means it’s equipped with the most powerful cable location technologies for any work environment. Also, it includes cable length measurement, cable faults testing, PoE testing, hub blink and NCV function, this makes it a must have tool for cabling engineers.

Features

• Two scan modes are selectable: AC filter & Non AC filter.
• Detect AC voltage presence (50V-1000V).
• Test physical status for STP, UTP LAN cable.
• Measure cable length accurately with a 200m range.
• Hub blink for locating network port by the flashing port light on Hub / Switch. Available to 10M/100M/1000M Hub/ switch.
• PoE testing : Identify which pins are providing power and detect how much voltage, identify which the type of PSE (at/af standard).

Specifications

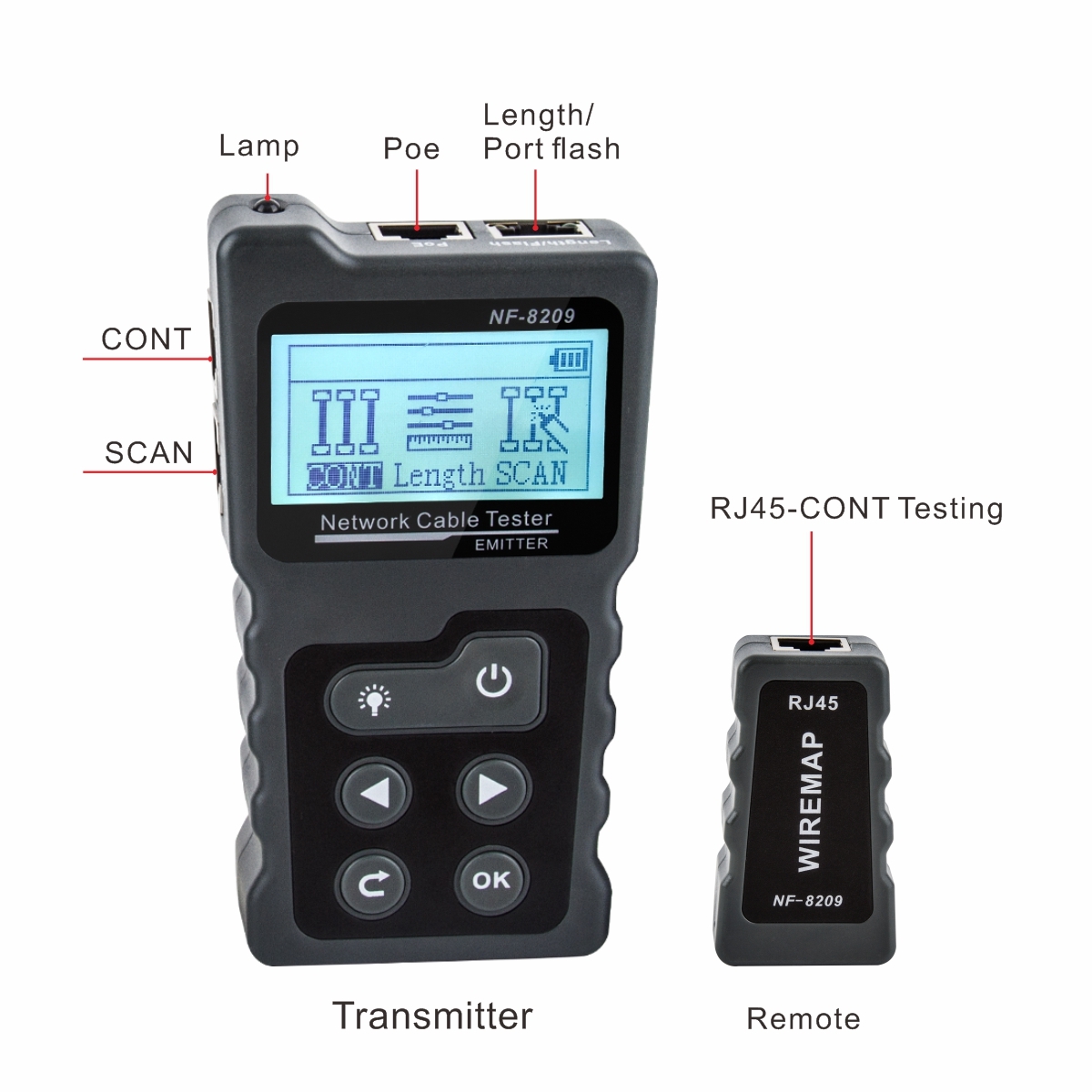

Transmitter

• Functions : wiremap, length test, cable scan, PoE testing, port flash, lighting function.
• Cable type: CAT5e,CAT6,CAT6a(STP&UTP)
• LCD display with backlight
• Auto off time: 15/30/60min/OFF
• Voltage protection: DC 48V 5mA
• Max working current: <150mA
• Size: 130*70*28mm

Receiver

• Sensitivity adjustable
• AC voltage detecting
• Lighting function
• Max working current:<100mA
• Size: 210*43*27mm

Set Includes

1 x Transmitter
1 x Receiver
1 x Remote Adapter
1 x Earphone
1 Set of Cable Adapters
1 x Carry Bag
1 x User Manual
