Anti Jamming Undergound Low/High Voltage Cable Detector

This low & high voltage anti-jamming underground cable detector is mainly used to detect cable location in underground, inside-walls, ceilings, flooring and other invisible cables. Has CE approval.

Locate power cable, coax cable, telephone cable, network cable, multi-core metal line, etc. The best tool for engineers for applications like:

• Cable wiring, weak current system of integrated wiring circuit
• Communication cabling, home decoration system
• Telephone system, computer network and other metal conductor fields
• Installation and maintenance of utility

Features

• Detect underground wire, wire inside-wall, ceiling, flooring or other invisible cables with high or low voltage via the alligator clip; the detection range is 0-2m deep and cable length is up to 10km
• Signal sensitivity is adjustable (0-2m) and low battery indicator for Emitter and Receiver
• Trace cable like single metal line, 2-core or multi-core cable, with no interference
• Cable lead can clamp cable with AC 220V~400V high voltage to avoid burning and damaging the device being tested
• Uses rechargeable lithium battery, alligator clip and telephone cable adaptor. Alligator clip and socket can be used at the same time.

Specifications

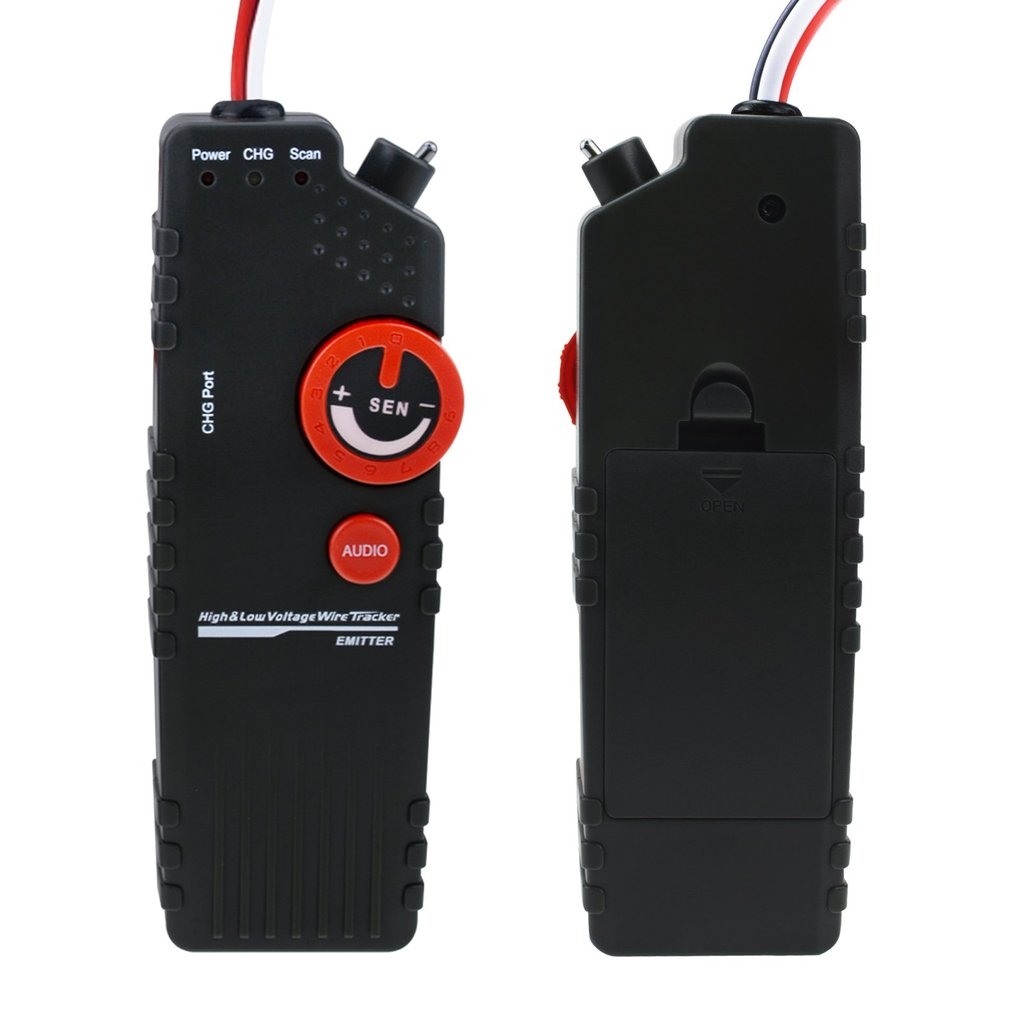

• Emitter

• Max distance of transmission: 10Km
• Max. depth distance: 2m
• Low voltage indication: ≤3.5V(LED will flash)
• Volume Regulate Function: Audio volume level control
• Signal transmission format: Multi-frequency pulse
• Charging current: 800mA
• Signal output: 21Vp-p
• Signal sensitivity distance: 0~2m
• Max. working current: ≤150mA ±10%
• Working temperature: -10~50°C
• Working humidity: 30~60%
• Weight: 210g
• Dimension: 150(L) x55(W) x34(H)mm

• Receiver

• Low voltage indication: ≤6V(LED will flash)
• Max. working current: ≤80mA ±10%
• Working temperature: -10~50°C
• Working humidity: 30~60%
• Weight: 110g

• Dimension: 255(L) x45(W) x28(H)mm

Set Includes

• 1 x Emitter
• 1 x Receiver
• 1 x USB cable
• 1 x Power adaptor
• 1 x Earphone
• 1 x English Manual
• 1 x Carry Pouch
