Advanced Multifunction Wire Tracker and Cable Detector

When cutting into a wall for installation of air conditioning or through the floor for installation of plumbing, or excavation for other purposes, you must know the layout of cables, water and gas pipes in the wall or ground to avoid damage or other unnecessary trouble.

This Cable detector assists users to locate and detect cables, meaning you no longer need to take unrequired risks when undertaking such work.

Features

• Contains advanced integrated parts and digital circuit technologies
• Highly stable and reliable electrical performance
• The emitter has integrated AC/DC voltmeter functions, capable of measuring 12 V to 400V voltage on a linear basis: alternating current: 12 V-400V (50 to 60 Hz) ± 2.5%; direct current: 12 V-400V ±2.5%
• The emitter screen displays preset transmitting power, transmitted codes, remaining battery, mains voltage, AC/DC status of mains voltage, and warning symbol for mains voltage
• The emitter has a self-inspection function capable of detecting its own working status
• The sensitivity of the receiver can be adjusted either manually or automatically.
• The receiver can scan frequencies automatically
• Both emitter and the receiver can work under mute mode.
• The receiver has automatic shutdown (It is powered off automatically over 15 minutes of the absence of keystroke)
• Backlit LCD screen for readable results in all available lighting situations
• Both the emitter and the receiver provide a flashlight function when working in dark areas
• Additional emitters are available to extend or distinguish several signals

Specifications

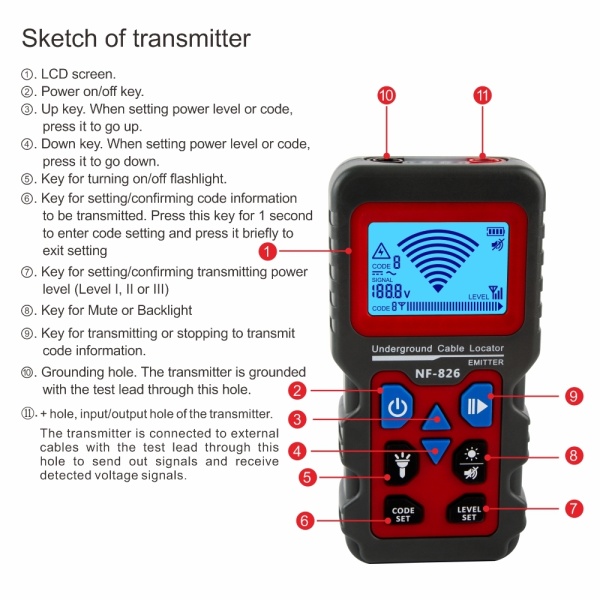

Transmitter

• LCD Screen: 52*35mmTN screen with backlight
• Adjustable transmitter signal codes: 6 types
• Adjustable transmitter signal amplitude: 3 degrees
• Transmitter signal frequency: 125KHz
• Signal Vp-p: <=8V
• Transmitter self-inspection: Yes
• Circuit voltage testing: AC:12~400V(50~60Hz)+/-2.5% DC:12~400V +/-2.5%
• Buzzer: Yes
• Mute: Yes
• Lamp: Yes
• LCD backlight: on/off
• Interface type: multimeter jack
• Charging voltage: DC5V
• Charging current: <600mA

Receiver

• LCD Screen: 52*35mmTN screen with backlight
• Acceptable transmitter signal codes: 6 types
• Acceptable transmitter signal amplitude: 3 degrees
• Received signal strength display: Yes
• Recognize low battery warning of transmitter: Yes
• Received signal frequency: 125KHz
• Max reception range: <=60cm
• Short circuit detection: Yes
• open circuit detection: Yes
• Automatic frequency sweep: Yes
• Reception mode: Manual / Auto
• NCV function: AC:50~400V(50~60Hz)+/-2.5%
• Buzzer: Yes
• Mute: Yes
• Lamp: Yes
• LCD backlight: on/off
• Charging voltage: DC5V
• Charging current: <600mA
• Auto-off time: 10 mins

Set Includes

1 x Emitter
1 x Receiver
2 x Alligator Clips (Black, Red)
2 x Test Cables (Black, Red)
1 x English User Manual
