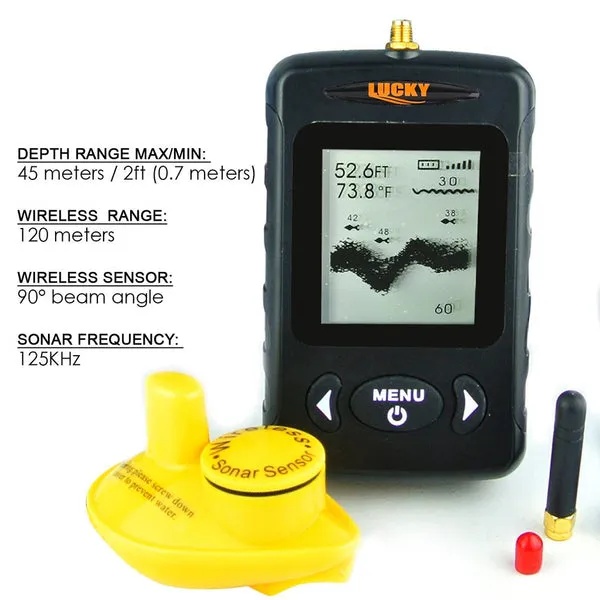

Portable Wireless Fish Finder Locator with 45m (135ft) Detection Range

Best for both amateurs and professionals! No wires, so you won’t need to worry about tangling with your lines. This Fish Finder can be used in oceans, rivers, lakes, ponds, reservoirs, or calm sea conditions. It’s fantastic for detecting schools of fish in any area. Scan a large area in just a few minutes, not just the water directly beneath the unit. Gain accurate depth readings in graphical format, displayed in units of depth.

How to Use the Fish Finder

• With Rod and Line / Roach Pole
• With Bait Boats

It has CE & RoHS approval, making it safe to use and environmentally friendly—perfect for both amateurs and professionals.

Features

• Detects both fish location and depth in fresh and saltwater
• Displays Fish Icon and Live-Update Water Bottom Contour (grass, sand, rock)
• Language options: English
• Detects and displays both big and small fish or groups of fish
• Resists interference from grass when used in lakes
• Adjustable chart speed, sensitivity level, and depth range
• Sonar sensitivity setting
• Audible fish and depth alarm
• Zoom at specified depth
• Battery indicator and signal strength for Wireless Sensor
• Simulation mode
• Built-in memory stores sonar settings

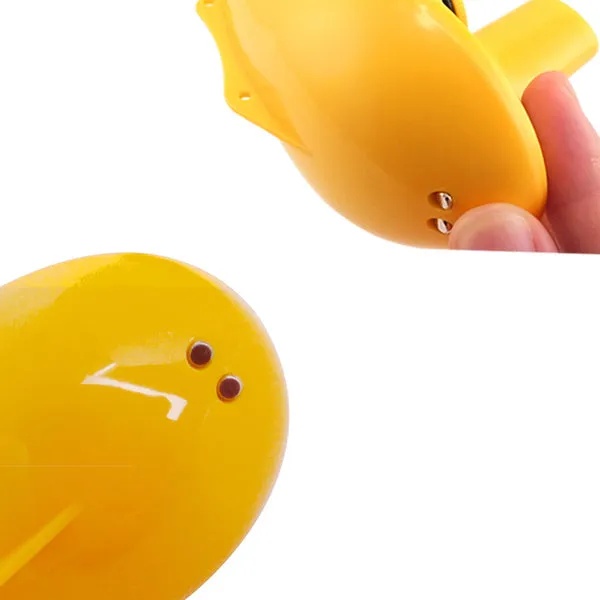

• Sensor auto-switches off when not in water
• CE & RoHS approved

Specifications

• Display: Adjustable High-contrast Dot Matrix FSTN LCD 128(V) x 64(H)
• Display Size: 41 x 48mm
• Backlight: White LED with on/off option
• Frequency: 433 MHz wireless, 125 kHz sonar
• Wireless Sensor Coverage: 90° beam angle
• Depth Range: 45 meters
• Wireless Operational Range: 120 meters
• Water Temperature: °C/°F
• Units: Meters or feet
• Built-in Memory: Stores sonar settings when the unit is turned off
• Operating Temperature: 14~122°F (-10~50°C)
• Storage Temperature: -4~158°F (-20~70°C)
• Battery Life of Wireless Sensor: Up to 550 hours in water usage
• Water Resistance: IPX4 Water Resistant Design / Level-4 (spray-water-proof)

Power Supply

• Main Unit: 4 x AAA Alkaline Battery (not included)
• Wireless Sensor: 1 x CR-2032 Button Battery (included)

Dimensions and Weight

• Size: Approx. 136 x 74 x 30mm
• Weight: Approx. 160g (main unit only)

Contact us if you wish to order this product with Russian language version.
