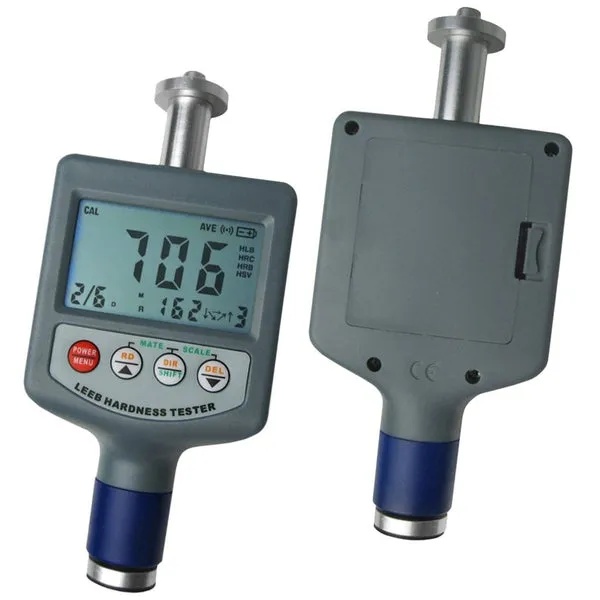

Portable Digital Rebound Hardness Tester Gauge

This digital hardness tester measures the hardness of sample materials in terms of Hardness Leeb (HL). It is a highly portable yet powerful and versatile tool for testing various metallic materials, including steel, cast steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum, brass, bronze, and copper alloys. With high accuracy, it is suitable for use under tough working conditions. The tester can perform tests at any angle, even upside down. Additionally, a thermal mini-printer can be attached for fast on-site printing of results.

Applications

• Die cavity of molds
• Inspection of bearings and other mass-produced parts on production lines
• Failure analysis of pressure vessels, steam generators, and other equipment
• Testing of heavy workpieces, installed machinery, and permanently assembled parts
• Surface testing of small hollow spaces
• Material identification in warehouses of metallic materials
• Rapid testing over large areas for large-scale workpieces

Features

• Palm-sized for use in narrow spaces
• Test at any angle, even upside down
• Direct display of hardness scales: HRB, HRC, HV, HB, HS, HL
• Large memory capable of storing 50 groups of data, including measured values, impact direction, material, and hardness scale
• User recalibration function
• Average times setting
• Durable metal case and hardness scales
• Includes D type impact device and D type calibration block
• Large LCD screen with backlight, displaying all functions and parameters
• Battery indicator showing remaining battery capacity
• Optional software available for PC connection via RS232 port for statistics and printing
• Manual or auto power-off function

Specifications

• Measuring Range: 200-900L
• Impact Directions: Up, down, horizontal, slanting up, slanting down
• Impact Device: D type (handles the majority of hardness testing applications, weight: 75g)
• Measuring Materials: 9 different common materials (Steel and cast steel, cold work tool steel, stainless steel, grey cast iron, nodular cast iron, cast aluminum alloys, brass, bronze, wrought copper alloys)
• Display: 12.5mm LCD with backlight
• Accuracy: Display error ±0.8% at LD=900
• Conversion: HL-HRC-HRB-HB-HV-HSD
• Interface: RS232C
• Memory: 50 data sets can be stored and re-read
• Work Voltage: 3V (2 x 1.5V AAA size batteries)
• Working Temperature: -10~50°C
• Storage Temperature: -30~60°C
• Relative Humidity: ≤90%
• Dimensions: 146 x 65 x 36mm
• Weight: Main unit: 140g (excluding batteries); Test workpiece: 6.2lbs; Whole set with hard carrying case: 8.5lbs (excluding batteries)
