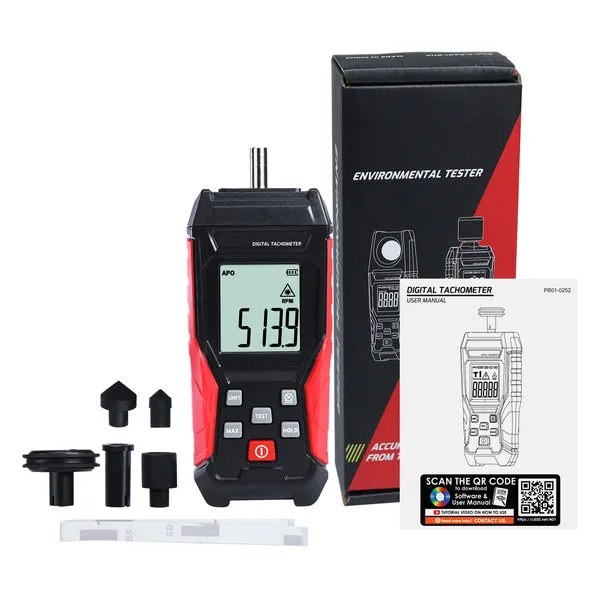

Portable 2-in-1 Tachometer with Noncontact Laser Photo Sensor

Enhance your measurement accuracy with our advanced Tachometer. This versatile device combines contact and non-contact methods, providing a broad RPM range suitable for various applications. With a precision of ±0.05%, it is ideal for automotive diagnostics, industrial machinery, HVAC systems, and more. The tachometer’s effective measuring distance of 50~500mm and a quick 0.8s sampling time ensure efficient and reliable RPM readings.

Features

• 2-in-1 Contact & Non-contact measurement
• Backlight and low battery indicator
• Data HOLD function
• MAX/MIN measurement
• Real-time measurement
• Auto power-off after 15 minutes of inactivity (can be disabled for continuous measurement)

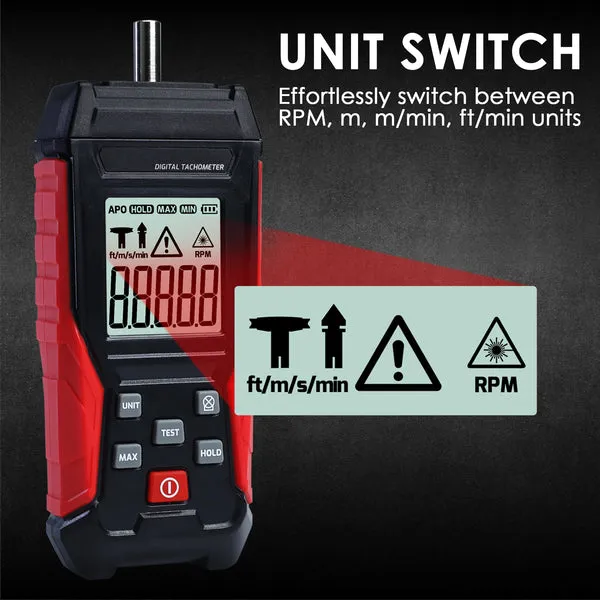

• Switch between m, m/min, and ft/min effortlessly

Specifications

• Measuring Range:
  • Non-contact type: 3~100000RPM

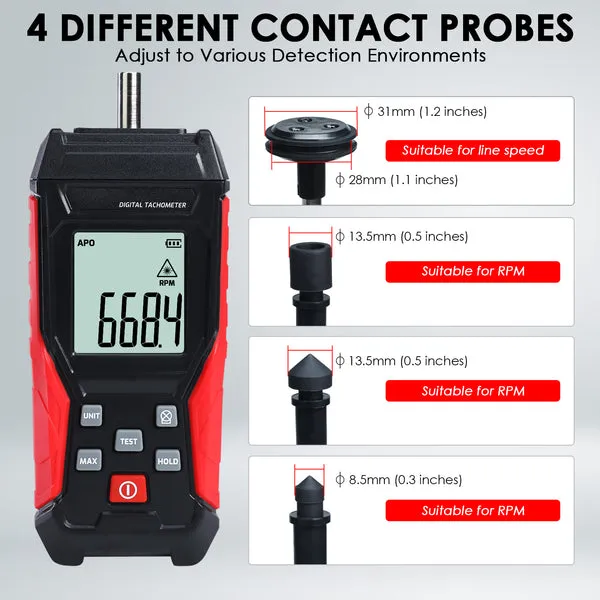

  • Contact type:
    • 3~19999RPM
    • 0~99999m
    • 0~1999.9m/min
    • 0~9999.9ft/min
• Accuracy:
  • Non-contact type: ±(0.05%FS+1RPM)
  • Contact type: ±(0.1%FS+1RPM)
• Resolution:
  • RPM:<10000:0.1
  • RPM: ≥10000:1
  • m: <10000:0.1
  • m: ≥10000:1
  • m/min: <2000:0.1
  • ft/min: <1000:0.1

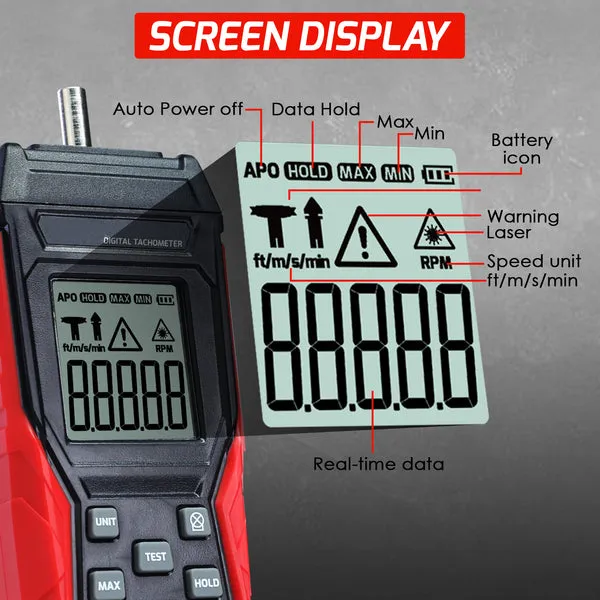

• Display: 6 digits, max 99999
• Effective measuring distance: 50~500mm
• Sampling time: 0.8s (above 60rpm)
• Working Environment: -10~50°C, max 80%RH, indoor altitude <2000m
• Storage Environment: -10~50°C, max 70%RH (battery removed)
• Screen size: 34 x 31mm
• Power Source: 2 x 1.5AAA (R03/LR03)
• Weight: approx. 120gms (battery not included)
• Dimension: 146 x 59 x 29mm
