Paint Thickness Meter Mil Coating Depth Gauge Tester with Fe/N

The paint film instrument is an advanced tool designed for inspecting the thickness of automotive paint. It offers a range of features to enhance its usability and accuracy. The device can automatically detect the type of body material, including iron, aluminum, or non-metal. It uses an intelligent identification algorithm to detect vehicles that have been repaired with metallic putty and can identify high-grade anti-corrosion galvanized-iron bodies. The instrument features a high-definition LCD screen and an ultra-low temperature LCD screen, allowing for use in bright light and extreme temperatures down to -40°C. Its dual-screen design ensures easy readability from various angles during car inspections.

Features

• Quick detection of metallic putty
• Automatically identifies non-metal car bodies, ferrous putty layers, and galvanized iron
• Dual display design for real-time viewing of test data from different angles

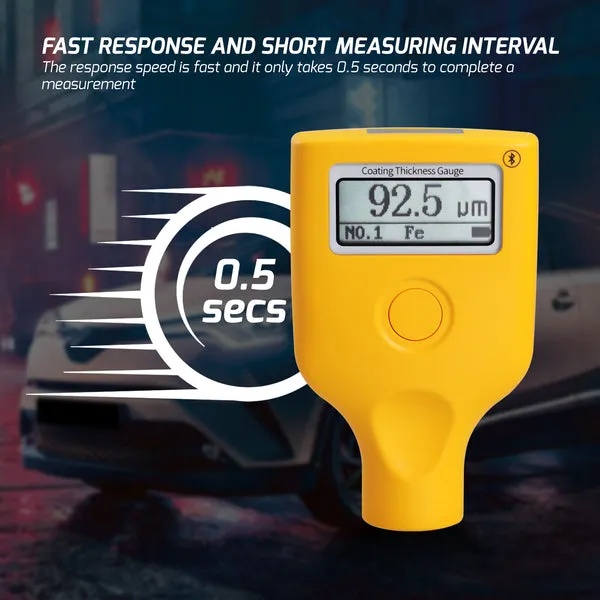

• Fast response time
• High-quality Ruby probe with advanced digital probe technology
• Switchable thickness measurement unit (μm / mil)
• Zero adjustment and no calibration needed
• Single button operation
• Real-time quick measurement
• Wear-proof ruby probe tip for long-term use
• Three measurement mode settings: Ferrous substrate measurement (Fe), Aluminum substrate measurement (Al), and Auto identification (Fe/Al)
• Measures non-magnetic coating thickness on metal substrates and non-conductive coating thickness on non-magnetic metal substrates
• Non-slip groove design for comfortable grip
• Different color backlight according to the measured thickness:
  • White backlight: Measured paint thickness is between 30~170μm
  • Yellow backlight: Measured paint thickness is between 170~350μm or <30μm
  • Red backlight: Measured paint thickness is >350μm
• Stores up to 9 sets of historical data
• Equipped with built-in Bluetooth communication for mobile app connectivity

Specifications

• Dual Display:
  • Front: 128 x 48 dot matrix LCD
  • Top: 128 x 64 dot matrix OLED
• Probe tip: Ruby
• Probe type: Built-in integrated probe
• Measuring principle:
  • Fe: Hall Effect
  • NFe: Eddy current
• Measuring range: 0.0~3500μm
• Resolution:
  • 0.1μm: (0μm – 99.9μm)
  • 1μm: (100μm – 999μm)
  • 0.01mm: (1.00mm – 3.00mm)
• Accuracy: ≤±(3%H+2μm), H is the standard value
• Measuring sampling interval: 0.5s
• Minimum measuring area: Ø = 25mm
• Minimum curvature:
  • Convex: 5mm
  • Concave: 25mm
• Minimum substrate thickness:
  • Fe: 0.2mm
  • NFe: 0.05mm
• Power supply: 2 x 1.5V AAA Alkaline battery
• Operating Temperature: -40~50℃
• Storage Temperature: -50℃-60℃
• Dimension: 100 x 60 x 24mm
• Weight: approx. 80gms including battery
