Network Cable Tester and Wire Tracker for Professional Use

This professional networking cable inspection device is designed for wire tracing, cable order verification, and wiring fault inspection. It is an essential tool for technicians involved in the installation and maintenance of low-current systems such as communication lines and comprehensive wiring circuits. Suitable for telephone systems, computer networks, and other metal wire circuits, this device allows a single person to perform complete cable networking inspections.

Features

• Chargeable and anti-interference
• Long-distance wiring tracing
• Cable order verifying
• Wiring voltage checking
• Wiring voltage polarity checking
• Wiring shorts inspection
• Low battery indicator
• Adjustable tracing sensitivity/volume

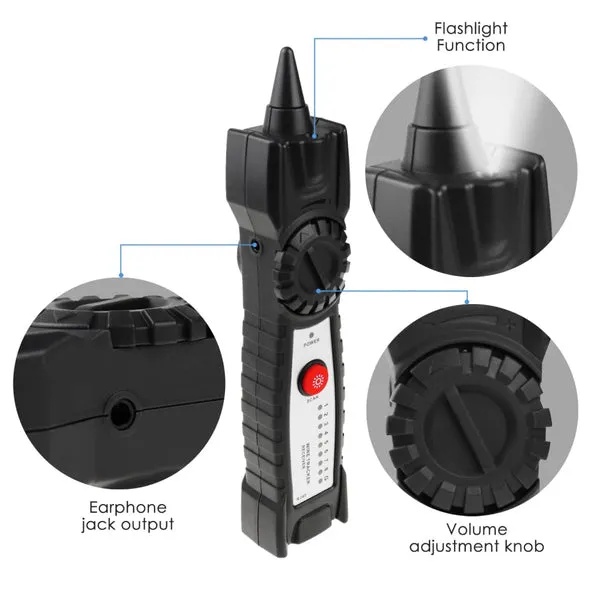

• Earphone jack output
• Flashlight

Specifications

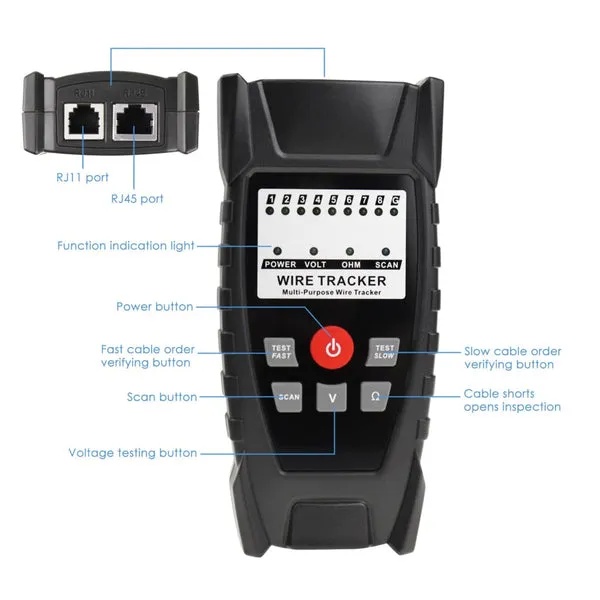

• Basic Function:
  • Wire Tracing function (SCAN)
  • Cable order verifying (TEST)
  • Line voltage test (V)
  • Short circuit test (Ω)
• Two manners of testing:
  • Fast line testing
  • Slow line testing
• Signal Tracing Transmit Distance: >1km
• Display: LED
• Operating Environment: -10 ~40℃ (14 ~ 104℉); 10-95%RH
• Storage Temperature: -10 ~40℃ (14 ~ 104℉)
• Transmitter:
  • Power Source: 3 x 1.5V AAA battery
  • Weight: 138g
  • Dimension: 63 x 134 x 31mm
• Receiver:
  • Power Source: 6F22 9V battery
  • Weight: 119.9g
  • Dimension: 40 x 200 x 32mm
