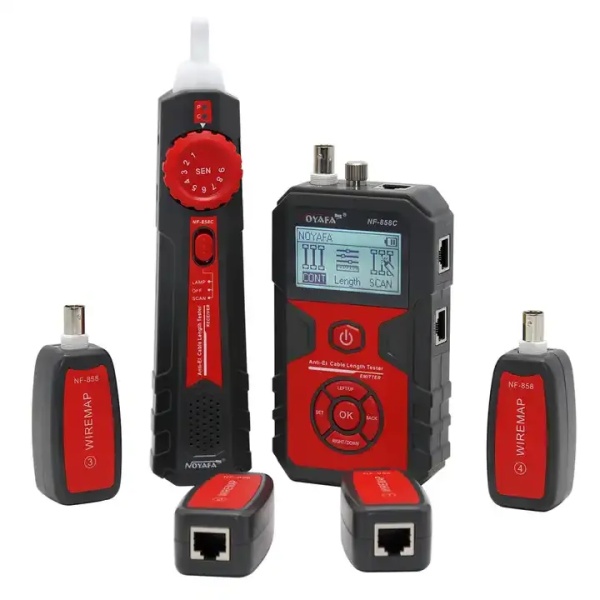

Multifunction LCD Cable Tester with Cable Continuity Testing, RJ11/RJ45/BNC/USB Tracing, and Anti-Interference

The Multifunction LCD Cable Tester is an advanced tool designed for professionals who need to trace, test, and troubleshoot various types of cables. Whether working with RJ11, RJ45, BNC, or USB cables, this versatile tester ensures accuracy and efficiency for both data and telephone lines, as well as coaxial cables.

Features & Benefits

• All-in-One Cable Tester: Run cable continuity tests for RJ45 network cables, RJ11 telephone lines, and coaxial cables. The tester provides a wire map and fault detection in real-time on the LCD screen for easy diagnostics.
• Multitasking Capability: Test up to four cables simultaneously using the four included remote units, making multi-cable testing quick and effective.
• Tone Tracer: Trace the location of a cable even if it’s live by using the built-in tone tracing feature, which identifies the port or cable’s endpoint.
• Fiber Optic Testing: Easily detect breakpoints in fiber optic cables with the built-in red light, allowing you to find and fix issues with precision.
• Port Locator: The tester can send a flashing signal to the connected Ethernet port, making it easy to identify the correct port.
• Ethernet Power Detection: Detect active Ethernet ports and measure the voltage of the power being supplied to ensure proper functionality.
• Length Measurement: Measure the length of network and coaxial cables accurately, helping you troubleshoot or plan installations more efficiently.

Specifications

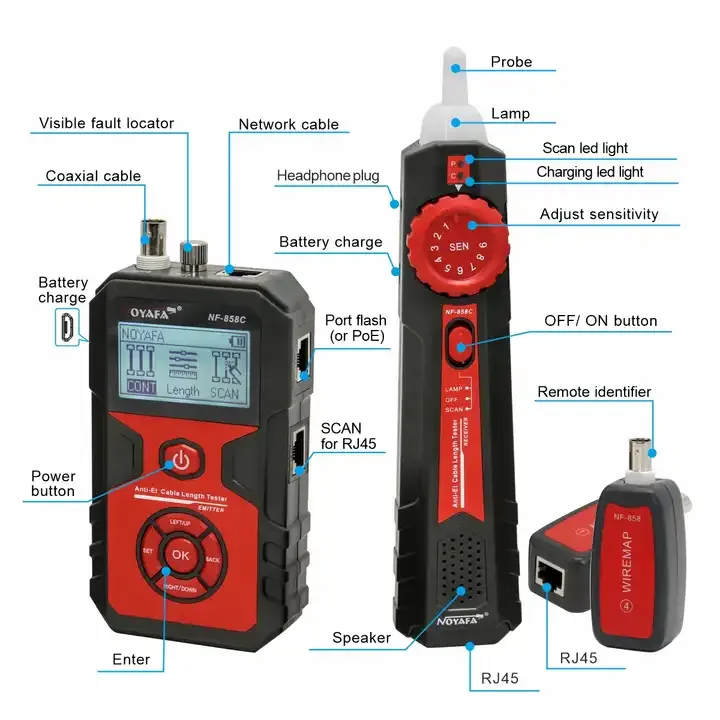

Transmitter

• Display: 58x40mm LCD with backlight
• Tone Frequency: 130 KHz
• Max Distance for Tracing: 6,562ft / 2,000m
• Max Distance for Cable Map: 6,562ft / 2,000m
• Compatible Cable Types: CAT5, CAT6, Coaxial
• Connectors: RJ45, BNC, VFL, Micro USB
• Max Signal Voltage: 9 ±1 Vp-p
• LCD Display Functions: Length, wire map, scan, short, no adapter, low battery
• Test Record Storage: 6 groups
• Battery Type: 3.7V 1,000mAh lithium battery
• Dimensions (LxWxD): 135 x 78 x 35mm / 5.3 x 3.1 x 1.4 inches

Receiver

• Frequency: 130 KHz
• Low Battery Indicator: 3.5 ±0.2V
• Battery Type: 3.7V 1,000mAh lithium battery
• Dimensions (LxWxD): 203 x 45 x 33mm / 8.0 x 1.8 x 1.3 inches

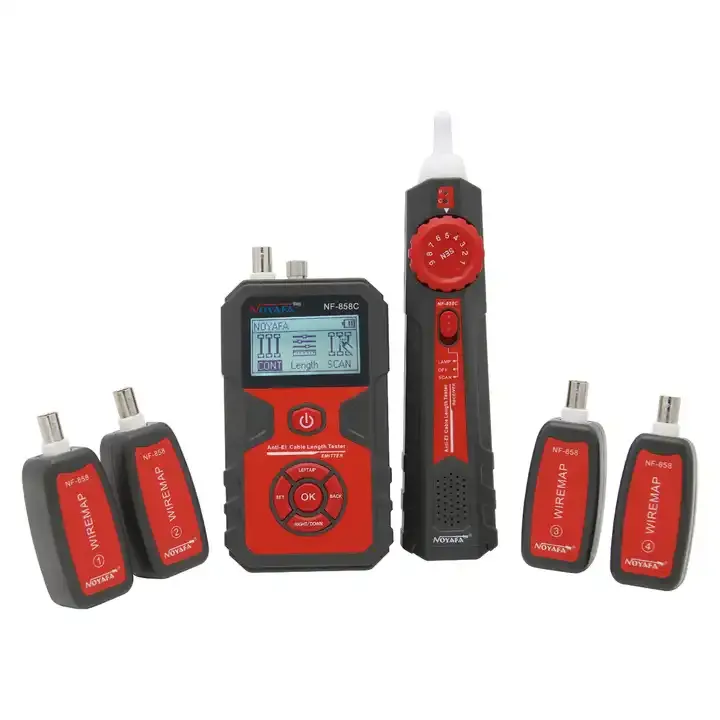

Remote Unit

• Compatible Connectors: RJ45, BNC
• Remote Units: 4 pieces included
• Dimensions (LxWxD): 107 x 30 x 24mm / 4.2 x 1.2 x 0.9 inches

The Multifunction LCD Cable Tester is a powerful, multi-purpose tool designed to simplify your cable testing and tracing tasks. Its user-friendly interface and robust features make it ideal for technicians handling complex wiring systems.
