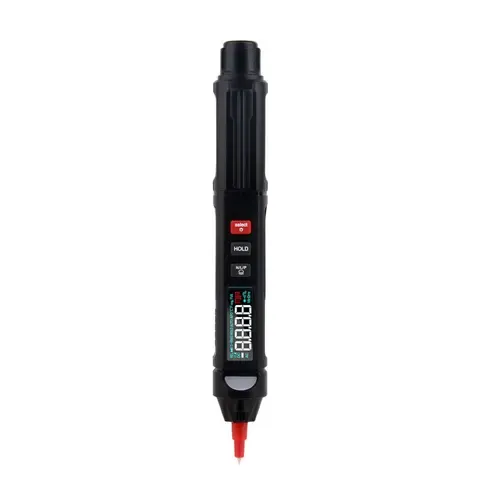

Mini Pen Multimeter with NCV Non-Contact Voltage Detection

The Mini Pen Multimeter with NCV (Non-Contact Voltage Detection) offers a compact and convenient solution for measuring current, voltage, resistance, capacitance, and more. With its slim design and high-performance features, this multimeter is perfect for both professionals and DIY users.

Features & Benefits

• High-Precision Measurements: Offers measurement ranges of 700V AC voltage, 1000V DC voltage, 60MΩ resistance, and 60mF capacitance, providing ±(0.5%+4) and ±(3.5%+20) accuracy for precise readings.
• Non-Contact Voltage Detection (NCV): Ensures safe and convenient voltage detection without direct contact, along with live/null line testing capabilities.
• Clear LCD Display: 3 5/6 digit color reverse display screen with a maximum count of 5999, ensuring clear and accurate readings with automatic polarity display.
• Continuity & Diode Testing: Equipped with a continuity test function to quickly check circuit connections, along with diode and frequency measurement capabilities.
• Sampling Rate: Fast sampling rate of approximately 3 times per second, enabling real-time updates of measurements.
• Flashlight & Signal Light: Built-in flashlight for working in low-light conditions and two-color signal lights for added visual indicators during testing.
• Portability: Lightweight at just 80g, with dimensions of 171mm*24mm*21mm, making it easy to carry and handle.
• Certifications: Passes RoHS, FCC, and CE compliance testing, and Noyafa is certified to the ISO 9001 standard, ensuring reliable quality and performance.

Specifications

• Current Measurement: 700V ±(0.5%+4)
• Voltage Measurement: 1000V ±(0.5%+4)
• Resistance Measurement: 60MΩ ±(0.8%+5)
• Capacitance Measurement: 60mF ±(3.5%+20)
• Operating Temperature: (-20~50)℃ ±(1%+5)
• Battery: 1.5V AAA x 1
• Dimensions: 171mm*24mm*21mm
• Weight: 80g
• Sampling Rate: About 3 times per second

The Mini Pen Multimeter is the ideal tool for anyone needing fast, reliable, and accurate measurements in a portable design, ensuring efficient testing on the go.
