Hardness Meter, Instruments
Leeb Hardness Tester Meter Gauge (170~960 HLD) with 100 Group Data Memory
Availability:
In stock
$1,682.41 $2,226.73
In stock

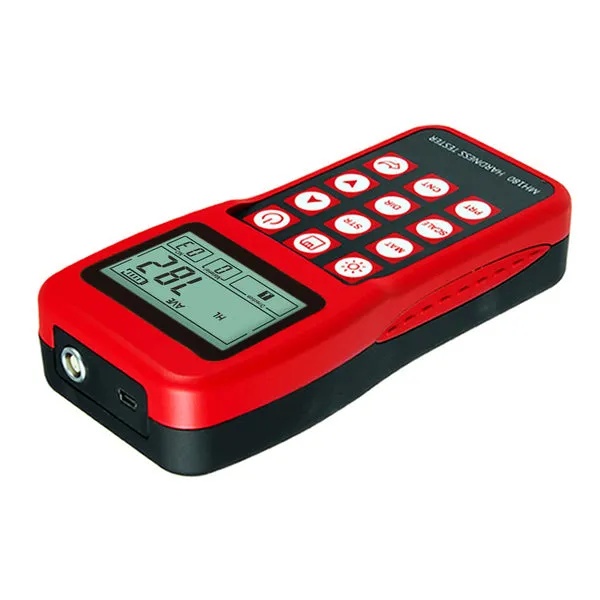

Leeb Hardness Tester Meter Gauge (170~960 HLD) with 100 Group Data Memory
The MH180 portable Leeb hardness tester is based on the Leeb hardness measuring principle, providing quick and easy on-site testing of various metal materials. It supports free conversion between Leeb, Brinell, Rockwell hardness scales, making it ideal for regular hardness testing in industrial production. This economical model is a practical choice for reliable measurements.
Applications:
- Die cavity of molds
- Bearings and other parts
- Failure analysis of pressure vessels, steam generators, and other equipment
- Heavy workpieces
- Installed machinery and permanently assembled parts
- Testing surfaces of small hollow spaces
- Requirements for formal original records of test results
Features:
- Material identification in warehouses for metallic materials
- Rapid testing across a large range and multi-measuring areas for large-scale workpieces
- Measuring range of 170 to 960 HLD with 360-degree measuring direction
- Memory capacity to store 100 groups of information, including single measured values, mean values, impact direction, impact times, material type, and hardness scale
- Continuous working period of no less than 100 hours with two AA alkaline batteries; auto power-off to save energy with low power consumption
- Capable of testing various types of metals with single-point calibration
- Large LCD screen with EL background light, displaying all functions and parameters
- Displays and converts among various hardness scales (HRB, HRC, HV, HB, HS, HL)
- Wide measuring range allows testing at any angle, even upside down
- Seven impact devices available for special applications, automatically identifying the type of impact devices used
- Battery information showing remaining capacity
- Software calibration function for enhanced accuracy
- PC connectivity via RS232 software and USB cable (not included) with micro printer support
- Compact plastic case designed for use in harsh working conditions
Technical Specifications:
| Parameter | Details |
|---|---|
| Measuring Range | 170 ~ 960 HLD |
| Measuring Direction | 360° |
| Hardness Scale | HL, HB, HRB, HRC, HRA, HV, HS |
| Display | Dot matrix LCD, 128×64 dots |
| Data Memory | Up to 100 groups (relative to impact times 32 ~ 1) |
| Battery Pack | 6V Ni-MH |
| Battery Charger | 9V / 500mA |
| Continuous Working Period | Approximately 100 hours (with backlight off, no printing) |
| Communication Interface | USB 1.1 |
| Dimensions | 212 mm × 80 mm × 32 mm |
