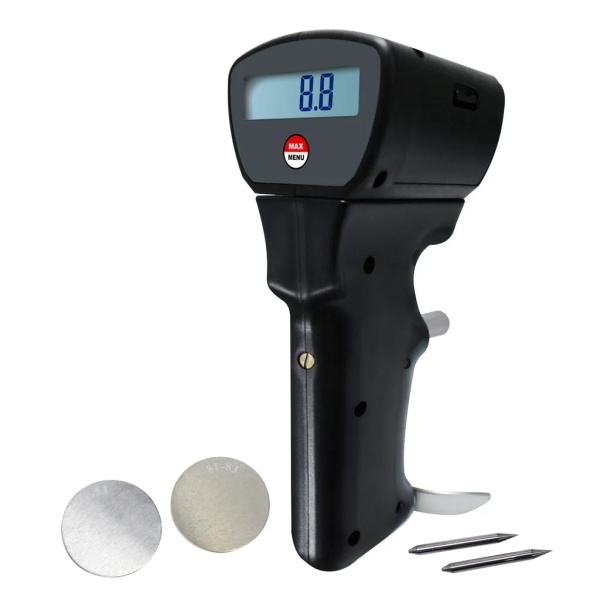

Indentation Hardness Tester for Aluminum with 0~100Hba Range

The Indentation Hardness Tester is a versatile and portable tool designed for measuring the hardness of materials such as aluminum, aluminum alloys, copper, fiber-reinforced plastics (Glass Steel), non-reinforced hard plastics, and more. It operates by pressing a specially shaped pressure pin into the sample surface with standard spring pressure, with the hardness value determined by the indentation depth.

Features

• Balanced positioning with digital display for accurate hardness readings
• Simple calibration without the need for disassembly
• High stability and detection accuracy
• Portable one-hand operation for ease of use
• Wide test range suitable for soft pure aluminum to hard aluminum alloys
• Effective testing range equivalent to Brinell Hardness of 25~150HB
• Capable of testing from one side of the sample without support
• Barcol Hardness can be measured, with other hardness values calculable via experimental curves
• Max hold function for recording maximum hardness reading
• Auto or Manual Power Off feature for convenience
• Battery strength indicator for monitoring power levels
• Conforms to industry standards: ASTM B648-00, ASTM HD2583-07, GB/T 3854-2005
• Bluetooth data transmission capability (adapter and software not included)

Specifications

• Measuring Range: 0~100HBa, equivalent to Brinell hardness of 25~150HB
• Resolution: 0.1HBa
• Indication Error: 81~88HBa ±1HBa / 42~48HBa ±2HBa
• Repeatability Error: 81~88HBa ±1.5HBa / 42~48HBa ±2.5HBa
• Operating Conditions: 0~50°C, <80% RH
• Power Supply: 2 x 1.5V AAA Batteries
• Size: 170 x 63 x 82mm (6.7 x 2.5 x 3.2 inches)
• Weight: 390g (0.859 lbs, excluding batteries)
