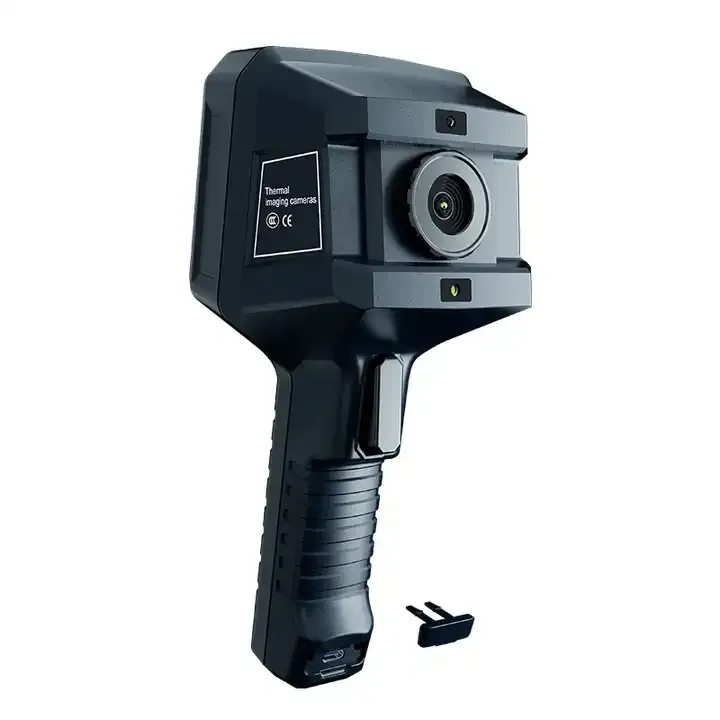

High-Resolution Thermal Imager with PC Software Analyzer for Fault Maintenance

Product Description

The High-Resolution Thermal Imager is a high-precision infrared thermal imaging handheld device designed for capturing detailed temperature images of target objects. It features both infrared thermal imaging and visible light modes, allowing for clearer and more comprehensive analysis by combining the temperature data of each pixel with the visible state of the object.

Main Functions

• 3.5-inch TFT LCD Display: Large, clear display for easy viewing of thermal images.
• Temperature Measurement Mode: Includes center point, high and low temperature tracking for accurate monitoring.
• Wide Temperature Range: Capable of measuring temperatures from -10°C to 450°C.
• High Resolution: 256*192 pixel resolution with a 56°x 42° Field of View (FOV).
• Eight Color Palettes: Optimized for different scenes to enhance image clarity and detail.
• Multiple Image Display Modes: Real-time image display with options like edge fusion, superimposed fusion, and picture-in-picture.
• PC Analysis Software: Facilitates detailed analysis and reporting of thermal data.
• Adjustable Emissivity: Allows for accurate temperature measurements across various materials.
• Rechargeable Battery: Equipped with a 3.7V 2600mAh lithium battery for extended use.
• Durable Design: IP54 rated for water and dust resistance with a two-meter drop-proof design.

Technical Specifications

• Infrared Temperature Measurement:
  • Resolution: 256*192 pixels
  • Infrared Spectral Bandwidth: 8~14μm
  • Frame Rate: 25Hz
  • NETD: <70mK @ 25°C
  • Field of View (FOV): 56° x 42°
  • Emissivity: Adjustable from 0.1 to 0.99
  • Temperature Measurement Range:
    • Low Temperature: -10~150℃
    • High Temperature: 120~450℃
  • Measurement Accuracy: +/-2℃ or +/-2% of reading
• Image Modes: Edge fusion, superimposed fusion, picture-in-picture, single infrared, single visible light
• Color Palettes: Iron Red, Rainbow, Red Hot, Black Hot, White Hot, High Contrast, Green Hot, Lava Pattern
• Temperature Measurement Points: Supports highest, lowest, and center point temperature measurement across the screen and specific regions.
• Visible Light Camera:
  • Resolution: 720P
  • Field Angle: H=83°, V=55°
  • Resolution: 1 million pixels
• Interface: USB Type-C (Supports charging and data transfer)
• Battery: 2600 mAh lithium battery
• Memory: 8GB built-in memory
• Image / Video Format: JPEG/Mp4
• Automatic Shutdown: Yes
• Certification: CE
• Operating Temperature:
