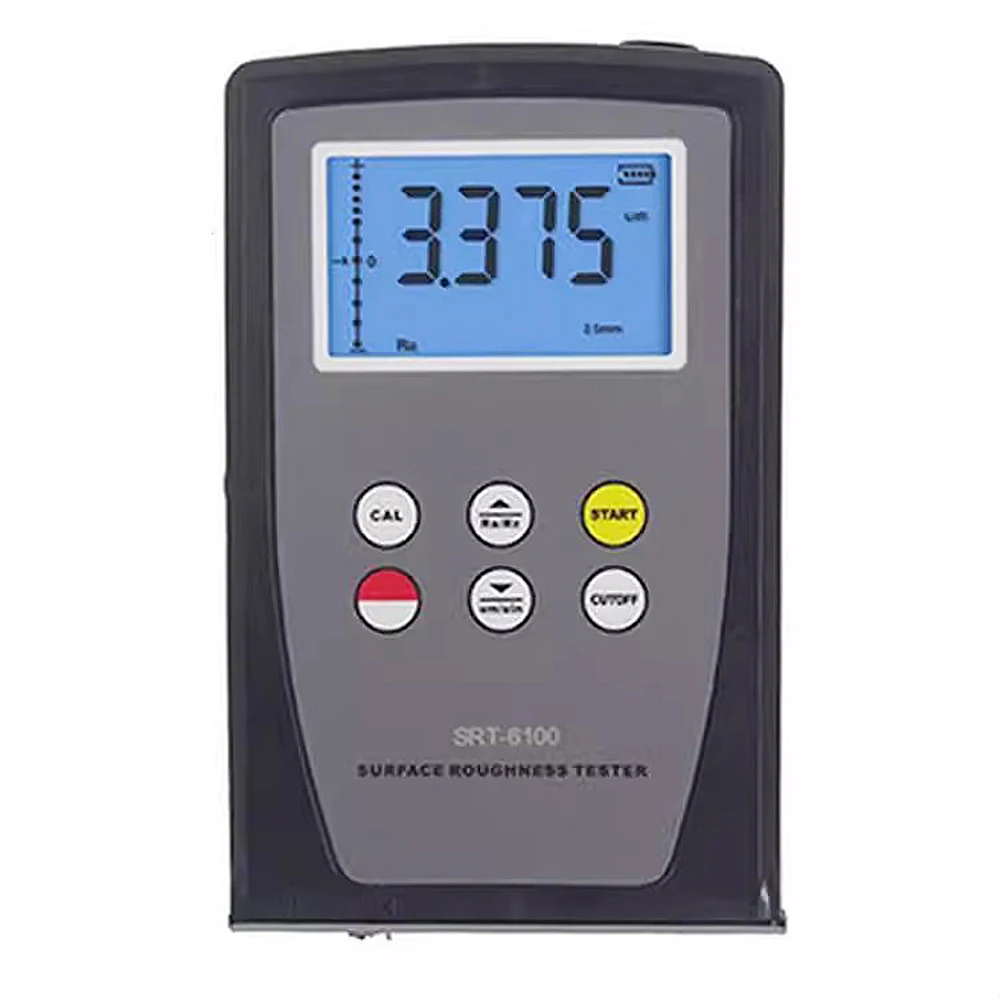

High Accuracy Portable Surface Roughness Tester (Rz, Ra)

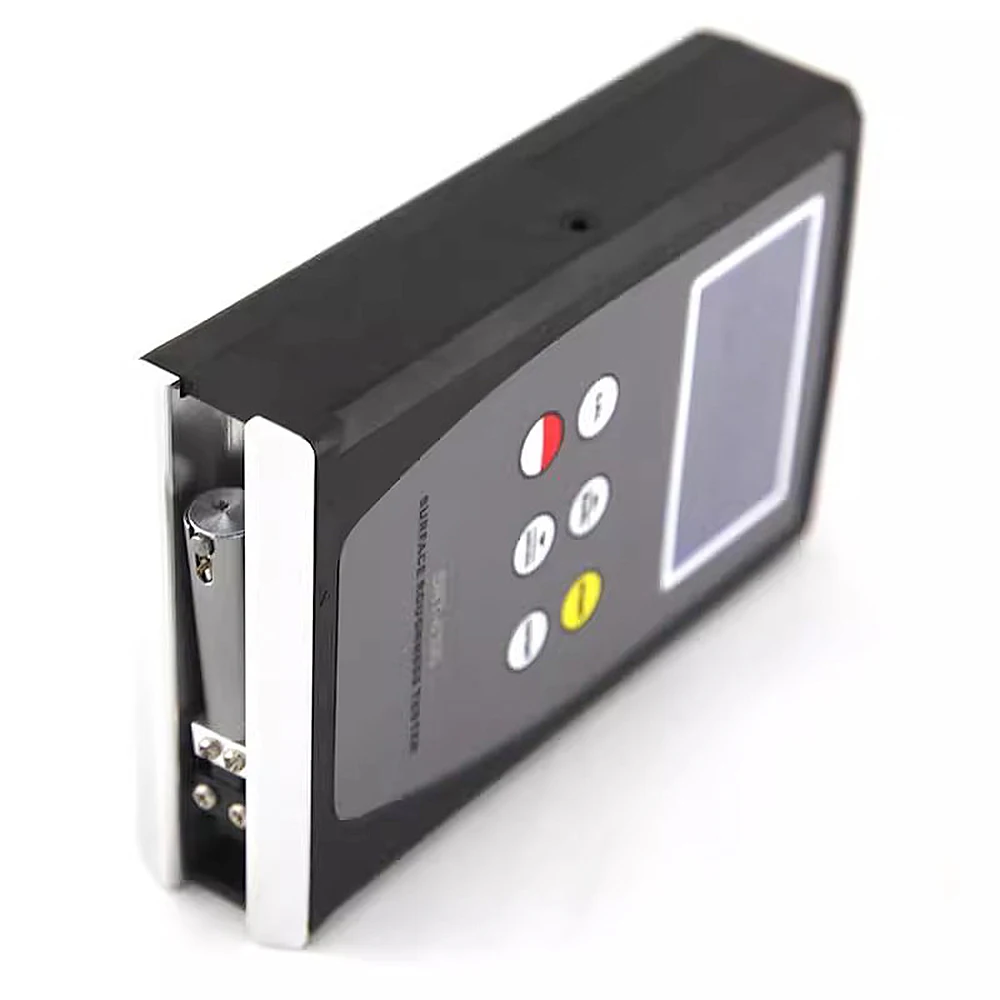

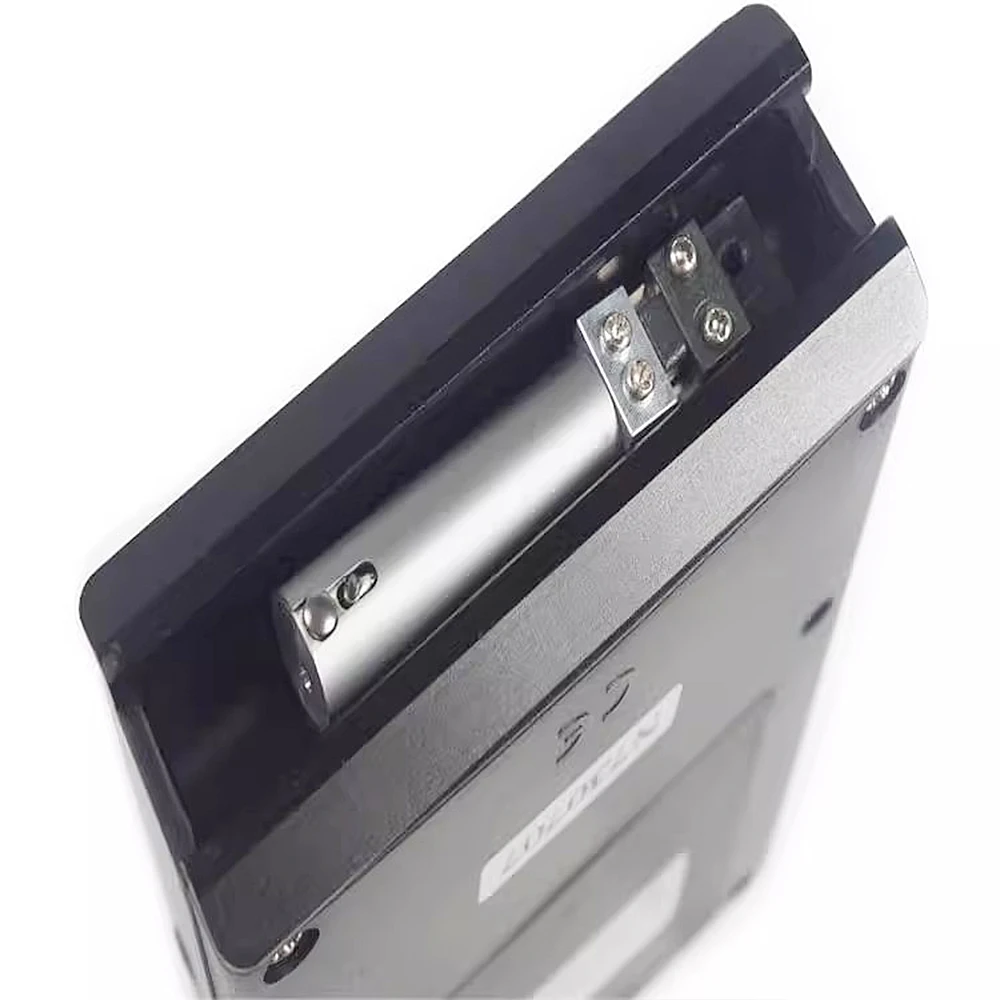

Be compatible with four standards of ISO, DIN, ANSI, and JIS. When measuring the roughness of a surface, the sensor is placed on the surface and then uniformly slides along the surface by driving the mechanism inside the tester. The sensor gets the surface roughness by the sharp built-in probe. This roughness causes displacement of the probe, which results in a change of inductive amount of induction coils so as to generate an analogue signal, which is in proportion to the surface roughness at the output end of the phase-sensitive rectifier. The exclusive DSP processes and calculates and then outputs the measurement results on LCD.

Applications

Widely used in production sites to measure surface roughness of various machinery-processed parts, calculate corresponding parameters according to selected measuring conditions, and clearly display all measurement parameters.

Features

• Multiple parameter measurement: Ra, Rz.
• Highly sophisticated inductance sensor
• Small in size, light in weight, and easy to use
• Manual or automatic shut down
• Metric / Imperial Conversion
• Use “USB data output” and “RS-232 data output” to connect with PC
• Provide “Bluetooth™ data output” choice

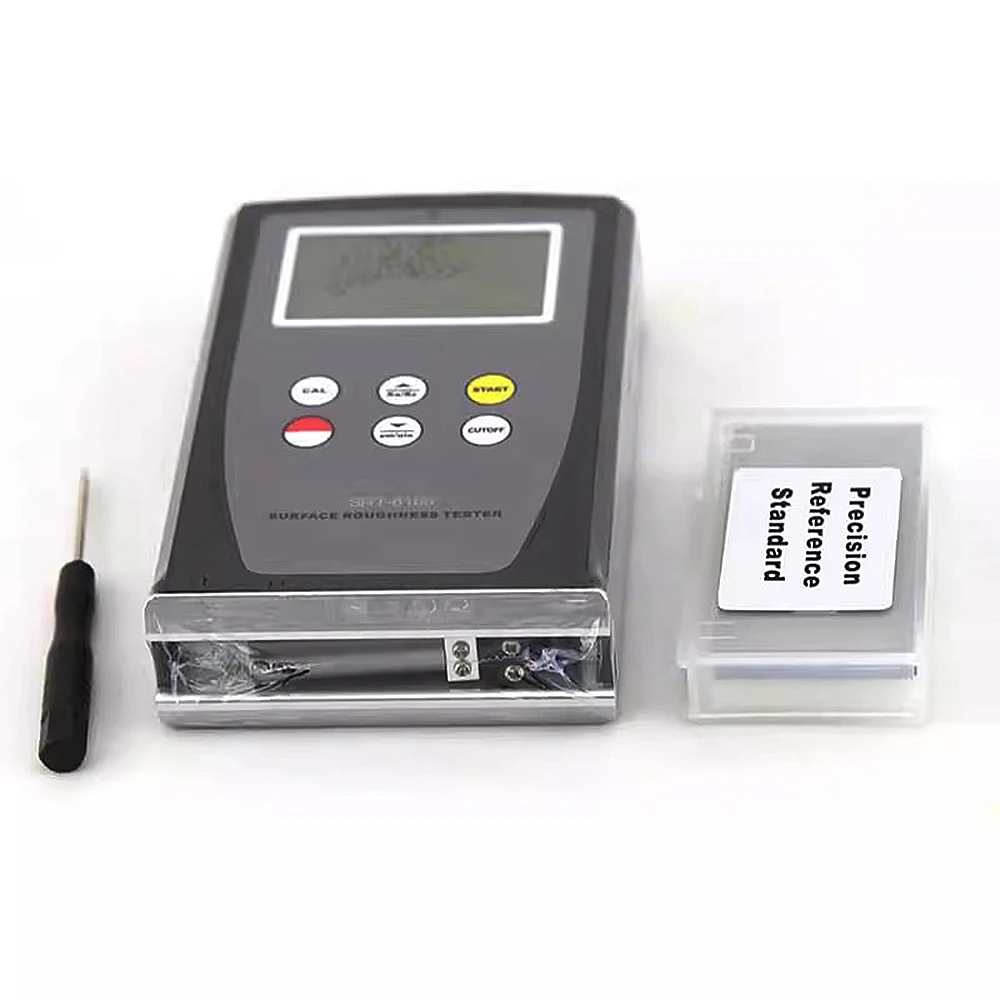

Optional Accessories

• USB, RS-232C data cable with software
• Bluetooth data output with software
