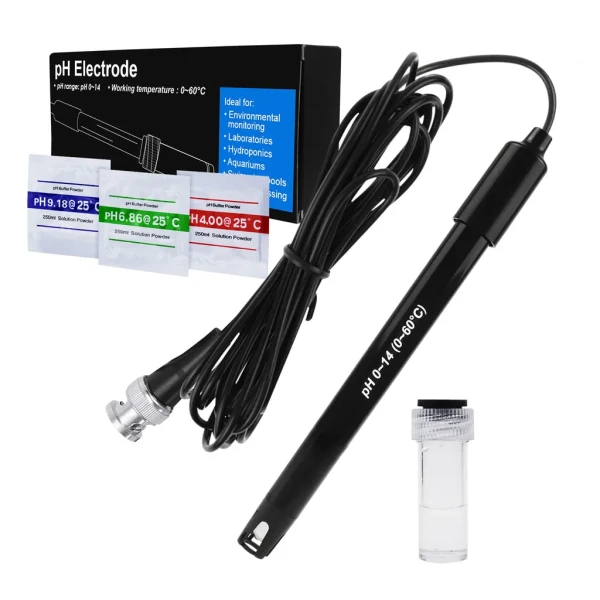

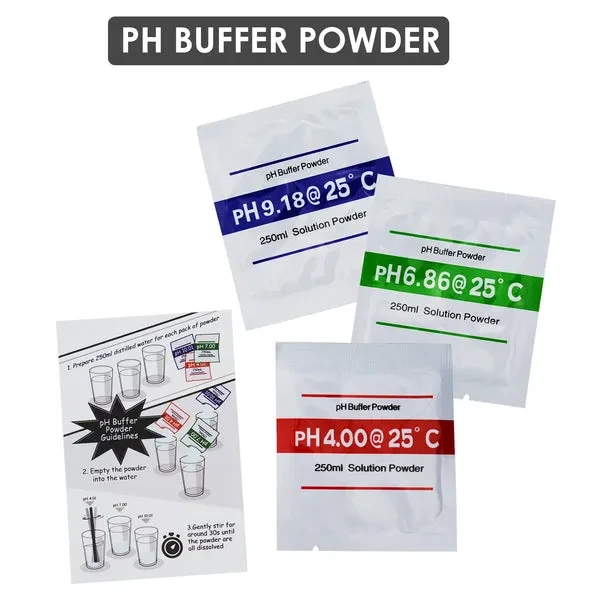

High Accuracy pH Electrode with Calibration Powder (0-14 pH)

High Accuracy pH Electrode with Calibration Powder (0-14 pH)

This high-precision pH electrode is a combination electrode, integrating a pH measuring element with a silver chloride reference electrode for accurate pH value measurement in liquids. Featuring a BNC type socket and an extended 300cm long cable, this electrode allows for direct connection to your pH meter, pH controller, or any pH device equipped with a BNC input terminal. The replaceable design ensures you can re-use your meter portion indefinitely, making it a cost-effective choice for various applications.

Features

• Long cable replacement pH electrode for flexibility in measurements
• 50 Ohm BNC type connector for reliable connectivity

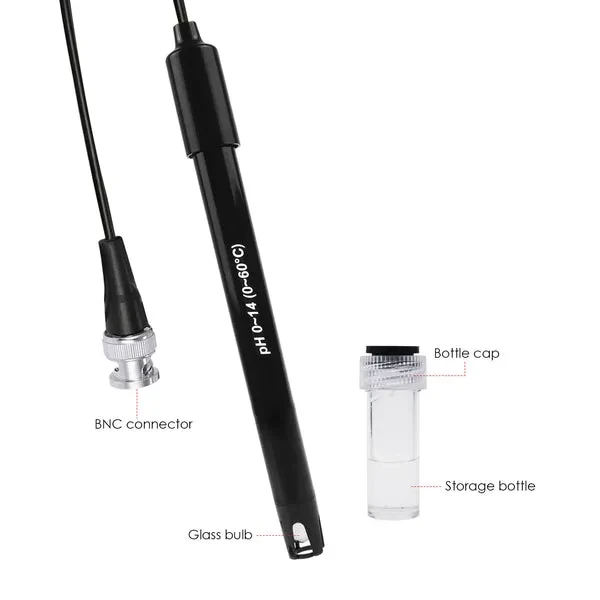

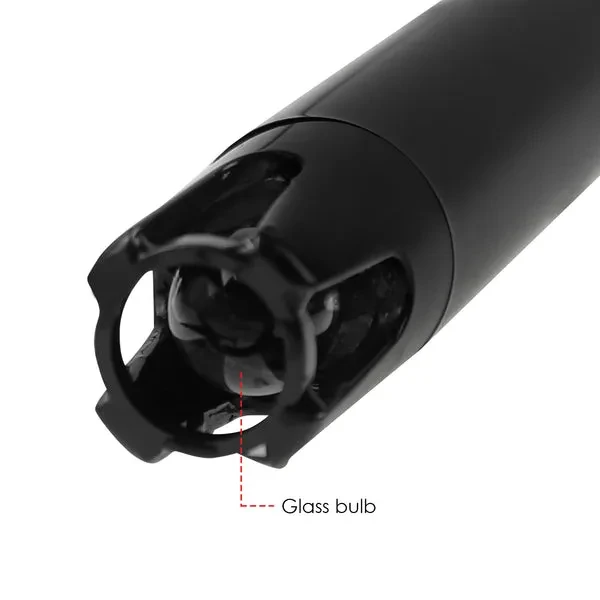

• Durable glass bulb for accurate pH readings
• Easy calibration using your pH measuring device

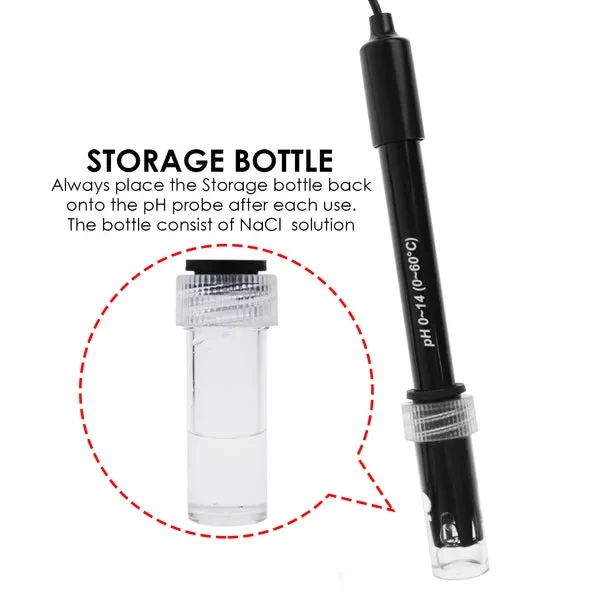

• Comes with a protective cap for safe storage

Specifications

• Sensor Type: General-purpose combination pH electrode

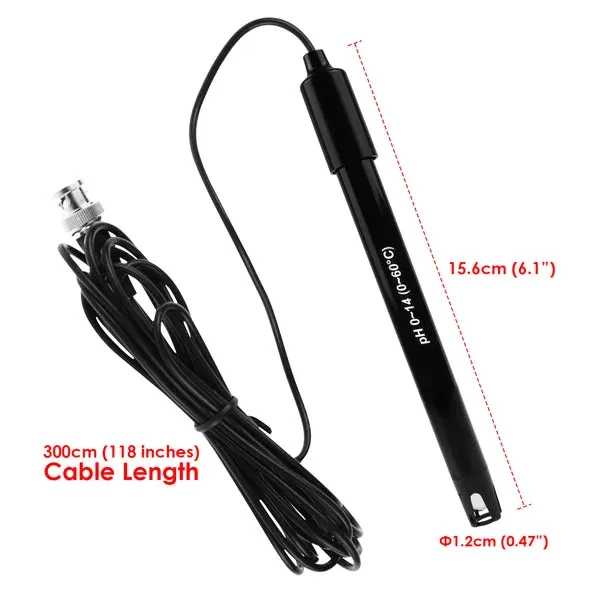

• Dimensions: Φ12*156mm
• Construction Material: Polymer housing and glass bulb
• pH Range: 0~14pH
• Working Temperature: 0~60°C (32~140°F)
• Zero Potential: 7.0 ±0.5pH (under 25°C / 77°F)
• Percentage of Slope: ≥ 98% (under 25°C / 77°F)
• Internal Resistance: ≤ 250 MΩ (under 25°C / 77°F)
• Alkaline Error: < 15 mV
• Response Time: < 2 mins
• Repeatability: < 0.017
• Noise: < 0.5 mV

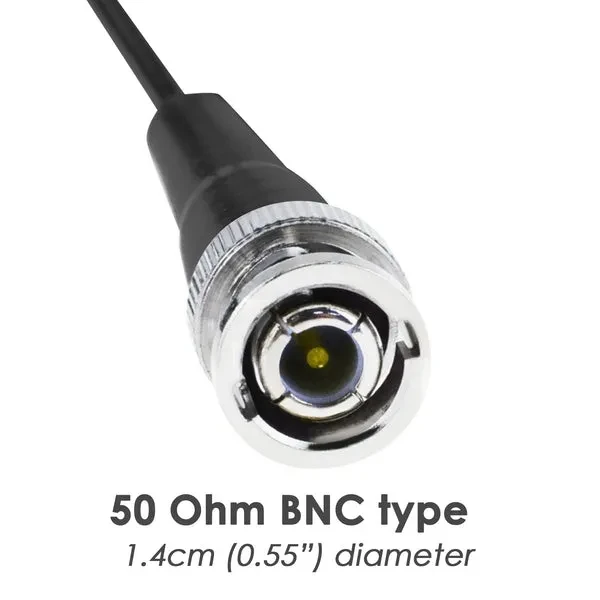

• Connection: 50 Ohm BNC with fixed cable
• Cable Length: 300 cm (118″)
