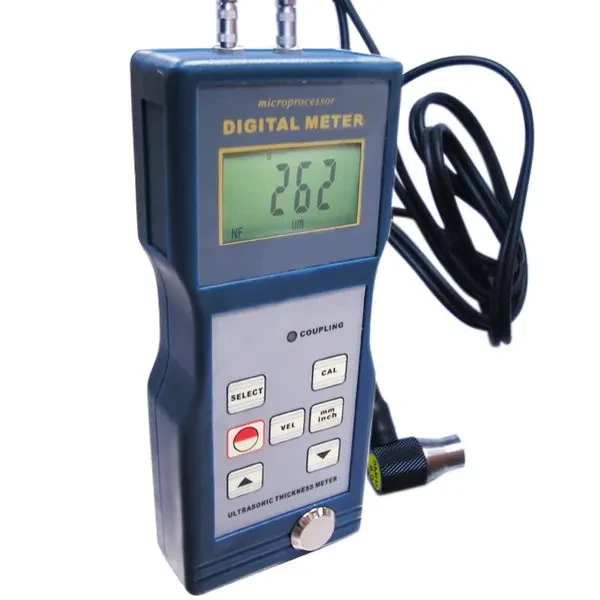

Digital Ultrasonic Thickness Gauge Meter (1.5 – 200mm)

This advanced thickness meter features the latest improvements, including automatic power off, instant millimeter (mm) to inch (in) conversion, and enhanced accuracy. Despite its complex and advanced technology, it’s designed for easy operation. Utilizing a Microcomputer LSI circuit and crystal time base, it ensures high measurement accuracy and fast results. The meter allows for velocity shifts in 10 m/s and 100 m/s increments and measures various materials using its sonic velocity capability. It carries the CE marking, certifying compliance with essential health and safety standards set by the European Directives, ensuring safe usage.

Ideal for measuring thickness and corrosion in pressure vessels, chemical equipment, boilers, oil storage tanks, and industries such as petroleum, shipbuilding, power stations, and machine manufacturing. It can accurately measure hard materials like steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron without damaging the object or removing any coating.

Features

• Offers 2 years warranty
• Uses Microcomputer LSI circuit and crystal time base for high accuracy and fast measuring time
• Wide measuring range of 1.5mm to 200mm with high resolution and low battery indicator

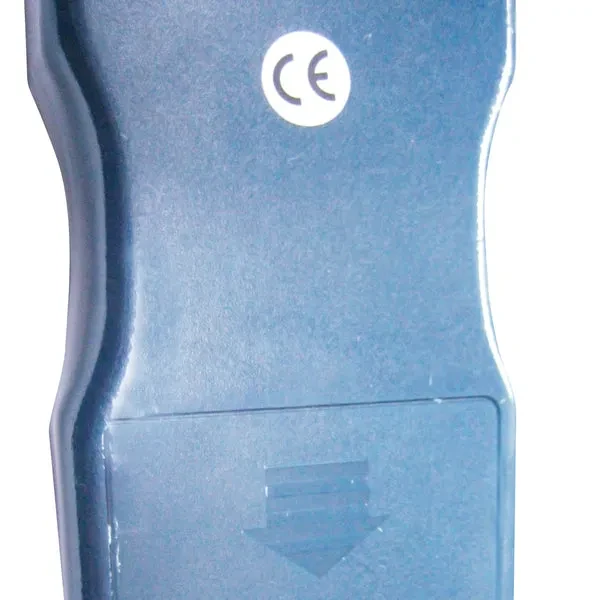

• CE marking ensures compliance with European health and safety standards
• High power emission and broad receiving sensitivity for measuring rough surfaces and cast iron
• Measures a variety of materials including steel, cast iron, aluminum, red copper, brass, zinc, quartz glass, polyethylene, PVC, gray cast iron, and nodular cast iron
• Automatic power off after about 2 minutes of inactivity

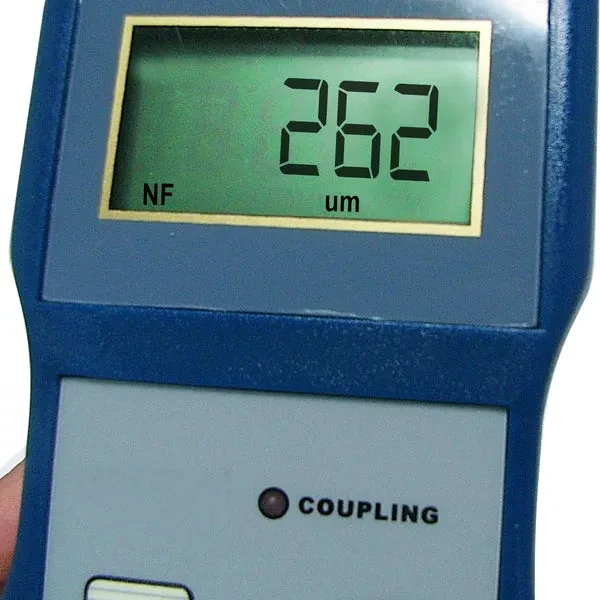

• Instant results clearly shown on an easy-to-read LCD screen with no guessing or errors
• Includes a free protective carrying case with contoured rubber compartments for optimal shock absorption
• Approved by strict quality and safety standards for durability and trouble-free life

Specifications

• Operating Principle: Ultrasonic

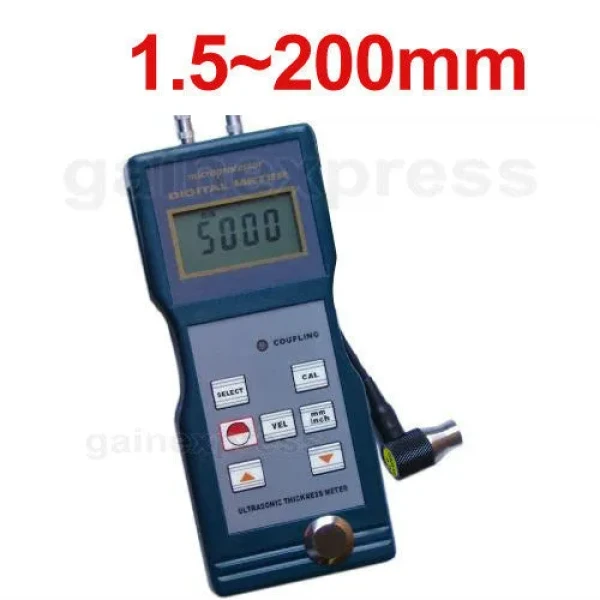

• Measuring Range: 1.5~200mm, 0.06-7.87inch (45# steel)
• Resolution: 0.1mm / 0.001inch
• Accuracy: ±(0.5%n+0.1)
• Sound Velocity: 500 – 9000 m/s
• Operating Temperature: 0°C-50°C (32°F-122°F)
• Operating Humidity: Less than 80% RH
• Display: 4 digits, 10mm LCD
• Power Supply: 4 x 1.5V AA battery (not included)
• Size: 160 x 68 x 32mm (6.3 x 2.68 x 1.26in)
• Weight: About 208g

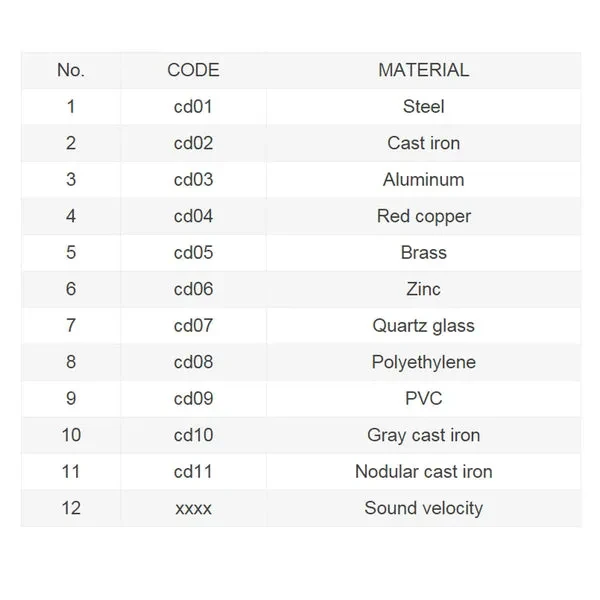

Material Selection
