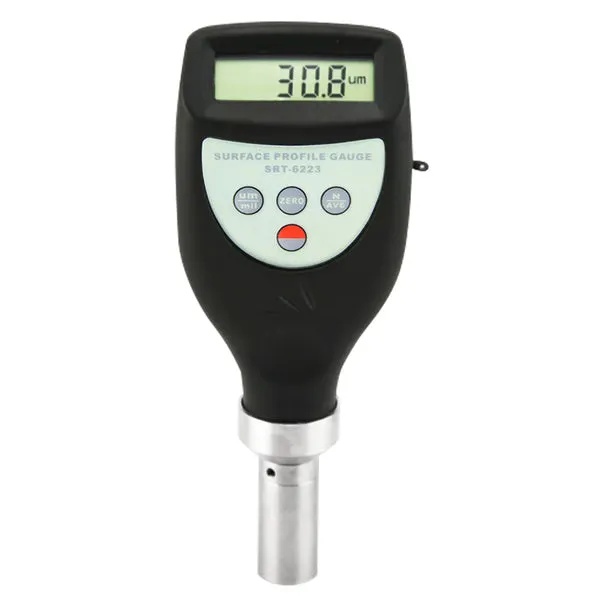

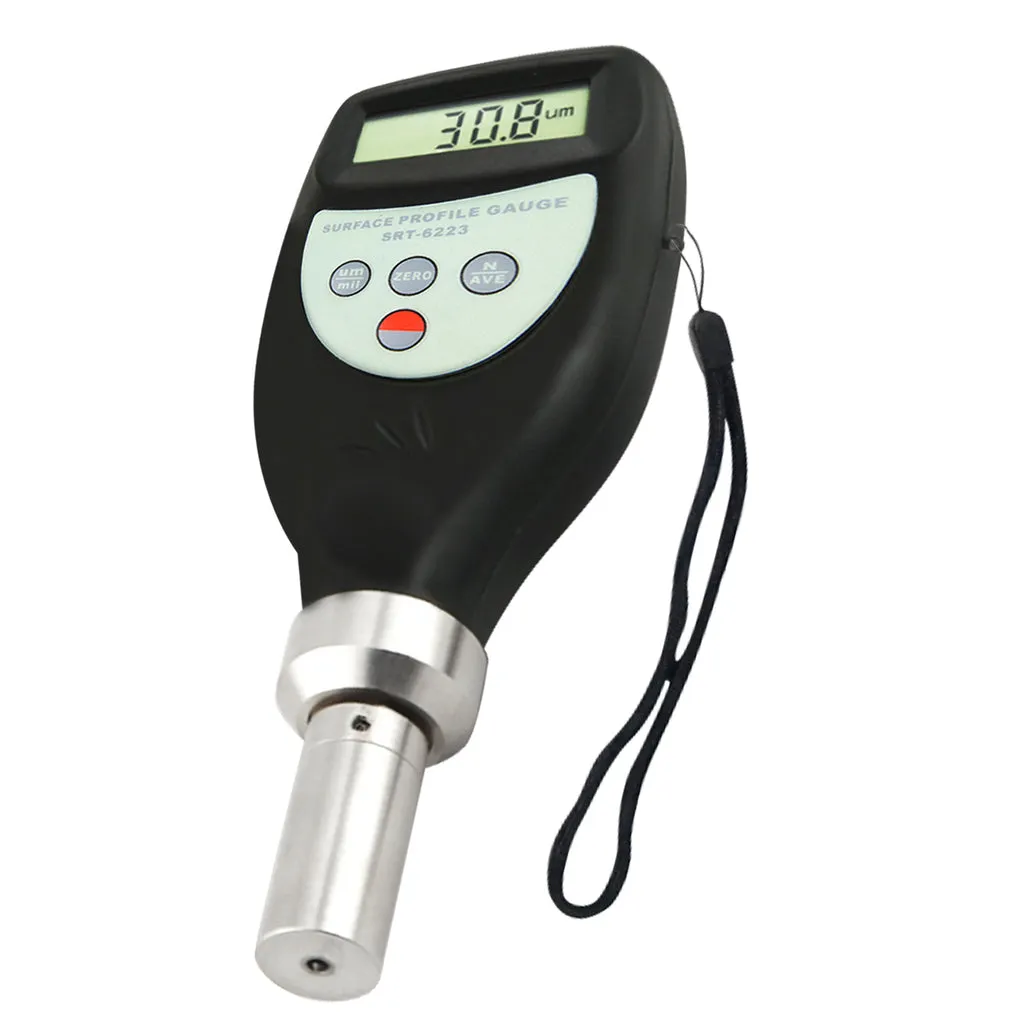

Digital Surface Gauge with Roughness Tester (0~800 μm Range)

The Digital Surface Profile Gauge is designed to measure the profile height of surfaces, a crucial factor in determining a coating’s performance, adhesion, coverage, and overall volume used. This versatile gauge is widely employed in production settings to assess the surface roughness of various machinery-processed parts, providing accurate readings and essential data for quality control.

Applications

• Used in production sites to measure surface roughness of various machinery-processed parts
• Calculates corresponding parameters based on selected measuring conditions
• Displays all measurement parameters clearly for easy analysis

User-Friendly Features

• USB/RS-232 data output for easy PC connectivity
• 4-digit display for clear and precise readings
• Lightweight and portable design
• Manual or automatic shutdown function

Accuracy Features

• Measurement Range: 0 µm to 800 µm (0 mils to 30 mils)
• Accuracy: ±5% or ±5 µm, whichever is greater
• Metric/Imperial conversion for versatile use
• Average calculation function for enhanced precision
• Complies with standards including ASTMD-4417-B, IMO MSC.215(82), SANS 5772, US Navy NSI 009-32, and US Navy PPI-63101-000
• Durable tungsten carbide tip, lasting up to 20,000 readings and user-replaceable

Specifications

• Display: 4 digits, LCD
• Range: 0 µm to 800 µm (0 mils to 30 mils)
• Accuracy: ±5% or ±5 µm, whichever is greater
• Resolution: 1 µm (0.1 mils)
• Metric/Imperial: Switchable
• PC Interface: RS232C
• Measurement Speed: >30 readings per minute
• Weight: 280 g
• Dimensions: 162 x 65 x 28 mm (6.4 x 2.6 x 1.1 inches)
• Operating Temperature: 0°C to 50°C, <80% RH
• Case Material: High impact ABS
• Power Supply: 4 x 1.5V (AAA) batteries
