Digital Protractor Angle Finder Level/Inclinometer with Magnetic Base

Digital Protractor Angle Finder Level/Inclinometer with Magnetic Base

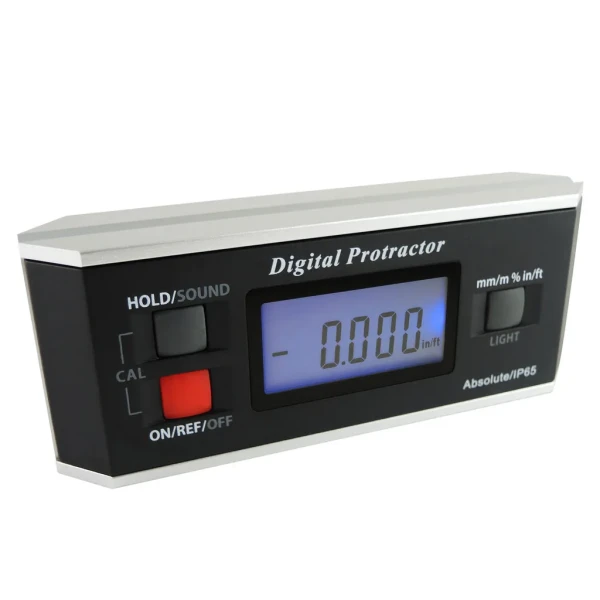

This Digital Protractor employs advanced angle sensor technology to accurately calculate angles simply by tilting it to the desired position. The LCD display shows readings in an upright position, regardless of the angle. It measures angles within a range of 4 x 90° (0~360°) and features Absolute Angle Measurement, allowing you to test whether a working surface is level, making it ideal for checking roof slopes, wheel alignment, and more. The device is designed for simple self-calibration, requiring no additional fixtures.

In addition to measuring angles, this tool can convert readings to various units: degrees (°), mm/m, percent slope (%), and pitch (in/ft). The backlight function enables easy reading and working in dark environments, making it compact and portable for various applications.

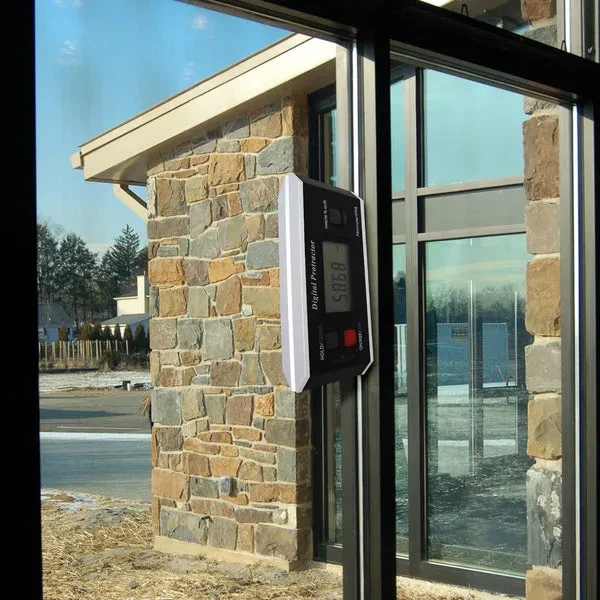

Applications:

• Automotive:
  • Drive line measurement
  • Race car wing & chassis adjustment
  • Wheel alignment
  • Frame straightening
• Industrial:
  • Machine tool setup
  • Lathe and mill alignment
  • Quality assurance verification
• Medical:
  • Range of motion measurement
  • Drive shaft alignment
• Setup of precision machines
• Road or rail-track layout
• Satellite or aerial alignment
• Drainage angles and run-off slopes
• Tool setting on lathes
• Setting blade angles for circular and miter saws
• Setting workpiece angles for milling
• Grader and tractor work alignment
• Platform monitoring
• Suitable for building wood and metalwork projects
• Creating straight edges when assembling furniture
• Ensuring wallpaper and cornices are level for decoration
• Measuring and adjusting alignment of sliding carriages and extension tables
• Checking drill press table settings, table saws, jointer tables, band saws, and jointer fences
• Favored by cabinetmakers and furniture workshops for setting up machinery

Features:

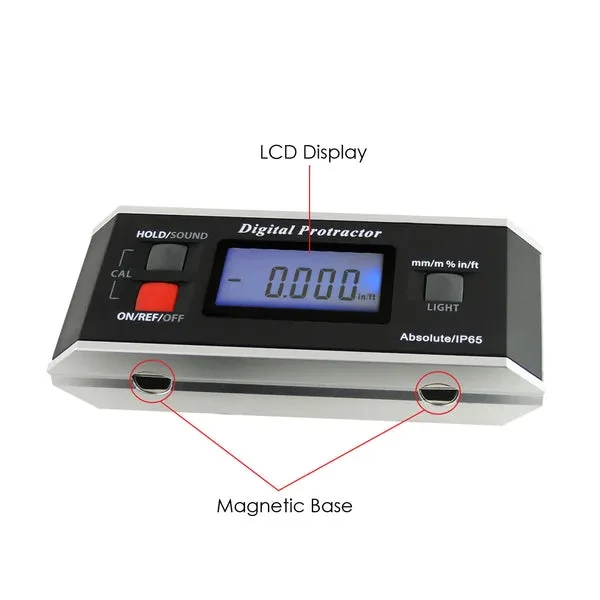

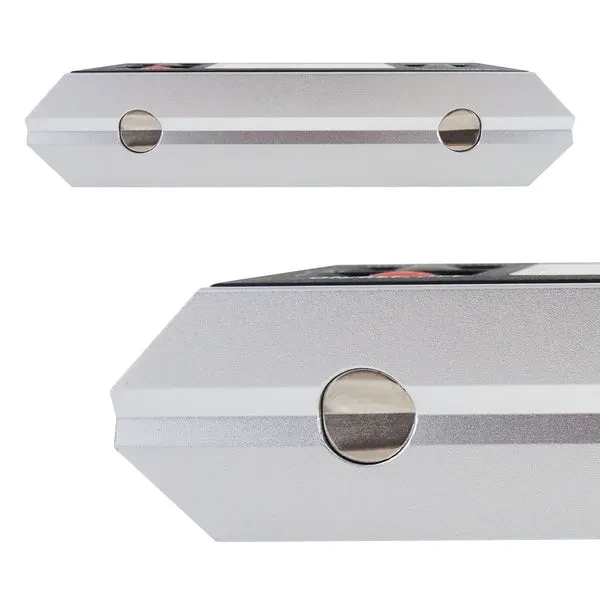

• V-groove base plate with strong built-in magnets
• Full range 360° measurement for horizontal and vertical planes
• Dynamic measuring tool: Angle Finder, Protractor, and Level
• Beeper/sound function that can be activated
• Converts angles to different units: degrees (°), mm/m, percent slope (%), and pitch (in/ft)
• Measuring range of 4 x 90°
• Backlight function for use in dark areas

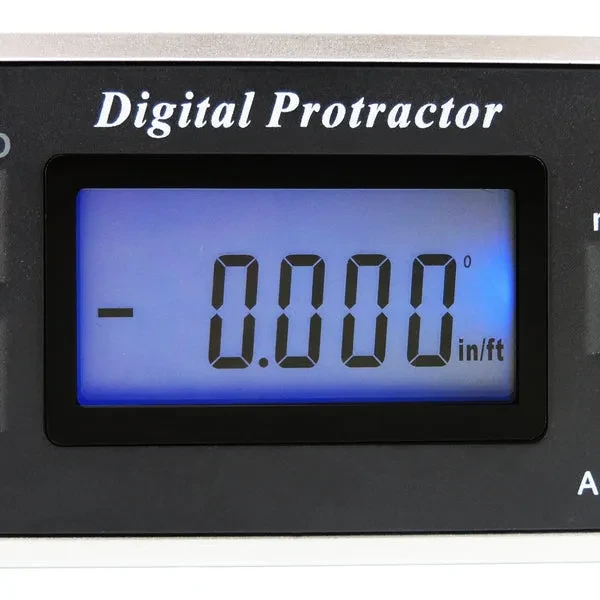

• Display remains upright for easy viewing at all angles
• Fast and accurate measurements
• Factory calibrated
• Compact and portable design
• Absolute and relative measurement conversion
• Powered by 1.5V or AAA alkaline battery, lasting up to 2000 hours of continuous use (included)
• CE, RoHS, and PAHS markings

Specifications:

• Measuring Range: 4 x 90°, mm/m: 1000mm/m, %: 100%, in/ft: 12in/ft
• Accuracy: 0° and 90° ≤0.1°, the rest ≤0.2°
• Resolution: 0.05°
• Working Temperature: 32 ~ 104°F (0 ~ 40°C)
• Working Humidity: ≤85%
• Protection Grade: IP65

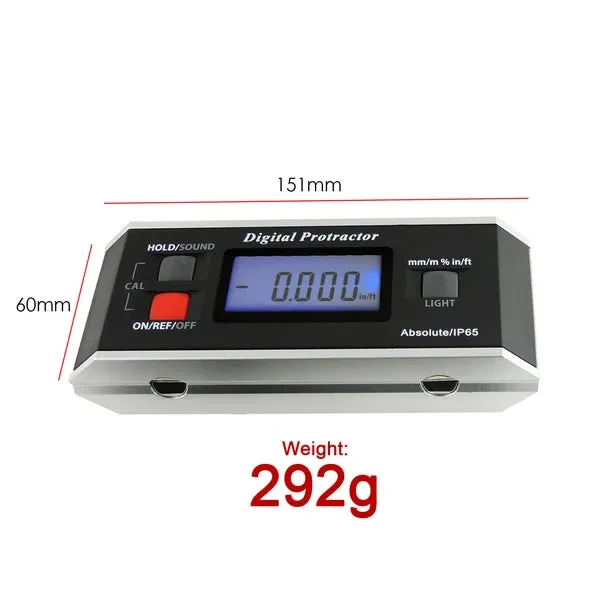

• Dimensions: approx. 151 x 60 x 32mm
• Weight: approx. 292g

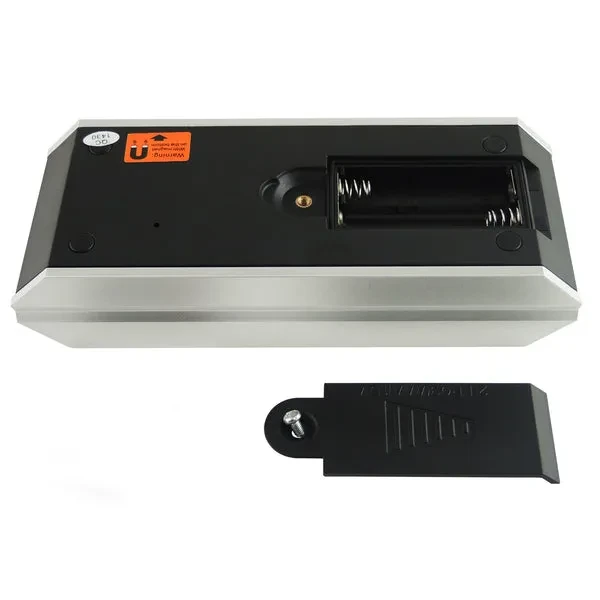

• Power Supply: 2 x AAA alkaline batteries (included)
