Digital Insulation Tester Resistance Meter (250V / 500V / 1000V)
Availability:
In stock
$152.36 $267.12
In stock
This portable Insulation Resistance Tester is designed to help prevent hazards such as electric shock and short-circuits. Insulation in electrical devices, parts, and equipment used in industrial plants degrades over long periods of use. This instrument will help ensure maintenance and safety in homes, schools, buildings, factories, and more.
Application
Suitable for measuring electrical machinery, cable, electromechanical equipment, telecom equipment, electric power facilities, and other insulation resistance.
Features
- Insulation Resistance Measurement
- Alternating Current (AC) Measurement
- Direct Current (DC) Measurement
- Small Resistance Measurement
- Can also measure electric supply
- Wide measuring range
- Backlight display
- Data HOLD function
- Low battery indicator
- Large screen digital display
- Over-limit Alarm
- Red light and buzzer alarm
- High voltage alarm
Specifications
- Display: 3.5 digit LCD, maximum reading “1999”
- Over-limit Indication: When over measuring range, will only display “1”
- Sampling Rate: About 3 times/second
- Allowable Altitude: ＜2000 meters
- Additional temperature coefficient: 0.15 × specified accuracy/℃ (<18℃ or >28℃)
- Operating Environment: -15℃~55℃, relative humidity <75%RH
- Storage Environment: -40℃~60℃, relative humidity <90%RH
- Overload Protection: 100mA/60V resettable fuse

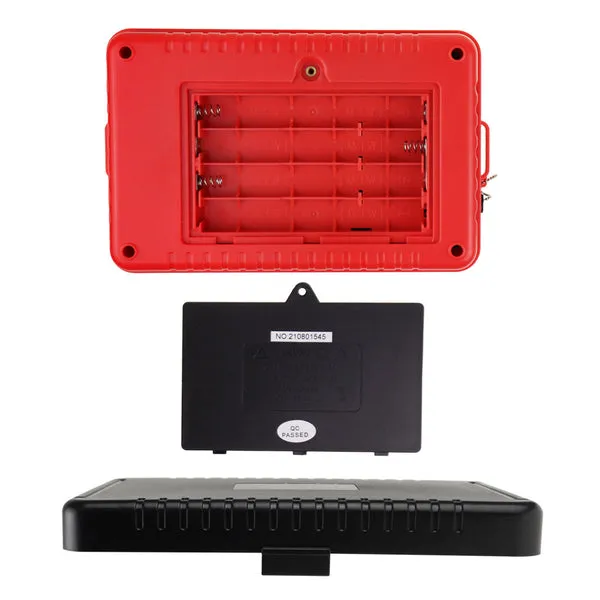

- Power Supply: 6 x 1.5V “AA” batteries
- Current Consumption: No-load power consumption <300mW when testing
- Size: 176 x 110 x 77mm
- Weight: approx. 580g
Technical Specifications
| Function | Measuring Range | Accuracy |
|---|---|---|
| Output Voltage | 250V/500V/1000V | ±10% |
| Test Current | 250V(R=250kΩ)1mA 500V(R=500kΩ)1mA 1000V(R=1MΩ)1mA | ±10% |
| Insulation Resistance | 250V:1MΩ~200MΩ 500V:1MΩ~200MΩ 1000V:10MΩ~2000MΩ | ±(4%±2) |
| Short-circuit Current | <1.8mA | |
| Median Resistance | 250V/500V:100MΩ 1000V:1000MΩ | |
| Resistance, Continuity Test | 0Ω~2KΩ, <50Ω buzzer will make a sound, Test Current:1mA | ±(0.8%±6) |
| DC Voltage Measurement | 0V~1000V | ±(0.5%±6) |
| AC Voltage Measurement | 0V~750V | ±(1%±6) |
| Jack Position | Insulation Resistance E and L Voltage, Resistance V/Ω and G |
