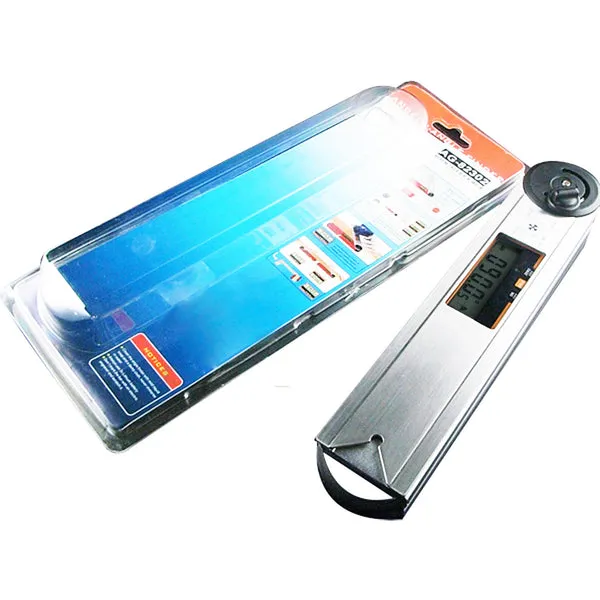

Digital Angle Finder/Protractor Tool with Spirit Level

The Digital Angle Finder/Protractor Tool with Spirit Level is an essential tool for accurately measuring angles and drawing lines. With a built-in Bubble/Spirit Level, it easily measures horizontal levels, and its wide 360° measuring range makes it perfect for various applications. The adjustable pivot leg provides a 225° range of movement, and the display always remains upright for easy reading, no matter how it’s positioned.

Designed for durability, it features a rust-resistant aluminum frame, ensuring longevity even on demanding job sites. The IP54 waterproof rating offers protection from dust and water, making it suitable for tough environments. Easy calibration, zero setting, and data HOLD functions further enhance its usability. The analog quadrant display allows for simpler angle interpretation.

Features & Benefits

• Analog Quadrant Display: Allows for easier deciphering of angle positions.
• ABS Mode: Automatically records the original zero position after power-off and ensures the display remains upright.
• Absolute & Relative Measurements: Switch between absolute and relative measurement modes with a single button press.
• Adjustable Pivot Arm: Provides up to a 225° range of movement, ensuring flexibility for different tasks.
• Low Power Consumption: Ensures long battery life with efficient power usage.
• Durable Aluminum Casing: Lightweight yet sturdy, with rust-resistant properties for long-lasting performance.
• Easy Calibration & Zero Setting: Quick and convenient setup for accurate measurements.
• Waterproof to IP54: Protected against dust and water, suitable for harsh work conditions.

Specifications

• Measuring Range: 0° – 360°
• Resolution: 0.05°
• Accuracy: ±0.1°
• Length: 10 inches
• Waterproof Rating: IP54
• Automatic Shutoff: After 5 minutes of inactivity
• Working Current: <80uA
• Operating Temperature: 5°C – 45°C
• Operating Humidity: <85%RH

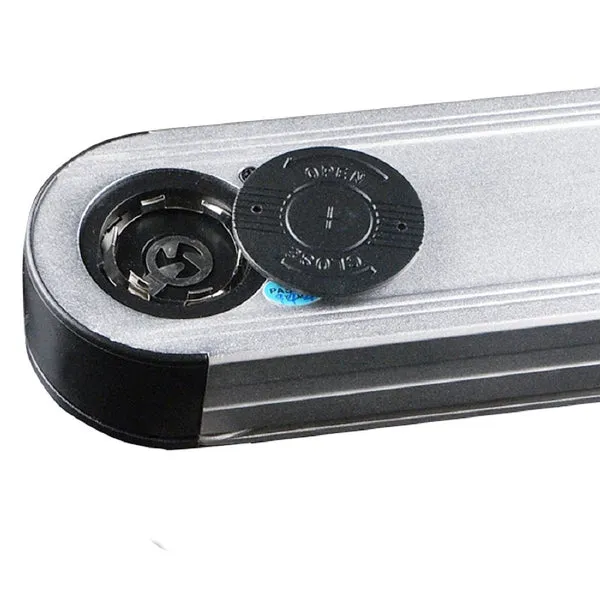

• Battery: 3V CR2032 (included)
• Battery Life: Over 2000 hours of usage
• Dimensions: 1″ x 2″ x 10.5″ (21x50x255mm)
• Item Weight: 407g
• Shipping Weight: 0.450kg
• Shipping Size: 33cm x 13cm x 5cm

The Digital Angle Finder/Protractor Tool is perfect for construction, carpentry, and DIY projects where precision and durability are key.
