Digital 6-in-1 AC Multi-Function Monitor for AC Voltage and Current

Digital 6-in-1 AC Multi-Function Monitor for AC Voltage and Current

This advanced multi-function digital meter provides comprehensive measurements, including AC voltage, AC current, active power, power factor, power frequency, and electric energy. It’s designed for ease of use and high accuracy, making it an essential tool for professionals and DIY enthusiasts alike.

Features

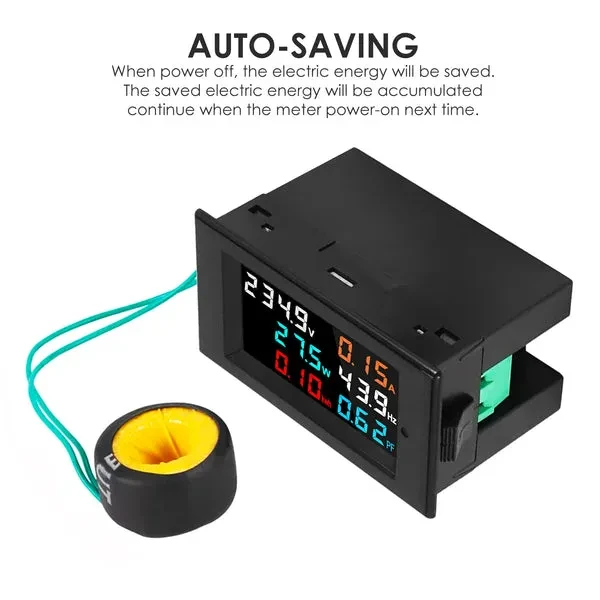

• Auto-saving function preserves data when powered off

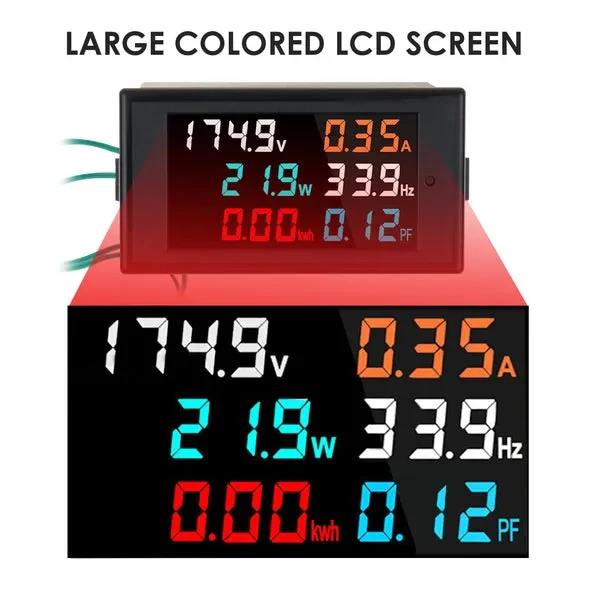

• Large digital colored display for clear visibility
• Multi-function capabilities for versatile monitoring

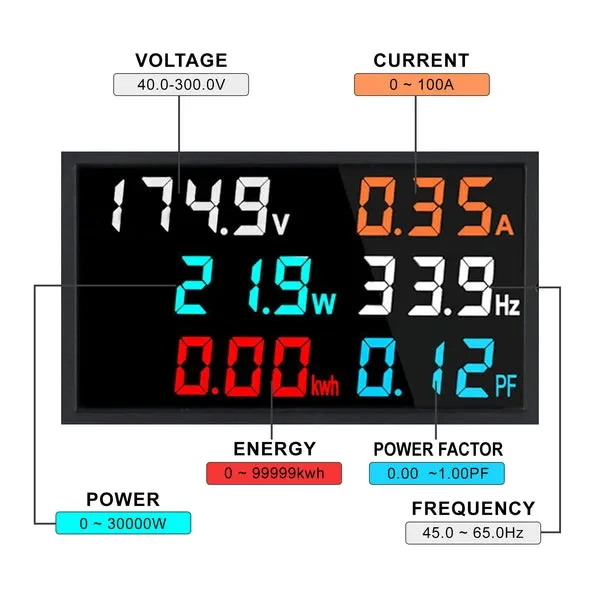

Technical Specifications

• Measuring Range:
  • AC Voltage: 40.0 ~ 300.0 V
  • AC Current: 0 ~ 100.0 A (minimum resolution: 0.01 A)
  • Power Frequency: 45.0 ~ 65.0 Hz
  • Power Factor: 0.00 ~ 1.00 PF
  • Active Power: 0 ~ 30,000 W (accuracy: 0.1 W when power is between 0 and 9999.9 W)
  • Electric Energy: 0 ~ 99,999.9 kWh (accuracy varies: 0.01 kWh for 0 ~ 999.99 kWh, 0.1 kWh for 10,000.0 ~ 99,999.9 kWh, 1 kWh for 100,000.0 ~ 999,999 kWh)
• Accuracy: 1%
• Speed: 2 measurements per second

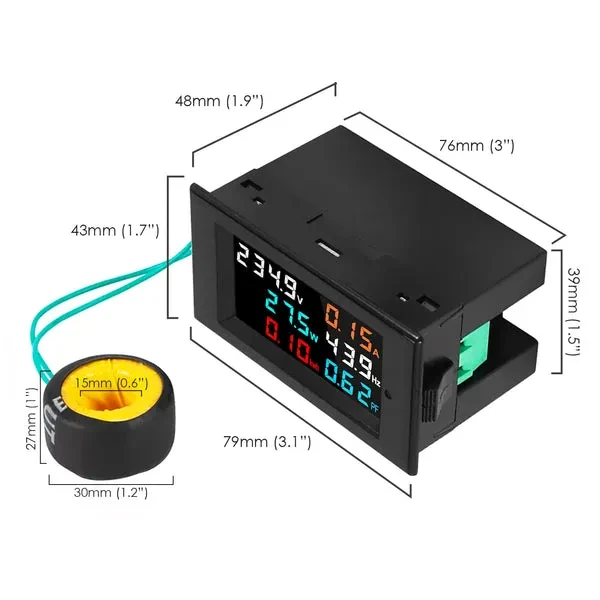

• Size: 79 x 43 x 48 mm
• Auto Saving: Electric energy data is saved and accumulated when power is restored
