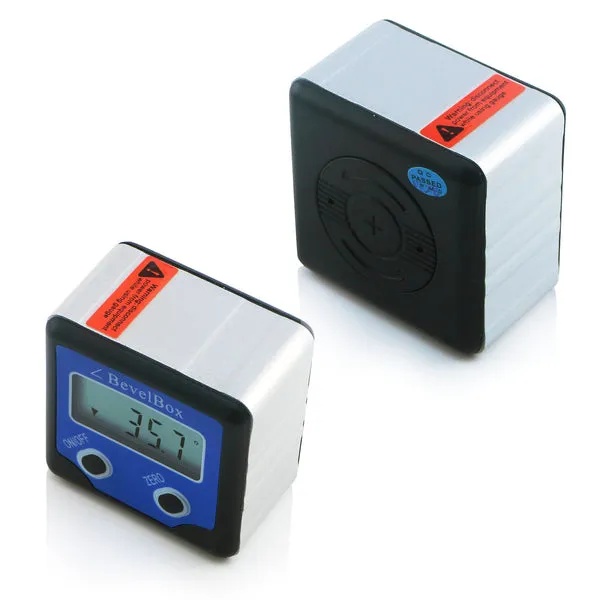

Digital 360° (±180°) Bevel Box/Inclinometer with Magnets

This Digital Bevel Box provides readings between ±180.0° (0~360°) on table saws and other shop equipment instantly. Featuring zero setting to any position and 3 strong disk magnets, it can stick to the surface measured. Placing it to a reference surface zero gives measured results within 0.1° accuracy. Easily measure the bevel angle of a miter saw, examine and repair automobiles, and more with the built-in magnets that securely stick to metal surfaces such as steel tables, fences, planes, bits, saw/blade saw blades, machine tops, and other shop equipment. With care, you can also use it on aluminum or wood.

Applications

• Check drill press table setting, table saw, jointer table, band saw, jointer fence, or band saw table
• Set blade angle of miter saws
• Set blade angle of circular saws
• Tool setting on lathes
• Set workpiece angle for milling
• Drainage angles and runoff slopes
• Grader and tractor work alignment
• Platform monitoring

Features

• Full range ±180° (0-360°) with ±0.1° repeatability
• IP54 waterproof rate
• Zero button calibrates the gauge to any reference surface
• Large & clear readout, great for viewing results even for those with failing eyesight
• Powerful 3 built-in magnets on the base secure the attachment to any magnetic surfaces
• Guaranteed fast & accurate measurement
• Lightweight and portable

Specifications

• Resolution: 0.1°
• Repeatability: ±0.1°
• Measuring range: ±180° (0-360°)
• Waterproof: IP54
• Working current: <100 µA
• Power: 3V CR2032 Lithium battery (included)
• Size: 50 x 50 x 33mm
• Weight: approx. 117g
