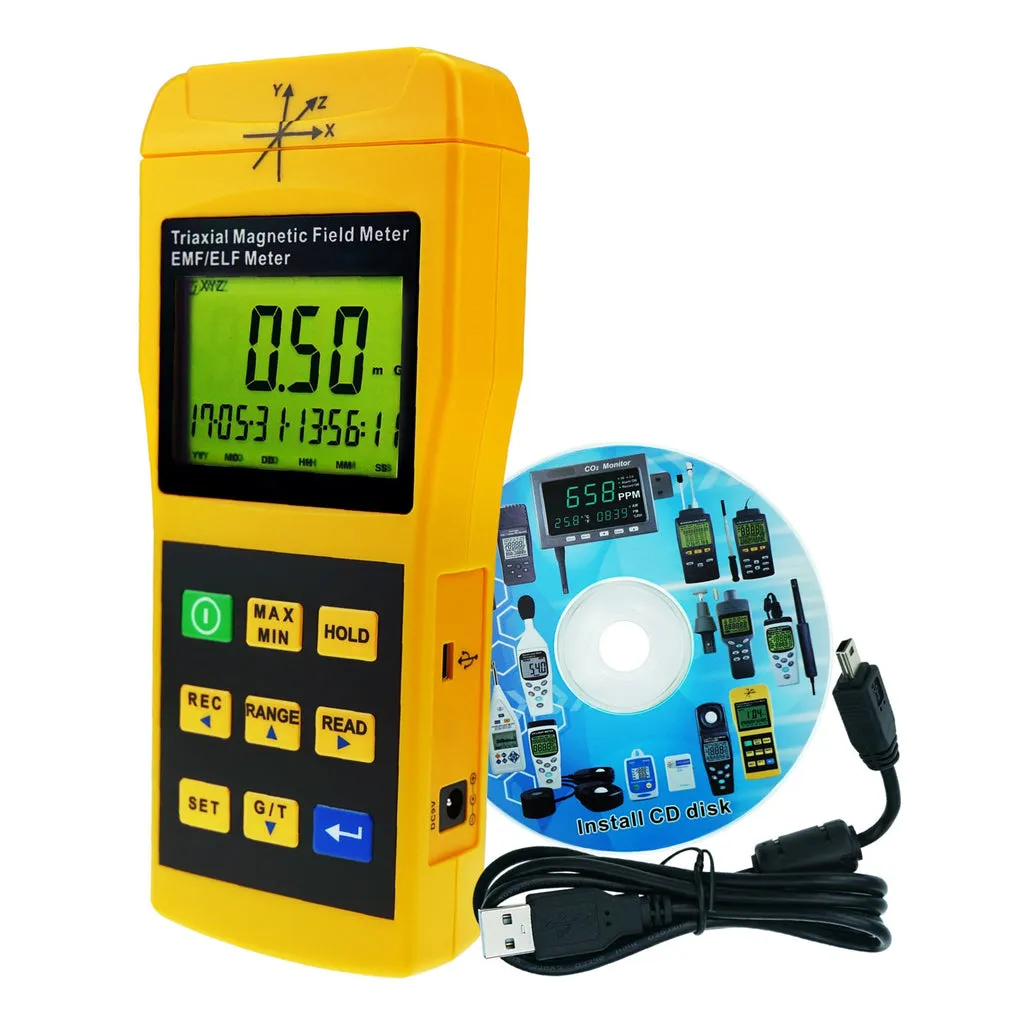

Digital 3-Axis Triaxial Magnetic Field Meter (2000Hz)

Digital 3-Axis Triaxial Magnetic Field Meter (2000Hz)

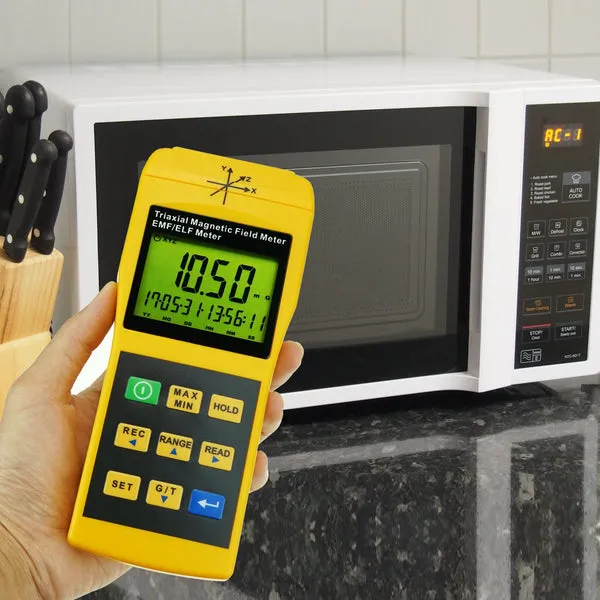

This advanced ELF meter utilizes three internal orthogonal sensors to accurately measure a wide range of electromagnetic fields at extremely low frequencies (ELF) ranging from 30 to 2000Hz. It offers a quick, reliable, and easy method for assessing the intensity of magnetic field radiation generated by electric transmission equipment, power lines, microwave ovens, air conditioners, refrigerators, computer monitors, and audio/video devices, among others.

Features:

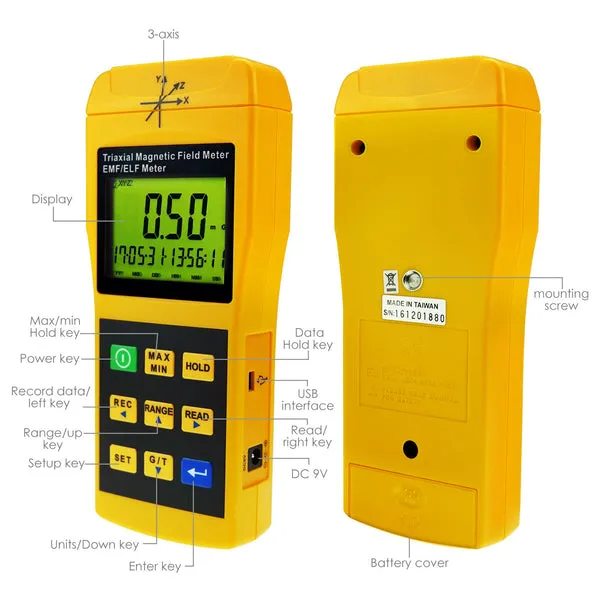

• Displays independent three single-axis (X, Y, Z) magnetic field readings or a tri-axial total magnetic field reading
• Built-in data logging capacity of 9999 data sets
• Functions include Data Hold (HOLD), Maximum Hold (MAX), and Minimum Hold (MIN)
• High quality with CE & ROHS marking and Certificate of Calibration

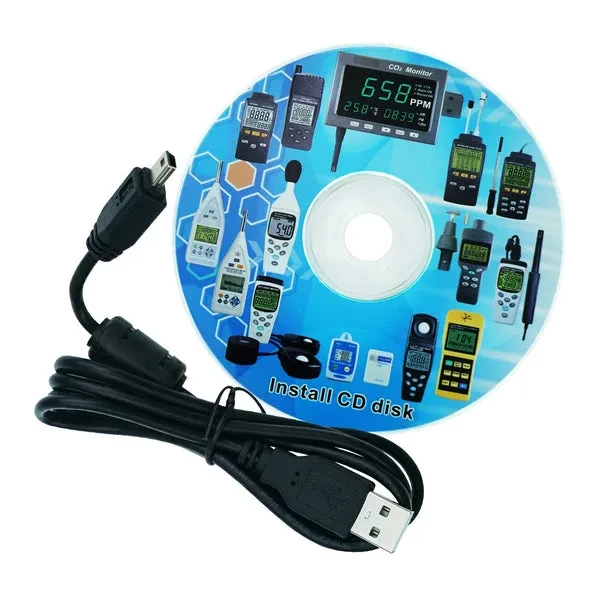

• Includes USB PC interface software to:
• Download EMF records from the meter’s memory
• Set date and time
• Convert data to graph presentations
• Review stored data
• Start logger function to save data files on your computer
• Retrieve records for the selected meter
• Easily delete stored EMF data
• Modify COM port and sampling time interval
• Offers auto range or manual range selection
• Includes time and calendar function
• Low battery indication
• Auto power off feature
• Single data record function

Specifications:

• Continuity Data Logging Interval Range: 0 seconds (no data logging) to 99 hours, 99 minutes, and 99 seconds
• Datalogging Capacity: 9999 data sets

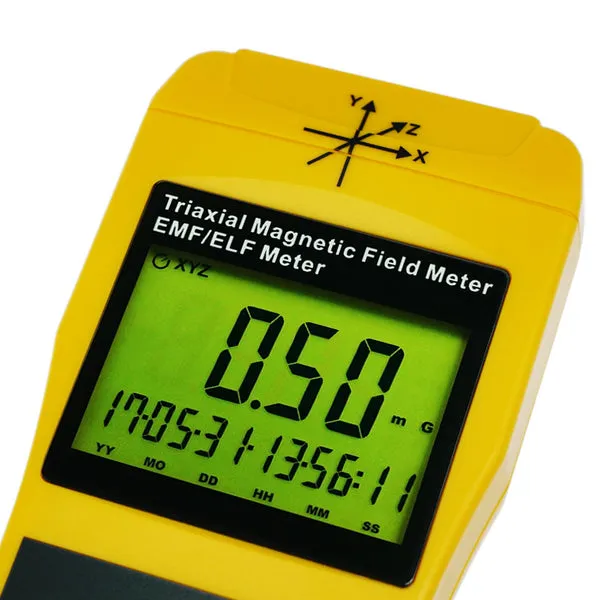

• Display: 4 digits triple LCD display

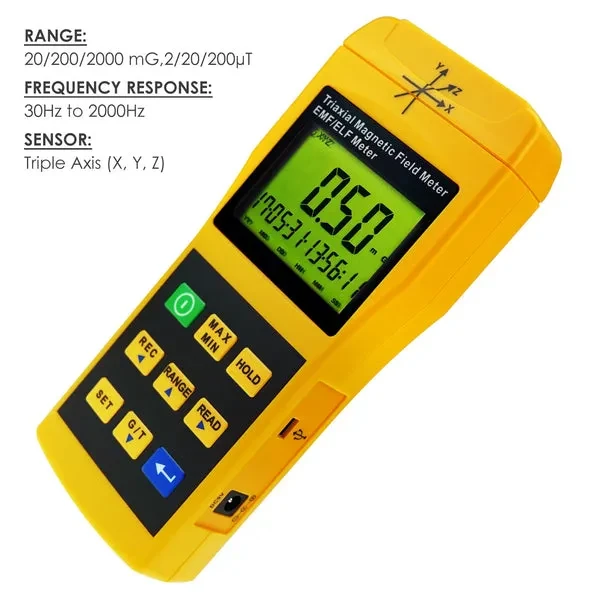

• Range: 20/200/2000 mG, 2/20/200 µT
• Resolution: 0.01/0.1/1 mG or 0.001/0.01/0.1 µT
• Frequency Response: 30Hz ~ 2000Hz
• Sensor: Triple Axis (X, Y, Z)
• Accuracy:
  • 20 mG / 2 μT ±(3.0% + 30 dgt) at 50Hz/60Hz
  • 200 mG / 20 μT and 2000 mG / 200 μT ±(2.5% + 5 dgt) at 50Hz/60Hz
  • ±(5% + 5 dgt) at 30Hz ~ 2000Hz
• Overload: LCD display shows “OL”
• Sample Rate: 2.5 times per second

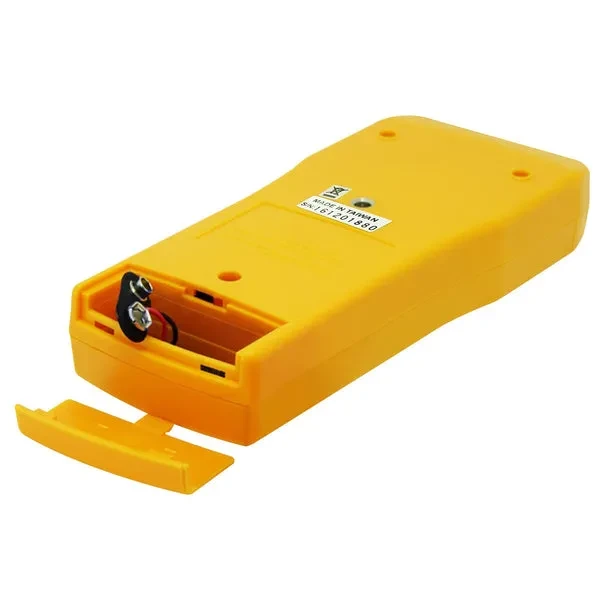

• Power Supply: 1 x 9V battery (included) or external AC to DC adapter (not included)
