Detachable 3.5″ LCD Inspection Camera with 8.2mm Endoscope

The Large 3.5″ Color LCD Video Inspection Camera utilizes advanced optoelectronic technology to investigate hard-to-reach areas. Equipped with a powerful 1W LED flashlight from the renowned CREE brand, this inspection camera allows you to work efficiently even in dark environments. The 5-meter waterproof cable and slim 8.2mm camera head with adjustable high-intensity LEDs enable thorough inspection of areas with small openings, including underwater applications.

Features & Benefits

• High-Definition Video Recording: Capture videos with sound at up to 720p HD, or images at 3 megapixels for detailed diagnostics.
• Large 3.5″ Color LCD Monitor: High-resolution display with a detachable receiver for remote viewing up to 1.5 meters away.
• Zoom & Image Control: 4x digital zoom and 360° image rotation & flip functionality for versatile inspection capabilities.
• Multi-Language Menu: Choose from 7 languages (English, Chinese, French, German, Spanish, Russian, Japanese) for easy operation.
• CREE 1W LED Flashlight: Powerful LED light source ensures bright illumination in dark environments.
• Waterproof IP67 Camera Head: Slim 8.2mm camera head with 6 adjustable LEDs for inspecting hard-to-reach areas, including underwater.
• Data Storage & Playback: Save captured images and videos to a MicroSD card (2GB included, supports up to 32GB) and view them via USB on your computer.
• Durable Construction: Stainless steel shield and reinforced structure offer robust protection for heavy-duty use.

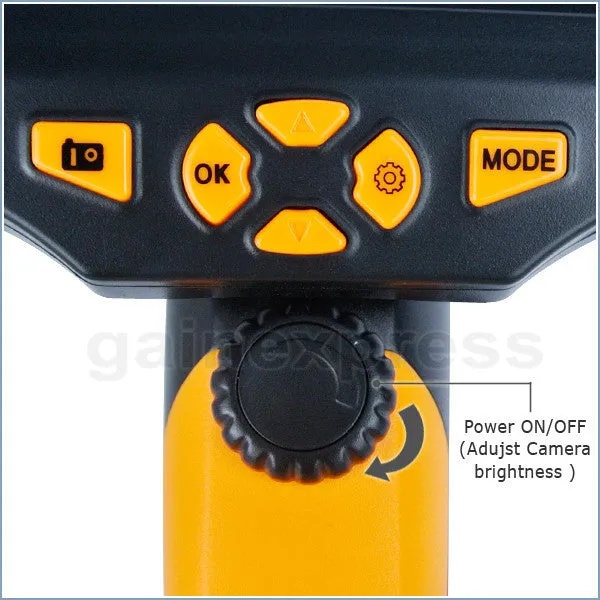

• Ergonomic Design: One-hand operation with adjustable handle for comfortable, stable performance.
• TV Output & Recording Options: Switch between colored and black & white modes for viewing and recording. Supports NTSC & PAL output.

Specifications

• Monitor:
  • Screen Size: 3.5 in. (88.9mm) Color LCD
  • Resolution: 320 x 240 pixels (QVGA)
  • Rotation: 360° image rotation
  • Zoom: 4x digital zoom
  • Video Recording Resolution: 720×480, 1280×720 pixels
  • Image Capturing Resolution: 720×480, 1600×1200, 2048×1536 pixels
  • Menu Languages: English, Chinese, French, German, Spanish, Russian, Japanese
  • Remote Ports: AV-out, USB, TF card slot
  • Data Storage: 2GB MicroSD card included (supports up to 32GB)
• Camera:
  • Camera Head Diameter: 8.2mm
  • Shaft Diameter: 7.6mm
  • Shaft Length: 5 meters (waterproof)
  • Resolution: 300K pixels (VGA)
  • Viewing Angle: 60°
  • Depth of Field: 80mm to infinity (50-80mm recommended for best clarity)
  • Light Source: 6 adjustable high-intensity LEDs
  • Protection: IP67 rated for water and dust resistance
• Other Features:
  • LED Flashlight: 1W CREE LED
  • Operating Temperature: 0° to 45°C (32° to 113°F)
  • Power Source: 4x AA batteries (not included)
  • Max Battery Life: 4-5 hours
  • Weight: 445g (excluding probe)
  • Dimensions (Grip): 260 x 95 x 80mm
  • Certifications: CE, FCC, RoHS

This Large 3.5″ Color LCD Video Inspection Camera is perfect for a wide range of applications including HVAC inspection, automotive maintenance, plumbing, building inspection, and much more.
